Gehäuselüfter - Arctic BioniX P140 - Grey/White - Gehäuselüfter - 140mm - Weiß - 24 dBA - ACFAN00160A
Waren-Nr.: 2829104
ACFAN00160A
ACFAN00160A
ACFAN00160A

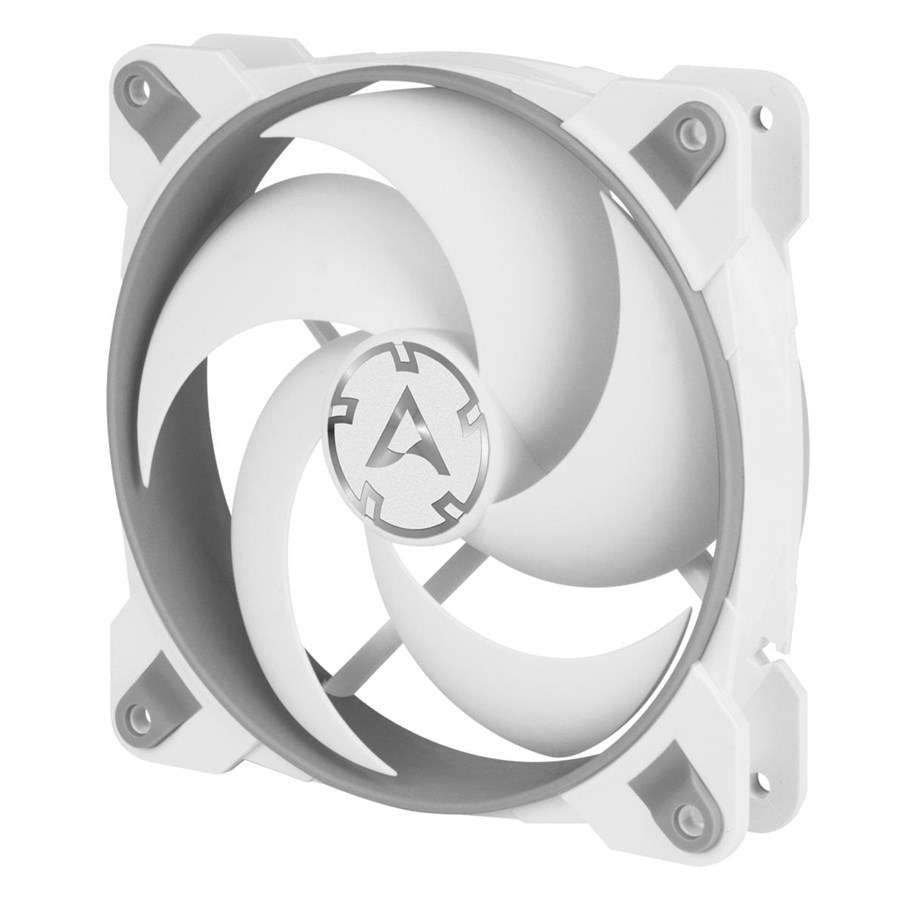

Arctic BioniX P140 - Grey/White - Gehäuselüfter - 140mm - Weiß - 24 dBA

Gehäuselüfter, 140mm x 140mm x 28mm (Höhe x Breite x Tiefe), Geräuschpegel: max 0.45 sone (∼ 24 dBa), Luftstrom max 77.6 CFM, max statischer Luftdruck 2.85 mmH2O, Umdrehungsgeschwindigkeit: 200 - 1950 ±10% RPM, PWM-gesteuert, Lagerart: Fluid Dynamic Bearing (FDB), Mainboard-Anschluss: 4-pins, Farbe: grau / weiß.

16,27 € 13,67 € exkl. MwSt.
Günstigste Versandoption 2,99 €
Verfügbar - 3-5 Werktage Lieferzeit

Optimised for Static Pressure
During the development of the new BioniX P140, special emphasis was placed on a focused airstream and thus a high static pressure. The fan guarantees extremely efficient cooling, even with increased air resistance. Therefore, the BioniX P140 is particularly suitable for use on heatsinks and radiators.

More Efficient Technology
The motor is powered by a Neodym-Iron-Boron-Magnet ring of the newest generation, which allows the new BioniX P140 to run much more efficiently than its predecessors. This saves energy and lowers the coil temperature without comprimising the performance.

Maximum Quietness, Minimum Vibration
Even at low speeds the operating sound of the new ARCTIC motor is barely noticeable. Due to a sinus-magnetizing the new motor only creates about 5 % of the vibration from commutation of a regular DC-motor without filter. Consequently, there is no need for rubber spacers due to the steady and smooth torque of the new motor.

Extended Life Span
A 10° C lower motor temperature roughly doubles the life span of a fan. The new ARCTIC motor has a four times longer service life through its low coil temperature.

High Quality Bearing
Thanks to an alloy/lubricant combination developed in Germany, friction within the bearing is reduced and greater efficiency is achieved. As a result, there is less heat development as well as less bearing noise, which means you can enjoy a longer service life from your fan.

Hersteller
Waren-Nr.
2829104
Modell
ACFAN00160A
EAN
4895213702331
Empfohlene Platzierung
Computergehäuse
Typ
Ventilator
Lüfterdurchmesser
14 cm
Unterstützte Prozessorsteckplätze
Nicht unterstützt
Kompatible Prozessoren
Nicht unterstützt
Rotationsgeschwindigkeit (min.)
200 RPM
Rotationsgeschwindigkeit (max.)
1950 RPM
Geräuschpegel
0,45 Sone
Maximaler Luftstrom
77,6 cfm
Luftstrom
131,92 m³/h
Maximum Luftdruck
2,85 mmH2O
Unterstützung der Pulsweitenmodulation
Ja
Lagertyp
Fluiddynamisches Lager (FDB)
Produktfarbe
Grau, Weiß
Anzahl Lüfter
1 Lüfter
Anzahl der Ventilatorflügel
5
Ventilator-Anschluss
4-pin + 4-pin
Stromverbrauch (Standardbetrieb)
1,8 W
Spannung
12 V
Nennstrom
0,15 A
Breite
140 mm
Tiefe
28 mm
Höhe
140 mm
Gewicht
181 g
Kabellänge
0,4 m
Verpackungsbreite
148 mm
Verpackungstiefe
35 mm
Verpackungshöhe
148 mm
Paketgewicht
230 g
Verpackungsart
Box
Schrauben enthalten
Ja
Anzahl von Schrauben
4
Befestigungslochabmessungen
125 x 125 mm
Ursprungsland
China
Warentarifnummer (HS)
84733080

Leistungen

Empfohlene Platzierung
Computergehäuse
Typ
Ventilator
Lüfterdurchmesser
14 cm
Unterstützte Prozessorsteckplätze
Nicht unterstützt
Kompatible Prozessoren
Nicht unterstützt
Rotationsgeschwindigkeit (min.)
200 RPM
Rotationsgeschwindigkeit (max.)
1950 RPM
Geräuschpegel
0,45 Sone
Maximaler Luftstrom
77,6 cfm
Luftstrom
131,92 m³/h
Maximum Luftdruck
2,85 mmH2O
Unterstützung der Pulsweitenmodulation
Ja
Lagertyp
Fluiddynamisches Lager (FDB)

Design

Produktfarbe
Grau, Weiß
Anzahl Lüfter
1 Lüfter
Anzahl der Ventilatorflügel
5
Ventilator-Anschluss
4-pin + 4-pin

Energie

Stromverbrauch (Standardbetrieb)
1,8 W
Spannung
12 V
Nennstrom
0,15 A

Gewicht und Abmessungen

Breite
140 mm
Tiefe
28 mm
Höhe
140 mm
Gewicht
181 g
Kabellänge
0,4 m
Verpackungsbreite
148 mm
Verpackungstiefe
35 mm
Verpackungshöhe
148 mm
Paketgewicht
230 g

Lieferumfang

Verpackungsart
Box
Schrauben enthalten
Ja
Anzahl von Schrauben
4

Sonstige Funktionen

Befestigungslochabmessungen
125 x 125 mm
Ursprungsland
China

Logistikdaten

Warentarifnummer (HS)
84733080

Die oben gennanten Informationen/Spezifikationen sind Richtwerte und können ohne vorherige Ankündigung vom Hersteller geändert werden. Die Abbildungen sind nur indikativ und es können Schreibfehler vorkommen. Bitte beachten: Deutsche Bedienungsanleitung nicht im Lieferumfang enthalten. Einige Texte wurden möglicherweise automatisch erstellt oder maschinell übersetzt und können daher irreführend sein.
