Waren-Nr.: 3224871

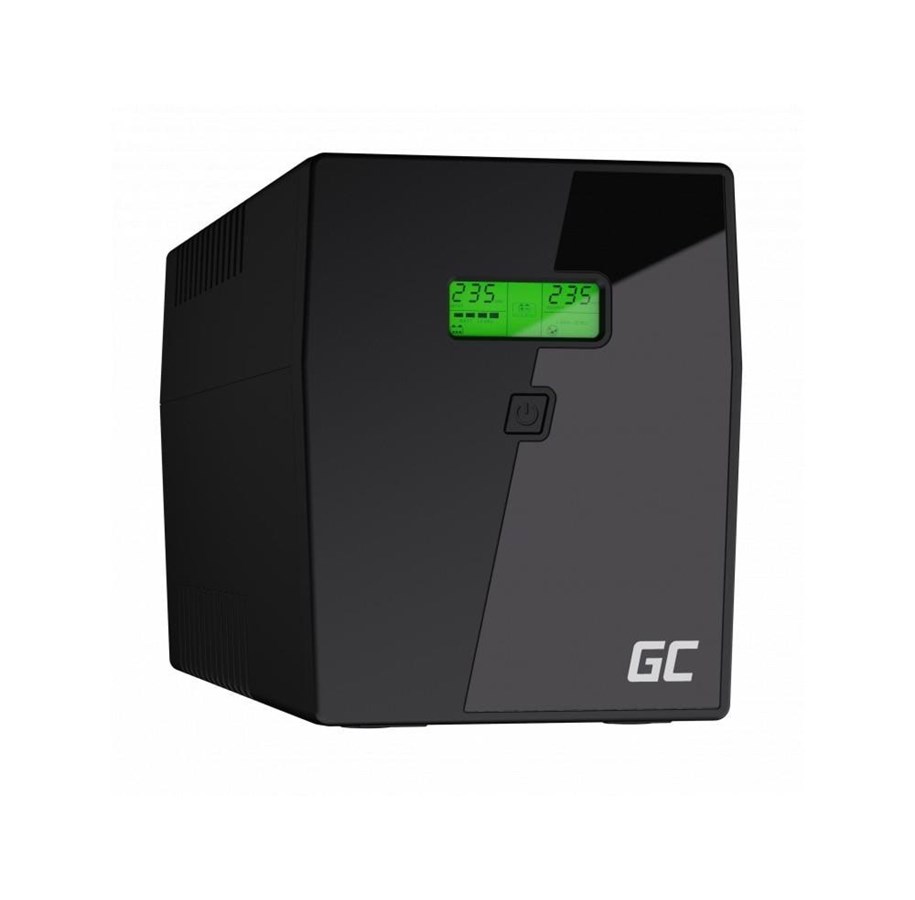

Green Cell PowerProof UPS04 - 1500VA/900W | Line-Interactive | 24V 2x9Ah
Green Cell GC PowerProof UPS04 line-interaktive USV mit simuliertem Sinuswellen-Ausgang im Batteriebetrieb, einem LCD-Display und Boost/Buck-AVR-Spannungsstabilisierung. Ein Dual-Batterie-Gerät mit höherer Kapazität, geeignet für PCs, NAS und kleine Server-Setups.
- Topologie: Line-interaktiv
- Kapazität: 1500VA / 900W
- Nenneingangsspannung: 110/120 oder 220/230/240 Vac
- Betriebsspannungsbereich: 81–145 Vac / 162–290 Vac
- Betriebsfrequenz: 50/60Hz (automatische Erkennung)
- Ausgangswellenform (Batteriebetrieb): Simulierte Sinuswelle
- AC-Spannungsregelung (Batteriebetrieb): ±10%
- Umschaltzeit: Typisch 2–6ms, max. 10ms
- Batterie: 24Vdc, 2x 12V/9Ah
- Ladezeit: 6–8 Stunden bis 90% Kapazität
- Display: LCD (AC-/Batteriebetrieb, Lastniveau, Batteriestand, Ein-/Ausgangsspannung, Überlast, Fehler, Batterie schwach)
- Schutz: Kurzschluss, Überlast, Überladung, Tiefentladung
- Kommunikation: USB oder RS232 (Windows, Linux, Unix, macOS)
- Steckdosen: 2x Schuko, 2x IEC C13
- Geräuschpegel: Weniger als 55dB
- Abmessungen (T x B x H): 380 x 158 x 198 mm
- Gewicht: Ca. 10.1 kg
- Betriebsfeuchtigkeit: 0–90% RH @ 0–40°C, nicht kondensierend
- Zertifizierungen: IEC/EN62040-1, IEC/EN60950-1, IEC/EN62040-2, IEC/EN62040-3, IEC 61000-4-2/3/4/5/6/8
Ein integrierter Lüfter unterstützt den Dauerbetrieb bei dieser höheren Kapazität, während zwei 12V/9Ah-Batterien eine verlängerte Backup-Laufzeit bieten. IEC C13-Steckdosen neben Schuko-Steckdosen eignen sich für Server- und Netzwerkgeräte.
100,71 €
84,63 € exkl. MwSt.
Günstigste Versandoption 4,99 €
Verfügbar - 4-6 Werktage Lieferzeit (Auf Lager ab 27.08.2026)
What is a UPS?
What is it used for?
An uninterruptible power supply unit (UPS) is a device whose purpose is to provide power when our apartment or workplace runs out of electricity. Sudden power cut can cause loss of important data, but also damage to electronic equipment. Thanks to an emergency power supply you will be given time to save the effects of your work and safely switch off the device. UPS can take over the role of a mains socket and provide backup power even in the event of large and long-lasting voltage fluctuations. When there is current in the socket, the UPS accumulates energy in the battery and thus provides the devices connected with appropriate surge protection.
With attention to detail
When designing our UPS’s, we took care of every aspect. By combining maximum functionality with unique design we created a device that will look great in every setting. What is more, to make using the UPS more comfortable we equipped it with an easy-to-read LCD display which will inform you about many parameters that are essential for the operation of the supply.
Type of UPS
Line interactive: UPS’s with line-interactive AVR topology are an improved version of offline power supply. They have been equipped with an automatic voltage stabiliser which protects not only against loss of supply voltage but also against line interference. These power supplies guarantee full security of all equipment connected to the UPS.
Essential parameters
Power rating
This informs you how many and what sort of devices the UPS is able to supply with electricity. In order to meet users’ requirements, Green Cell UPS’s have been equipped with top quality AGM batteries which can have a lifetime of up to 5 years of operation and thereby ensure the best efficiency.
Switching time
It determines how quickly the UPS will respond to power outages. The lower its value, the better the UPS. Uninterruptible Power Supplies by Green Cell guarantee the lowest switching times, so they immediately respond to power outages, ensuring complete security and safety for your documents and devices.
Why a modified sine wave?
The use of a modified sinusoid ensures a simple UPS construction, thanks to which has less failure and its weight is very low. Choosing a modified sine wave, you do not have to worry about the work of connected devices!
Always under control
In order to make it possible to use of the functions of a Green Cell UPS, special dedicated software has been created to enable advanced management of the device. The application ensures simple and intuitive use without any problems. The program enables preview in real time and displays measurement data including input and output voltages, load frequency of the UPS, its temperature and battery capacity. You can setup automatic system shut-off, notifications and email warnings in the event of switching to batter operation. You can find out about these and other functions by downloading the software
What is it used for?
An uninterruptible power supply unit (UPS) is a device whose purpose is to provide power when our apartment or workplace runs out of electricity. Sudden power cut can cause loss of important data, but also damage to electronic equipment. Thanks to an emergency power supply you will be given time to save the effects of your work and safely switch off the device. UPS can take over the role of a mains socket and provide backup power even in the event of large and long-lasting voltage fluctuations. When there is current in the socket, the UPS accumulates energy in the battery and thus provides the devices connected with appropriate surge protection.
With attention to detail
When designing our UPS’s, we took care of every aspect. By combining maximum functionality with unique design we created a device that will look great in every setting. What is more, to make using the UPS more comfortable we equipped it with an easy-to-read LCD display which will inform you about many parameters that are essential for the operation of the supply.
Type of UPS
Line interactive: UPS’s with line-interactive AVR topology are an improved version of offline power supply. They have been equipped with an automatic voltage stabiliser which protects not only against loss of supply voltage but also against line interference. These power supplies guarantee full security of all equipment connected to the UPS.
Essential parameters
Power rating
This informs you how many and what sort of devices the UPS is able to supply with electricity. In order to meet users’ requirements, Green Cell UPS’s have been equipped with top quality AGM batteries which can have a lifetime of up to 5 years of operation and thereby ensure the best efficiency.
Switching time
It determines how quickly the UPS will respond to power outages. The lower its value, the better the UPS. Uninterruptible Power Supplies by Green Cell guarantee the lowest switching times, so they immediately respond to power outages, ensuring complete security and safety for your documents and devices.
Why a modified sine wave?
The use of a modified sinusoid ensures a simple UPS construction, thanks to which has less failure and its weight is very low. Choosing a modified sine wave, you do not have to worry about the work of connected devices!
Always under control
In order to make it possible to use of the functions of a Green Cell UPS, special dedicated software has been created to enable advanced management of the device. The application ensures simple and intuitive use without any problems. The program enables preview in real time and displays measurement data including input and output voltages, load frequency of the UPS, its temperature and battery capacity. You can setup automatic system shut-off, notifications and email warnings in the event of switching to batter operation. You can find out about these and other functions by downloading the software
Hersteller
Waren-Nr.
3224871
Modell
UPS04
EAN
5902701419646
Zum Hersteller:
Produktbeschreibung
Green Cell UPS Micropower 1500VA - USV - 900 watt - 1500 VA
Gerätetyp
USV - extern
Gewicht
11.1 kg
Eingangsspannung
Wechselstrom 220/230/240 V
Ausgangsspannung
Wechselstrom 230 V
Leistungskapazität
900 watt / 1500 VA
Ausgabeanschlussstellen
4 x power CEE 7/7
Batterie
- 9 Ah
Anz. Batterien
2
Netzwerk
USB, Ethernet
Abmessungen (Breite x Tiefe x Höhe)
15.8 cm x 38 cm x 19.8 cm
Allgemein
Gerätetyp
USV - extern
Stromversorgungsgerät
UPS-Technologie
Line-Interactive
Eingangsspannung
Wechselstrom 220/230/240 V
Vorhandene Spannung
50/60 Hz
Nötige Frequenz
50/60 Hz
Angaben zu Ausgangsleistungsanschlüssen
4 x power CEE 7/7
Ausgangsspannung
Wechselstrom 230 V 50/60 Hz
Leistungskapazität
900 watt / 1500 VA
Überspannungsschutz für Datenleitungen
Netzwerk - RJ-45 - 1 Eingangs-/1 Ausgangsleitung
Ausgabe Wellenform
Sinuswelle
Überspannungsschutz
Ja
Batterie
Menge
2
Bereitgestellte Spannung
12 V
Kapazität
9 Ah
Übertragungszeit
6 ms
Netzwerk
Remote-Verwaltungsschnittstelle
USB, Ethernet
Erweiterung/Konnektivität
Schnittstellen
1 x Verwaltung (USB) - 4-poliger USB Typ B
Verschiedenes
Besonderheiten
Automatische Spannungsregelung (Automatic Voltage Regulation, AVR)
Abmessungen und Gewicht
Breite
15.8 cm
Tiefe
38 cm
Höhe
19.8 cm
Gewicht
11.1 kg
Die genannten Informationen und Spezifikationen können vom Hersteller jederzeit und ohne vorherige Ankündigung geändert werden. Die Herstellerabbildungen dienen ausschließlich der Veranschaulichung. Irrtümer und Schreibfehler bleiben vorbehalten. Deutsche Bedienungsanleitungen sind in einigen Fällen ausschließlich digital verfügbar und nicht Bestandteil des Lieferumfangs. Teile des Textes wurden möglicherweise automatisiert erstellt oder maschinell übersetzt und können daher in Einzelfällen missverständlich sein.
