Waren-Nr.: 2637909

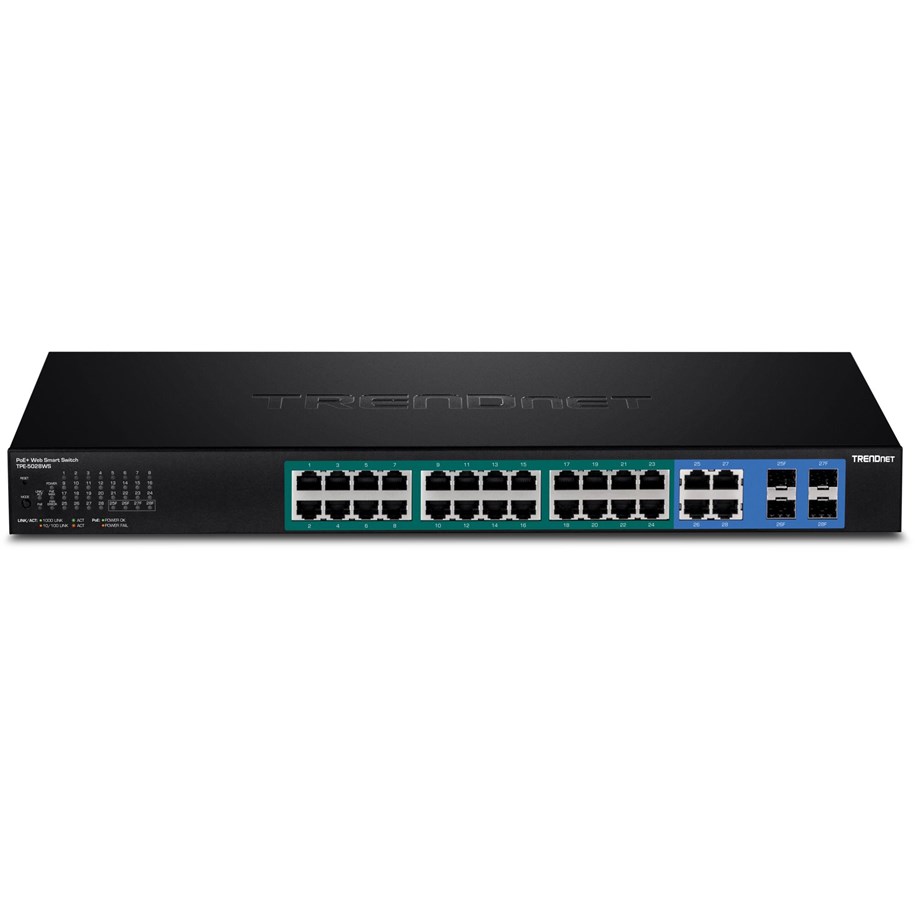

TRENDnet TPE-5028WS 28-Port Gigabit Web Smart PoE+
Switch, Smart, 24 x 10/100/1000 (PoE+) + 4 x Kombi-Gigabit-SFP, Desktop, an Rack montierbar, PoE+ (370 W), AC 100, 240 V, TAA-konform
429,57 €
360,98 € exkl. MwSt.
Günstigste Versandoption 4,99 €
Verfügbar - 3-5 Werktage Lieferzeit
TRENDnet's Gigabit Web Smart PoE+ Switch series offers advanced L2+ features with enhanced traffic management controls to meet the evolving demands of SMB networks. This rack mountable IPv6-ready managed switch comes with an intuitive web-based interface. Advanced managed switch features include LACP to increase bandwidth between switches by grouping ports together, VLANs for segmenting and isolating virtual LAN groups, QoS for traffic prioritization, port bandwidth controls, and SNMP monitoring, making this a powerful solution for any SMB network. Improve voice performance by isolating and prioritizing VoIP traffic from normal data traffic with an easy-to-use voice VLAN feature. Free up router resources by offloading routing processes to this managed switch by using the L2+ IPv4/IPv6 static routing feature to efficiently route traffic at the switch level. The dynamic ARP inspection feature helps protect connected devices from man-in-the-middle attacks by discarding malicious and invalid ARP packets. Take advantage of the available multicast and IGMP/MLD snooping features to optimize IP surveillance system performance, and minimize network traffic.
TRENDnet's web smart managed switches also feature SFP slots to support long-distance fiber networking applications. Installers and integrators can save on equipment costs and reduce installation time with TRENDnet's Web Smart PoE+ Managed Switches by delivering up to 30 W per port of PoE power and data over existing Ethernet cables. With PoE technology, users only need one set of cables to deliver both data and power. With this PoE+ managed switch, network PoE devices, such as high-power wireless access points, PTZ and other advanced IP cameras, VoIP phone systems, IPTV decoders, access controls, and more. Easily manage and configure TRENDnet's Web Smart PoE+ Managed Switch Series remotely by updating switches to the firmware for access to TRENDnet Hive. TRENDnet Hive is a network cloud manager that reduces management time and cost.
TRENDnet's web smart managed switches also feature SFP slots to support long-distance fiber networking applications. Installers and integrators can save on equipment costs and reduce installation time with TRENDnet's Web Smart PoE+ Managed Switches by delivering up to 30 W per port of PoE power and data over existing Ethernet cables. With PoE technology, users only need one set of cables to deliver both data and power. With this PoE+ managed switch, network PoE devices, such as high-power wireless access points, PTZ and other advanced IP cameras, VoIP phone systems, IPTV decoders, access controls, and more. Easily manage and configure TRENDnet's Web Smart PoE+ Managed Switch Series remotely by updating switches to the firmware for access to TRENDnet Hive. TRENDnet Hive is a network cloud manager that reduces management time and cost.
Hersteller
Waren-Nr.
2637909
Modell
TPE-5028WS
EAN
710931161182
Zum Hersteller:
Switch-Typ
Managed
Quality of Service (QoS) Support
Ja
Web-basiertes Management
Ja
MIB Unterstützung
IP FORWARD TABLE MIB RFC 1354, RMON MIB RFC 1271, IPV4 MIB RFC 1213, IPV6 MIB RFC 2465, GVRP MIB IEEE 802.1Q-VLAN, LA MIB IEEE 802.3ad, LLDP MIB IEEE 802.1AB, IGMP SNOOPING MIB RFC 2933, MLD SNOOPING MIB RFC 3019, PRIVATE VLAN MIB IEEE 802.1Q, DHCPSNOOP MIB RFC 2026, QOS MIB RFC 4323, SNMP MIB RFC 3415, STP MIB RFC 4318, PNAC MIB IEEE 802.1x, VLAN MIB IEEE 802.1q, DNS MIB RFC 1611, ACL MIB, BANDWIDTH CTRL MIB, LBD MIB, MIRROR MIB, IPV6 NEIGHBOR MIB, SNTP MIB, STORM CTRL MIB, STATISTICS MIB, Tool MIB, VOICE VLAN MIB, DOS MIB
Anzahl der basisschaltenden RJ-45 Ethernet Ports
24
Basic Switching RJ-45 Ethernet Ports-Typ
Gigabit Ethernet (10/100/1000)
Anzahl Combo-SPF-Anschlüsse
4
Netzstecker
DC-Anschluss
Netzstandard
IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Port-Spiegelung
Ja
Vollduplex
Ja
Link Aggregation
Ja
Spannbaum-Protokoll
Ja
Head-of-Line (HOL)-Blocking
Ja
VLAN-Unterstützung
Ja
Virtuelle LAN-Funktionen
Private VLAN, VLAN Identifier ( VLAN ID), Voice VLAN, Tagged VLAN
MAC-Adressentabelle
8000 Eintragungen
Routing-/Switching-Kapazität
56 Gbit/s
Transferrate
41,7 Mpps
Jumbo Frames Unterstützung
Ja
Jumbo-Frames
10000
Datenpaket-Pufferspeicher
4,1 MB
Zugriffkontrollliste
Ja
IGMP-Snooping
Ja
Unterstützte Sicherheitsalgorithmen
HTTPS, SNMP, SSL/TLS
MAC Adressen Filtern
Ja
Multicast Unterstützung
Ja
Multicast MAC-Adresstabelle
256 Eintragungen
Rack-Einbau
Ja
Formfaktor
1U
Produktfarbe
Schwarz
Gehäusematerial
Lineares Polyethylen mit niedriger Dichte (LLDPE)
LED-Anzeigen
Ja
Anzahl Lüfter
2 Lüfter
Kompatible Betriebssysteme
Windows® 10, 8.1, 8, 7, Vista, XP, Windows® 2003/2008 Server
Geräuschpegel
52 dB
Mittlere Betriebsdauer zwischen Ausfällen (MTBF)
277,604 h
AC Eingangsspannung
100 - 240 V
AC Eingangsfrequenz
50 - 60 Hz
Stromverbrauch (Standardbetrieb)
30 W
Stromverbrauch (max.)
446 W
Power over Ethernet (PoE)
Ja
Anzahl Power over Ethernet plus (PoE+) Anschlüsse
24
Gesamtleistung Power over Ethernet (PoE)
370 W
Betriebstemperatur
-5 - 50 °C
Relative Luftfeuchtigkeit in Betrieb
0 - 95%
Breite
440 mm
Tiefe
250 mm
Höhe
44 mm
Gewicht
3,92 kg
Mitgelieferte Kabel
AC
Schnellstartübersicht
Ja
Rackmontageset
Ja
Ressourcen-CD
Ja
Zertifizierung
CE, FCC
Warentarifnummer (HS)
85176990
Management-Funktionen
Switch-Typ
Managed
Quality of Service (QoS) Support
Ja
Web-basiertes Management
Ja
MIB Unterstützung
IP FORWARD TABLE MIB RFC 1354, RMON MIB RFC 1271, IPV4 MIB RFC 1213, IPV6 MIB RFC 2465, GVRP MIB IEEE 802.1Q-VLAN, LA MIB IEEE 802.3ad, LLDP MIB IEEE 802.1AB, IGMP SNOOPING MIB RFC 2933, MLD SNOOPING MIB RFC 3019, PRIVATE VLAN MIB IEEE 802.1Q, DHCPSNOOP MIB RFC 2026, QOS MIB RFC 4323, SNMP MIB RFC 3415, STP MIB RFC 4318, PNAC MIB IEEE 802.1x, VLAN MIB IEEE 802.1q, DNS MIB RFC 1611, ACL MIB, BANDWIDTH CTRL MIB, LBD MIB, MIRROR MIB, IPV6 NEIGHBOR MIB, SNTP MIB, STORM CTRL MIB, STATISTICS MIB, Tool MIB, VOICE VLAN MIB, DOS MIB
Anschlüsse und Schnittstellen
Anzahl der basisschaltenden RJ-45 Ethernet Ports
24
Basic Switching RJ-45 Ethernet Ports-Typ
Gigabit Ethernet (10/100/1000)
Anzahl Combo-SPF-Anschlüsse
4
Netzstecker
DC-Anschluss
Netzwerk
Netzstandard
IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Port-Spiegelung
Ja
Vollduplex
Ja
Link Aggregation
Ja
Spannbaum-Protokoll
Ja
Head-of-Line (HOL)-Blocking
Ja
VLAN-Unterstützung
Ja
Virtuelle LAN-Funktionen
Private VLAN, VLAN Identifier ( VLAN ID), Voice VLAN, Tagged VLAN
Datenübertragung
MAC-Adressentabelle
8000 Eintragungen
Routing-/Switching-Kapazität
56 Gbit/s
Transferrate
41,7 Mpps
Jumbo Frames Unterstützung
Ja
Jumbo-Frames
10000
Datenpaket-Pufferspeicher
4,1 MB
Sicherheit
Zugriffkontrollliste
Ja
IGMP-Snooping
Ja
Unterstützte Sicherheitsalgorithmen
HTTPS, SNMP, SSL/TLS
MAC Adressen Filtern
Ja
Multicast-Funktionen
Multicast Unterstützung
Ja
Multicast MAC-Adresstabelle
256 Eintragungen
Design
Rack-Einbau
Ja
Formfaktor
1U
Produktfarbe
Schwarz
Gehäusematerial
Lineares Polyethylen mit niedriger Dichte (LLDPE)
LED-Anzeigen
Ja
Anzahl Lüfter
2 Lüfter
Leistungen
Kompatible Betriebssysteme
Windows® 10, 8.1, 8, 7, Vista, XP, Windows® 2003/2008 Server
Geräuschpegel
52 dB
Mittlere Betriebsdauer zwischen Ausfällen (MTBF)
277,604 h
Energie
AC Eingangsspannung
100 - 240 V
AC Eingangsfrequenz
50 - 60 Hz
Stromverbrauch (Standardbetrieb)
30 W
Stromverbrauch (max.)
446 W
Power over Ethernet (PoE)
Power over Ethernet (PoE)
Ja
Anzahl Power over Ethernet plus (PoE+) Anschlüsse
24
Gesamtleistung Power over Ethernet (PoE)
370 W
Betriebsbedingungen
Betriebstemperatur
-5 - 50 °C
Relative Luftfeuchtigkeit in Betrieb
0 - 95%
Gewicht und Abmessungen
Breite
440 mm
Tiefe
250 mm
Höhe
44 mm
Gewicht
3,92 kg
Lieferumfang
Mitgelieferte Kabel
AC
Schnellstartübersicht
Ja
Rackmontageset
Ja
Verpackungsdaten
Ressourcen-CD
Ja
Zertifikate
Zertifizierung
CE, FCC
Logistikdaten
Warentarifnummer (HS)
85176990
