Schaltkästen und Schränke - ELDON Wall mounted 600x600x210 - ASR0606021
Waren-Nr.: 2757544

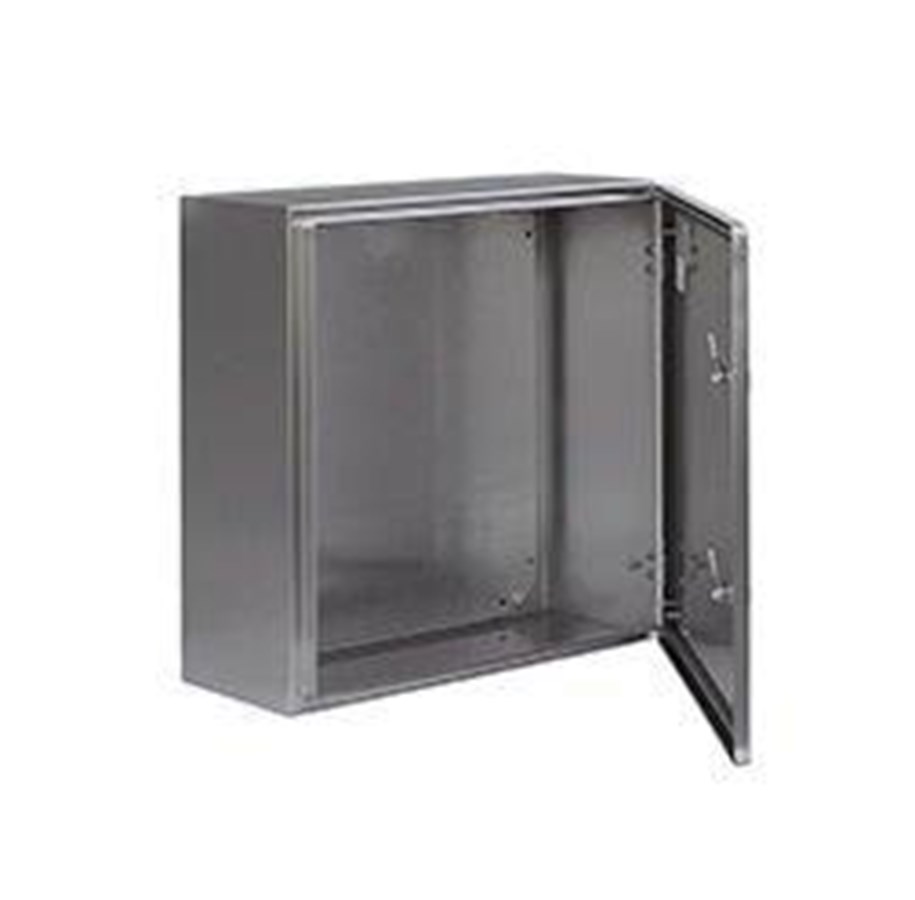

ELDON Wall mounted 600x600x210

An der Wand befestigt, 600x600x210, Kompaktgehäuse, 1 Tür, mit MP, Edelstahl 304, IP66

595,87 € 500,73 € exkl. MwSt.
Günstigste Versandoption 5,99 €
Verfügbar - 2-4 Werktage Lieferzeit

Wall cabinet 600x600x210 ASR0606021 Product description: Description: RFt wall cabinet 600x600x210 Material: AISI 304 brushed stainless steel. Cabinet: 1mm/1.5mm ASR0505021 and larger Door: 1.5mm/2mm ASR1008030 and larger, Mounting plate: 2mm galvanized Frame: Edge-folded and fully welded. Door: 130° opening angle. Pre-brushed AISI304. Hinges with removable split pin. Right or left-hand opening option available. Polyurethane gasket in one piece on the door frame for a perfect seal against dust and water ingress, IP66 rated protection class according to EN60529 standard, NEMA4X,12 &13 rating according to UL50E standard Impact resistance IK10 Locks : Chrome plated DIN lock with anti-vibration mechanism (3 mm thick). Stainless steel locks or other versions are available as an accessory Mounting plate : Welded on M8 screws on the back of the cabinet In cabinets over height of800 mm mounting plate has a fold all around for extra stability Cable entry : No flange openings as standard to maximize sealing and clean lines Surface treatment : Brushed finish (240s average grain size is less than0 .5 microns) Delivery includes mounting plate complete with fixing accessoriesand earthing connection Packing in recycled cardboard box Additional information Use of temperature control , ventilation , rain hood recommended for demanding outdoor applications Please refer to general accessories sectionand technical chapterfor further information Technical specifications Color Stainless Steel Width [W] mm [in] 600[23 .62] Height[H ] mm[in ] 600[23 .62] Depth[D ] mm[in ] 210[8 .27].

Hersteller
Waren-Nr.
2757544
Modell
ASR0606021
EAN
8713574120457
