Schaltkästen und Schränke - ELDON Wall mounted 515x415x230 - UCP540
Waren-Nr.: 2757586

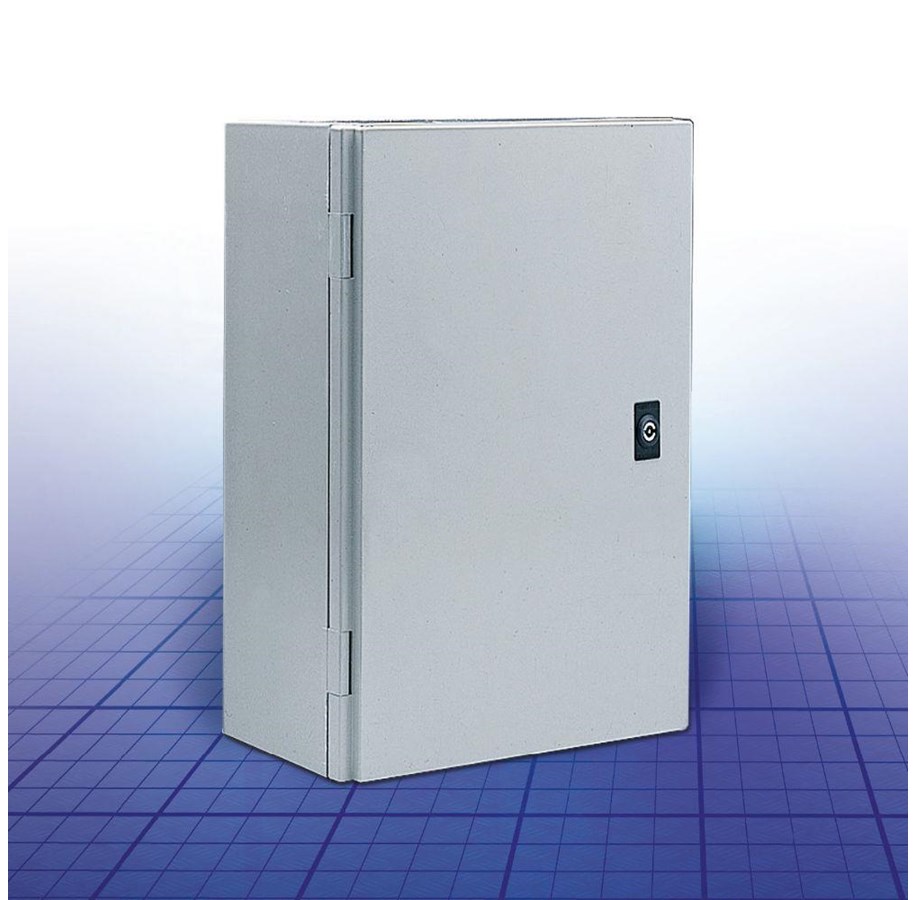

ELDON Wall mounted 515x415x230

Wandmontage, 515x415x230, Kompaktgehäuse, 1 Tür, ohne MP, Polyester, IP66

238,91 € 200,77 € exkl. MwSt.
Günstigste Versandoption 4,99 €
Verfügbar - 3-5 Werktage Lieferzeit

Wall cabinet 515x415x230 UCP540Product description: Description: Pol. Cabinet 515x415x230Material: Glass fiber reinforced polyester. UCPT polycarbonate window.Cabinet: Monoblock cast with a thickness of 3 mm. Four holes for direct wall mounting. Without flange openings.Door: Door with or without window and 180o opening angle. For UCP/UCPT750 and larger sizes, a door support ensures that the door returns to the center position when closed. Sealed with one-piece foamed polyurethane gasket.Lock: DIN 3 mm insert and 90o movement. UCP/UCPT540 and above have three locking points. Other locks are available as accessories.Temperature range: -50 °C to +70 °C for continuous use (temperature peaks up to +150 oC).Characteristics: Self-extinguishing and halogen-free material, double insulated according to DS/EN60439-1 standard, nominal insulation voltage Ui =1000 V.Degree of protection : In accordance with IP66 and NEMA4,4X,12,and13 standards.IK10 impact resistance (IK07 for cabinets with glass doors)Surface treatment : RAL7035 color-coded raw materialDelivery includes : Cabinet with door,mounting screws for mounting plate,and self-adhesive rain coverApprovals : CE.For CSAand UL approval please contact our sales department.Technical specifications:Color : Gray Width :415 Height :515 Depth :230

Hersteller
Waren-Nr.
2757586
Modell
UCP540
EAN
8713574099975
