Schaltkästen und Schränke - ELDON Wall mounted 500x400x155 - MAS0504015R5
Waren-Nr.: 2757497

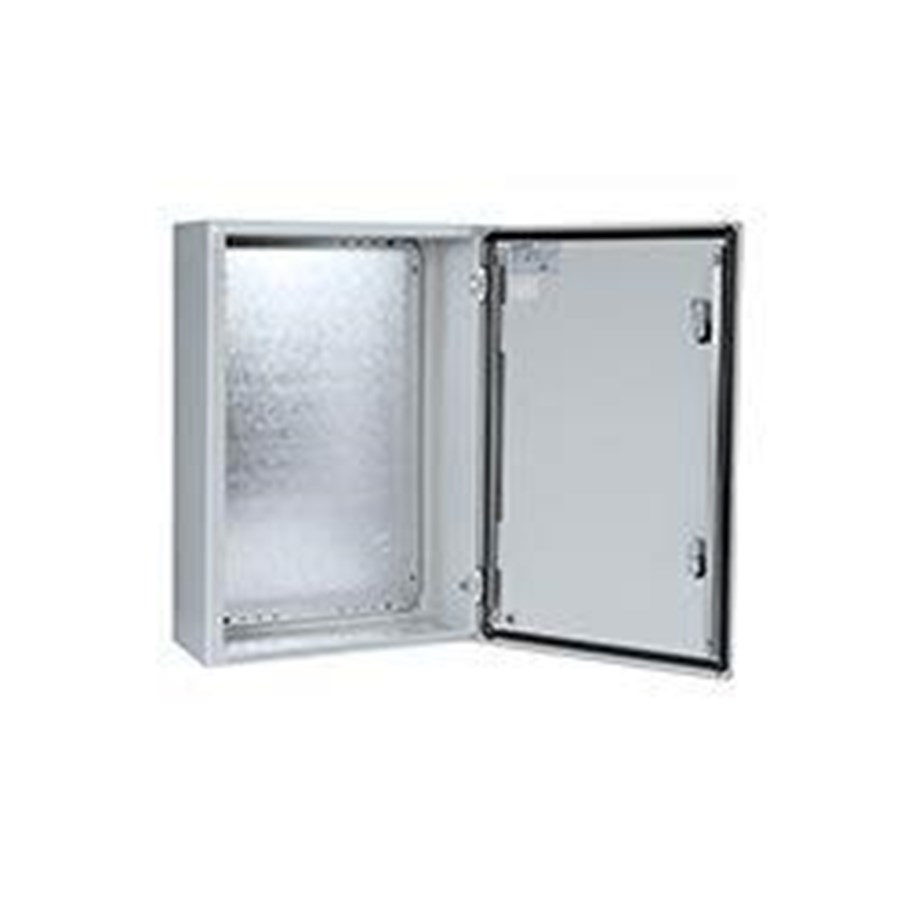

ELDON Wall mounted 500x400x155

Wandmontage, 500x400x155, Kompaktgehäuse, 1 Tür, mit MP, Stahlblech, IP66

123,96 € 104,17 € exkl. MwSt.
Günstigste Versandoption 4,99 €
Verfügbar - 3-5 Werktage Lieferzeit

Wall cabinet 500x400x155 MAS0504015R5 Product description: Material: Cabinet: 1.2 mm painted steel for cabinets with a depth of 155 mm / 1.4 mm for cabinets with a depth of 210 or 260 mm / 1.5 mm for cabinets with a depth of 300 or 400 mm, or if the height or width is greater than1000mm. Flange:1.4mm painted steel.Door:1.2mm painted steel/1.5mm for cabinets with a height or width of500mmor larger/2m mfor cabinetswithaheightorwidthof800m morabove.Mounting plate:2m mgalvanizedsteel.Cabinet:Folded and fully welded.Four holes8 .5mmdiameterforwallmounting,pressedinto20 .4mmdiameter x2mmmachinedepressionsforaircirculationbehindthebackofthecabinet.Door :130°opening.Hiddenremovablehingeswithsecuredhinge pin.Hinges can be mounted for left- or right-hand opening.From size MAS0604015 and above, there are two removable mounting profiles in the door.Secure seal with one-piece foamed polyurethane gasket.Externally mountedwith130°opening.Hiddenremovable hingeswithsecuredpin.Hinges can be mounted for left- or right-hand opening.From height300mma nd above,studsareprovidedtomountMMDPdoorprofiles,andfromheight600andabove,internaldoorprofilesareincludedasstandard.One-piecepolyurethanesealing.Lock:Cust omizedlockswithDINlockforeasyopeningofthedoor.DIN3mmcylinderand90°movement.Cabinets1000mmmhighandabovehaveespagnolette three-point locking.Other inserts are supplied as accessories.Mounting plate:The mounting plate is marked vertically at10 mmin tervals for easy horizontal positioning of equipment.There are holes at the top and bottom for cable fastening.Fastened to M8 screws spot welded on the back wall of the cabinet.All sides from 800 mm and above are reinforced with folded edges.Using AMG accessories, the position of the mounting plate can be adjusted to any depth.Flange opening:Located atthe very backofthecabinettofacilitatecablingonthe mounting plate.Degreeofprotection:In accordance with IP66.

Hersteller
Waren-Nr.
2757497
Modell
MAS0504015R5
EAN
8713574128811

Die oben gennanten Informationen/Spezifikationen sind Richtwerte und können ohne vorherige Ankündigung vom Hersteller geändert werden. Die Abbildungen sind nur indikativ und es können Schreibfehler vorkommen. Bitte beachten: Deutsche Bedienungsanleitung nicht im Lieferumfang enthalten. Einige Texte wurden möglicherweise automatisch erstellt oder maschinell übersetzt und können daher irreführend sein.
