Waren-Nr.: 2692612

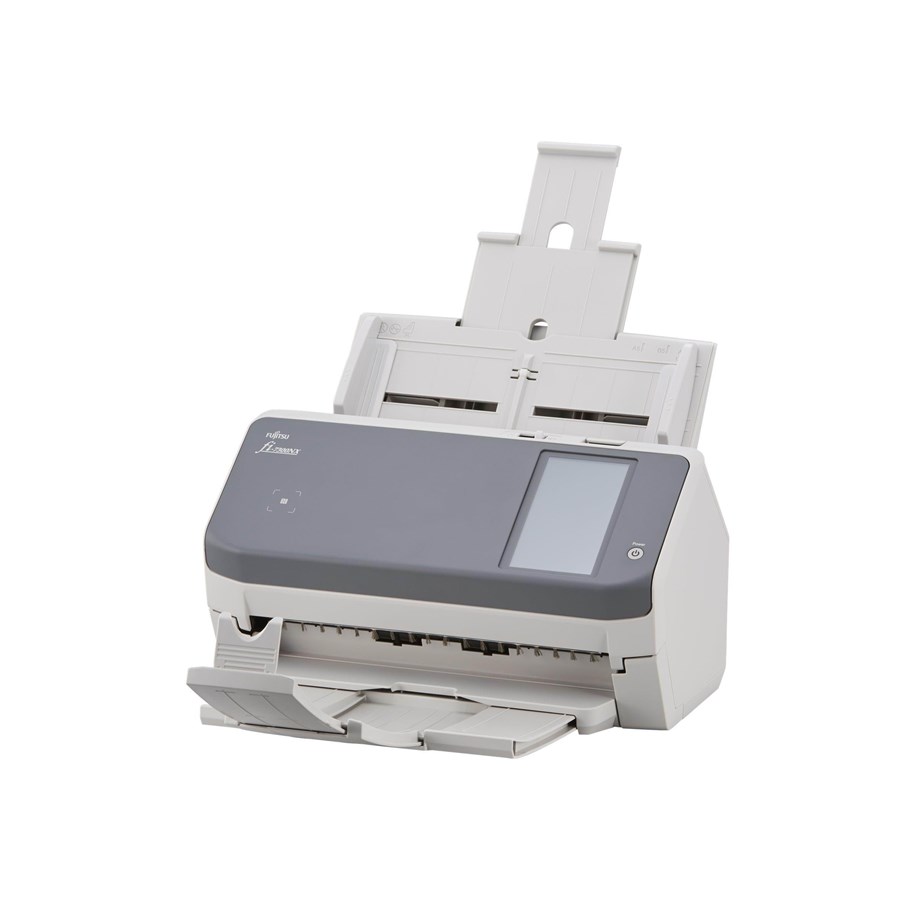

Ricoh fi 7300NX

Dokumentenscanner, Dual-CCD, Duplex, 216 x 355.6 mm, 600 dpi x 600 dpi, bis zu 60 Seiten/Min. (einfarbig) / bis zu 60 Seiten/Min. (Farbe), automatischer Dokumenteneinzug (80 Blätter), bis zu 4000 Scanvorgänge/Tag, Gigabit LAN, USB 3.1 Gen 1, für P/N: PA03360-0013, PA03670-0001, PA03670-0002, PA03950-0352, PA03950-0419, PA43404-A433

993,62 € 834,98 € exkl. MwSt.
Günstigste Versandoption 4,99 €
Bestellware - 6-8 Tage Lieferzeit
Ladegerät enthalten
Charger included

The fi-7300NX is an image scanner that supports web systems and connects directly to client systems. Users can begin scanning from the scanner's touch screen or from various applications on smart devices to suit all business needs. Not only is direct data transfer to client-unique web systems possible with SDK use, but secure data transfer is also possible with strong data encryption. The fi-7300NX boasts a speed of 60 ppm/120 ipm (200/300 dpi) for scanning A4 portraits, loads up to 80 sheets at a time, and ensures utmost efficiency as the first standalone scanner in the world to support 5 GHz Wi-Fi. The 4.3" touch screen enables users to perform operations intuitively, like scanning and data checking, with thumbnail reviews of scans and the screen also displays messages or instructions with illustrations so that users can handle errors themselves. Users can scan and save documents without any requirement for a local computer, they can simply login to the scanner using user authentication and select a job from their personalized job menus on the fi-7300NX's touch screen. Customized job menus ensure efficient and secure decentralized data entry is possible for each user. The fi-7300NX supports NFC (Type-A and Type-B) authentication and user authentication with username and password input on the touch screen. It is also possible for different job menus to be assigned to each scanner, and avoid any authentication processes. With PaperStream NX Manager, users can scan from mobile or web applications opened up on smart devices or thin client terminals. Seamless integration into company systems enables use of a variety of devices for scanning operations. The user authentication function, job menu, and other scan settings are all centrally managed with PaperStream NX Manager and Scanner Central Admin. With the fi-7300NX's server software, there is no need for the conventional single client computer to scanner environment and the system administrator to stand by the scanner. This reduces the total burden of installation, expansion, operation, and management. Manage jobs and process images with PaperStream NX Manager. Monitor scanner operation with Scanner Central Admin. When scanning with computers, the fi-7300NX can be used with PaperStream IP, a specialized scanner driver for Ricoh image scanners, via Wi-Fi connection, wired network, and USB connection. Connection without need for the USB cable allows the scanner to be positioned wherever needed, to improve user productivity, reduce interruptions, and make more room for more frequently used equipment.

Hersteller
Waren-Nr.
2692612
Modell
PA03768-B001
EAN
4939761309632
Zum Hersteller:
Produktbeschreibung
Ricoh fi-7300NX - Dokumentenscanner - Desktop-Gerät - Gigabit LAN, USB 3.1 Gen 1
Gerätetyp
Dokumentenscanner - Desktop-Gerät
Schnittstellentyp
Gigabit LAN, USB 3.1 Gen 1
Scansensor-Typ
Dual-CCD
Lichtquelle
LED-Array weiß
Max. unterstützte Dokumentgröße
216 x 355.6 mm
Eingabetyp
Farbe
Graustufen/Farbtiefe (extern)
8 Bit (256 Graufstufen) / 24 Bit (16,7 Millionen Farben)
Optische Auflösung
600 dpi x 600 dpi
Interpolierte Auflösung
1200 dpi x 1200 dpi
Maximale Geschwindigkeit beim Dokumentenscan
60 Seiten/Min. (einfarbig) / 60 Seiten/Min. (Farbe)
Max. Dokumentgröße
216 mm x 5588 mm
Automatisches Duplexing
Ja
Unterstützter Dokumenttyp
Normalpapier, Plastikkarte
Dokumentenzuführungstyp
Automatisch
Dokumenten-Speicherkapazität
80 Blätter
Kapazität
4000 Scanvorgänge/Tag
Stromversorgung
Wechselstrom 120/230 V (50/60 Hz)
Systemanforderungen
Microsoft Windows Server 2008 R2 x64 Edition, Microsoft Windows 7 (32/64 bits), Microsoft Windows Server 2008 (32/64-bits), Microsoft Windows Server 2012 x64 Edition, Windows 8.1 (32/64 Bit), Microsoft Windows Server 2012 R2 x64 Edition, Windows 10 (32/64 bits), Microsoft Windows Server 2016 (64-bit)
Abmessungen (Breite x Tiefe x Höhe)
30 cm x 20.2 cm x 17 cm
Gewicht
4.9 kg
Umweltschutzstandards
ENERGY STAR-qualifiziert
Entwickelt für
P/N: CA99501-0012, PA03360-0013, PA03670-0001, PA03670-0002, PA03950-0352, PA03950-0419, PA43404-A433

Allgemein

Typ
Dokumentenscanner - Desktop-Gerät
Schnittstellentyp
Gigabit LAN, USB 3.1 Gen 1
Max. unterstützte Dokumentgröße
216 x 355.6 mm

Scanner

Eingabetyp
Farbe
Graustufentiefe (extern)
8 Bit (256 Graufstufen)
Farbtiefe (extern)
24 Bit (16,7 Millionen Farben)
Optische Auflösung
600 dpi x 600 dpi
Interpolierte Auflösung
1200 dpi x 1200 dpi
Automatisches Duplexing
Ja
Scansensor-Typ
Dual-CCD
Typ der Lampe/Lichtquelle
LED-Array weiß
Maximale Scangeschwindigkeit bei S/W-Dokumenten
60 Seiten/Min.
Maximale Scangeschwindigkeit bei Farbdokumenten
60 Seiten/Min.
Kapazität
4000 Scanvorgänge/Tag
Scanner-Geschwindigkeitsangaben
60 Seiten/Min. - Porträt - A4 - 200 dpi
60 Seiten/Min. - Porträt - A4 - 300 dpi
120 Bilder/Min. - Duplex - Farbe - 200 dpi
120 Bilder/Min. - Duplex - Farbe - 300 dpi
120 Bilder/Min. - Duplex - Graustufe - 200 dpi
120 Bilder/Min. - Duplex - Graustufe - 300 dpi
120 Bilder/Min. - Duplex - Schwarz & Weiss - 200 dpi
120 Bilder/Min. - Duplex - Schwarz & Weiss - 300 dpi
Scanner-Merkmale
Integrierter LCD-Bildschirm, Ultraschallsensor, Intelligent Sonic Paper Protection (iSOP), 4,3"-Touchscreen-TFT-Display, NFC-Authentifizierung
Produktzertifizierungen
TWAIN, ISIS

Medienhandhabung

Max. Dokumentgröße
216 mm x 5588 mm
Unterstützter Dokumenttyp
Normalpapier, Plastikkarte
Dokumentenzuführungstyp
Automatisch
Dokumenten-Speicherkapazität
80 Blätter

Erweiterung/Konnektivität

Schnittstellendetails
USB 3.1 Gen 1
Gigabit LAN

Verschiedenes

Zubehör im Lieferumfang
ADF Papierrinne
Enthaltene Kabel
1 x USB-Kabel
Produktzertifizierungen
RoHS

Umweltschutzstandards

ENERGY STAR zertifiziert
Ja

Stromversorgung

Stromversorgungsgerät
Externer Stromadapter
Erforderliche Netzspannung
Wechselstrom 120/230 V (50/60 Hz)
Stromverbrauch im Betrieb (Standby)
42 Watt
Stromverbrauch im Standby-Modus
0.35 Watt
Energierverbrauch Sleep
2.4 Watt

Software / Systemanforderungen

Software inbegriffen
ScanSnap Manager, ABBYY FineReader for ScanSnap, Scanner Central Admin, Software Operation Panel, PaperStream IP, PaperStream Capture
Erforderliches Betriebssystem
Microsoft Windows Server 2008 R2 x64 Edition, Microsoft Windows 7 (32/64 bits), Microsoft Windows Server 2008 (32/64-bits), Microsoft Windows Server 2012 x64 Edition, Windows 8.1 (32/64 Bit), Microsoft Windows Server 2012 R2 x64 Edition, Windows 10 (32/64 bits), Microsoft Windows Server 2016 (64-bit)

Abmessungen und Gewicht

Breite
30 cm
Tiefe
20.2 cm
Höhe
17 cm
Gewicht
4.9 kg

Umgebungsbedingungen

Min Betriebstemperatur
5 °C
Max. Betriebstemperatur
35 °C
Zulässige Luftfeuchtigkeit im Betrieb
20 - 80% (nicht kondensierend)

Informationen zur Kompatibilität

Entwickelt für
P/N: CA99501-0012, PA03360-0013, PA03670-0001, PA03670-0002, PA03950-0352, PA03950-0419, PA43404-A433

Die genannten Informationen und Spezifikationen können vom Hersteller jederzeit und ohne vorherige Ankündigung geändert werden. Die Herstellerabbildungen dienen ausschließlich der Veranschaulichung. Irrtümer und Schreibfehler bleiben vorbehalten. Deutsche Bedienungsanleitungen sind in einigen Fällen ausschließlich digital verfügbar und nicht Bestandteil des Lieferumfangs. Teile des Textes wurden möglicherweise automatisiert erstellt oder maschinell übersetzt und können daher in Einzelfällen missverständlich sein.
