Waren-Nr.: 3453532

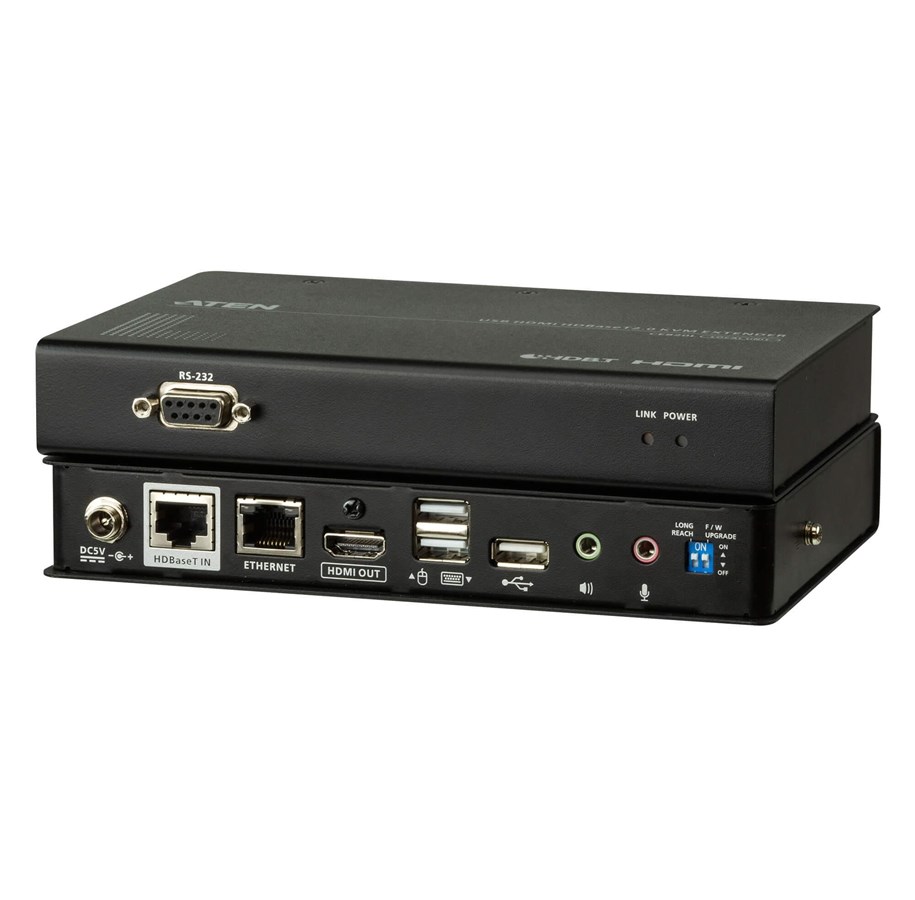

ATEN CE820 USB HDMI HDBaseT 2.0 KVM Extender (4K@100 m)

KVM-/Audio-/USB-/serieller Extender, HDBaseT 2.0, USB, bis zu 150 m

595,85 € 500,71 € exkl. MwSt.
Günstigste Versandoption 4,99 €
Bestellware - 8-10 Tage Lieferzeit

The ATEN CE820-ATA KVM / audio / serial / USB extender is a comprehensive solution designed to meet the needs of demanding audiovisual and IT environments. This device supports high-resolution video up to 4096 x 2160 / 3840 x 2160 at 60 Hz, ensuring that high-quality content can be displayed without compromise. With a wide range of connectivity options, including HDMI, USB for keyboard and mouse, audio, and RS-232 interfaces, it offers flexibility for connecting various devices.In addition to its superior video capabilities, the CE820-ATA is built to protect your investment. It features advanced 15KV air-gap discharge and 8KV contact discharge ESD protectors, minimizing the risk of damage from electrical surges. The inclusion of HDBaseT Long Reach Mode allows for the extension of HDMI, USB, and control signals up to 150 m, making it perfect for large venues or situations where devices need to be remotely located. Encased in a durable metal housing, this extender is designed to withstand the rigors of daily use, ensuring a long service life and reliability.

Hersteller
Waren-Nr.
3453532
Modell
CE820-ATA-G
EAN
4710469341823
Zum Hersteller:
Produktbeschreibung
ATEN CE820-ATA - KVM-/Audio-/USB-/serieller Extender - HDBaseT 2.0
Gerätetyp
KVM-/Audio-/USB-/serieller Extender - USB
Formfaktor
Extern
Data Link Protocol
HDBaseT 2.0
Maximaler Übertragungsbereich
150 m

Allgemein

Gerätetyp
KVM-/Audio-/USB-/serieller Extender
Formfaktor
Extern

Netzwerk

Anschlusstechnik
Kabelgebunden
Data Link Protocol
HDBaseT 2.0
Tastatur-/Mausschnittstelle
USB
Max Auflösung
4096 x 2160 / 3840 x 2160 @ 60 Hz
Maximaler Übertragungsbereich
150 m
Statusanzeiger
Stromversorgung, Video, Link
Leistungsmerkmale
3D-Unterstützung, Metallgehäuse, HDBaseT Long Reach Mode, 8KV ESD Protector (Kontaktentladung), 15KV ESD Protector (Luftspaltentladung), EDID Buffer, Deep Color Support
Produktzertifizierungen
USB 2.0, HDCP 2.2

Erweiterung/Konnektivität

Schnittstellen
1 x HDMI - HDMI Typ A, 19-polig
2 x USB-Tastatur / USB-Maus - Type A
1 x USB 2.0 - Type A
1 x Audio - mini jack
1 x Mikrofon - mini jack
1 x RS-232 - DB-9

Verschiedenes

Enthaltene Kabel
Kit Tastatur / Maus / Video / Audio / USB-Kabel - 1.8 m
Montagekit
Mitgeliefert

Stromversorgung

Stromversorgungsgerät
Externer Netzadapter

Abmessungen und Gewicht

Abmessungen (B x T x H)/Gewicht
Lokale Einheit: 18.2 cm x 12.19 cm x 2.87 cm / 630 g
Remote-Einheit: 18.2 cm x 12.19 cm x 2.87 cm / 650 g

Umgebungsbedingungen

Min Betriebstemperatur
0 °C
Max. Betriebstemperatur
40 °C
Zulässige Luftfeuchtigkeit im Betrieb
0 - 80% RH (non-condensing)

Die genannten Informationen und Spezifikationen können vom Hersteller jederzeit und ohne vorherige Ankündigung geändert werden. Die Herstellerabbildungen dienen ausschließlich der Veranschaulichung. Irrtümer und Schreibfehler bleiben vorbehalten. Deutsche Bedienungsanleitungen sind in einigen Fällen ausschließlich digital verfügbar und nicht Bestandteil des Lieferumfangs. Teile des Textes wurden möglicherweise automatisiert erstellt oder maschinell übersetzt und können daher in Einzelfällen missverständlich sein.
