Waren-Nr.: 3405037

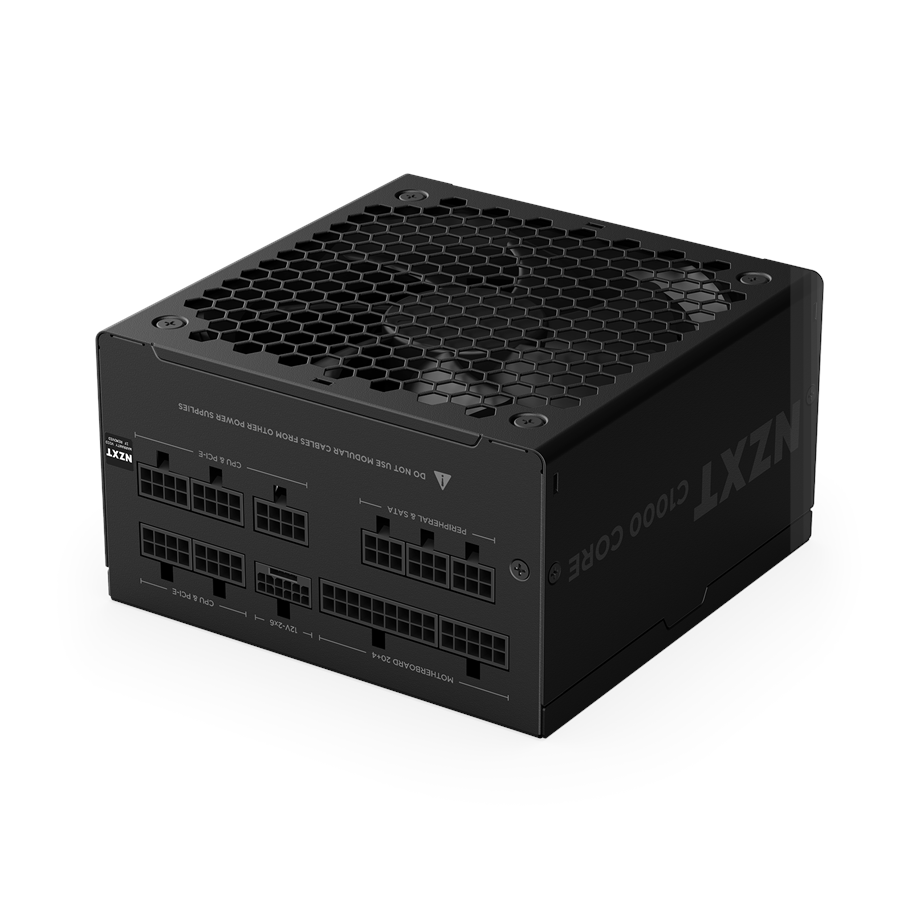

NZXT C1000 Core Netzteile - 1000 Watt - 135 mm - ATX 3.1 - 80 Plus Gold zertifiziert

Netzteile ( intern ), ATX standard: ATX12V 3.1, 80 plus Gold, Cybenetics: Platinum Effizienz / A+ Geräuschpegel, 135mm kühler mit zero RPM mode technology und fluid dynamic lager, Kabel: 3 x 8 (6+2) pins zu Grafikkarte / 1 x 12V-2x6 600 Watt pins zu Grafikkarte (PCI Express 5.1 ready) / 8 x 5 pins SATA / 3 x 4 pins Molex / 1 x 24 (20+4) pins ATX / 1 x 4+4 pins CPU1 x 8 pins CPU, voll modularfarbe: schwarz, 1000 watt

Auf Lager
154,68 € 129,98 € exkl. MwSt.
Günstigste Versandoption 4,99 €
15+ Stk. Auf Lager - 1-3 Werktage Lieferzeit

The NZXT Gold Core is an ATX 3.1, fully modular PSU with 80 PLUS Gold and Cybenetics Platinum efficiency, A+/A++ noise rating, and a 12V-2x6 PCIe 5.1 connector. Built for modern GPUs, it delivers clean, quiet power with easy cable management for performance PCs.

- ATX 3.1 Certified, PCIE 5.1 Ready: Supports next-gen GPUs with a dual-color 12V-2x6 connector for safe, stable, and efficient power delivery—ideal for modern NVIDIA graphics cards.
- 80 PLUS Gold & Cybernetics Platinum Efficiency: Delivers energy-efficient, stable performance to reduce heat and power draw, even under demanding loads.
- Whisper-Quiet Operation: Cybenetics noise certified for near-silent performance: A++ for C750 and C850 (<15 dBA), A+ for C1000 (15–20 dBA).
- Ready for AMD & NVIDIA GPUs: Compatible with most GPUs using a 12V-2x6 cable or up to three 8-pin PCIe cables.
- FDB Fan with Zero RPM Mode: 135 mm fluid dynamic bearing fan stays quiet and efficient, with Zero RPM mode during light workloads for silent operation.
- Premium 105°C-Rated Capacitors: High-quality components ensure stable, long-lasting performance across a wide range of system loads.
- Fully Modular with Embossed Cables: Use only the cables you need with a clean, compact design and durable, flexible cables for easy routing.
- Built-In Protections & 7-Year Warranty: Includes essential safety features and a dual-colored 12V-2x6 connector rated for 105°C, all backed by a 7-year warranty.

ATX 3.1 & PCIe 5.1 Ready
Meets ATX 3.1 and PCIe 5.1 standards with a 600W 12V-2x6 connector for high-performance GPUs. Delivers stable power with improved efficiency and voltage control — ideal for top-tier NVIDIA and AMD cards under heavy load.

Ready for Any GPU
Supports high-performance GPUs with a 12V-2x6 connector and dual-color housing that shows when the connection is secure. Includes up to three 8-pin PCIe cables for legacy support — offering flexibility across a wide range of powerful NVIDIA and AMD builds.

Quiet When it Counts
135 mm fluid dynamic bearing fan stays silent under light loads with Zero RPM mode—automatically stopping the fan when cooling isn’t needed.

Stable Under Pressure
105°C-rated capacitors deliver steady, reliable power—even under heavy loads.

Fully Modular
Embossed cables with included combs help keep your build and cables clean.

Sized for Easy Builds
150 mm length fits easily in most PC cases, helping keep your build clean and straightforward.

Stromkabel (Intern)

Hersteller
Waren-Nr.
3405037
Modell
PA-0G3BB-EU
EAN
5056547208756
Zum Hersteller:
Gesamtleistung
1000 W
AC Eingangsspannung
100 - 240 V
AC Eingangsfrequenz
50/60 Hz
Eingangsstrom
12 - 6 A
Leistungsfaktorkorrekturfilter (PFC)
Aktiv
Kombinierter Strom (+3.3V)
120 W
Kombinierter Strom (+12V)
1000 W
Kombinierter Strom (+5V)
120 W
Kombinierter Strom (+5Vsb)
15 W
Max. Ausgangsstrom (+3.3V)
20 A
Max. Ausgangsstrom (+12V)
83,3 A
Max Ausgangsstrom (+5V)
20 A
Max. Ausgangsstrom (+5Vsb)
3 A
Effizienz
89,1%
Energieschutzeigenschaften
Überstrom, Überlastung, Überspannung, Überhitzung, Kurzschluß, Unterspannung
Motherboard Anschlussstecker
24-pin ATX
Anzahl Molex Anschlüsse 4pin
3
Stromkabellänge Motherboard
60 cm
Anzahl SATA Stromstecker
8
SATA-Netzkabellänge
100,500 mm
Periphere (Molex) Netzkabellänge
100,500 mm
Anzahl PCI Express Stromstecker 6+2pin
3
PCI Express-Stromanschlüsse (12+4 Pol)
1
PCI Express-Stromanschlüsse (12+4-polig) Kabellänge
650 mm
CPU Stecker (4+4 pin)
Ja
CPU-Leistung Kabellänge
70 cm
ATX Stromstecker (24-pol.)
Ja
PCI Express Stecker
Ja
Kabeltyp
Vollständig modular
Zweck
PC
Stromversorgungseinheit (PSU) Formfaktor
ATX
80 Plus Zertifizierung
80 PLUS Gold
Unterstützte Motherboards Formfaktoren
ATX
ATX-Version
3.1
EPS-Version
2.92
Geräuschpegel
40,5 dB
Lagertyp
FDB
Mittlere Betriebsdauer zwischen Ausfällen (MTBF)
100000 h
Produktfarbe
Schwarz
Kühlung
Aktiv
Lüfterdurchmesser
13,5 cm
Anzahl Lüfter
1 Lüfter
Gebläsegeschwindigkeit
0 - 2300 RPM
Ein-/Ausschalter
Ja
Betriebstemperatur
0 - 50 °C
Mitgelieferte Kabel
AC, CPU, PCIe, Peripheral (Molex), SATA
Zertifizierung
CE UKCA FCC IC BSMI CB (IEC 62368-1 Ed. 3) RCM KC
Breite
150 mm
Tiefe
150 mm
Höhe
86 mm
Verpackungsart
Box

Energie

Gesamtleistung
1000 W
AC Eingangsspannung
100 - 240 V
AC Eingangsfrequenz
50/60 Hz
Eingangsstrom
12 - 6 A
Leistungsfaktorkorrekturfilter (PFC)
Aktiv
Kombinierter Strom (+3.3V)
120 W
Kombinierter Strom (+12V)
1000 W
Kombinierter Strom (+5V)
120 W
Kombinierter Strom (+5Vsb)
15 W
Max. Ausgangsstrom (+3.3V)
20 A
Max. Ausgangsstrom (+12V)
83,3 A
Max Ausgangsstrom (+5V)
20 A
Max. Ausgangsstrom (+5Vsb)
3 A
Effizienz
89,1%
Energieschutzeigenschaften
Überstrom, Überlastung, Überspannung, Überhitzung, Kurzschluß, Unterspannung

Anschlüsse und Schnittstellen

Motherboard Anschlussstecker
24-pin ATX
Anzahl Molex Anschlüsse 4pin
3
Stromkabellänge Motherboard
60 cm
Anzahl SATA Stromstecker
8
SATA-Netzkabellänge
100,500 mm
Periphere (Molex) Netzkabellänge
100,500 mm
Anzahl PCI Express Stromstecker 6+2pin
3
PCI Express-Stromanschlüsse (12+4 Pol)
1
PCI Express-Stromanschlüsse (12+4-polig) Kabellänge
650 mm
CPU Stecker (4+4 pin)
Ja
CPU-Leistung Kabellänge
70 cm
ATX Stromstecker (24-pol.)
Ja
PCI Express Stecker
Ja
Kabeltyp
Vollständig modular

Leistungen

Zweck
PC
Stromversorgungseinheit (PSU) Formfaktor
ATX
80 Plus Zertifizierung
80 PLUS Gold
Unterstützte Motherboards Formfaktoren
ATX
ATX-Version
3.1
EPS-Version
2.92
Geräuschpegel
40,5 dB
Lagertyp
FDB
Mittlere Betriebsdauer zwischen Ausfällen (MTBF)
100000 h

Design

Produktfarbe
Schwarz
Kühlung
Aktiv
Lüfterdurchmesser
13,5 cm
Anzahl Lüfter
1 Lüfter
Gebläsegeschwindigkeit
0 - 2300 RPM
Ein-/Ausschalter
Ja

Betriebsbedingungen

Betriebstemperatur
0 - 50 °C

Lieferumfang

Mitgelieferte Kabel
AC, CPU, PCIe, Peripheral (Molex), SATA

Zertifikate

Zertifizierung
CE UKCA FCC IC BSMI CB (IEC 62368-1 Ed. 3) RCM KC

Gewicht und Abmessungen

Breite
150 mm
Tiefe
150 mm
Höhe
86 mm

Verpackungsdaten

Verpackungsart
Box
