Waren-Nr.: 2721874

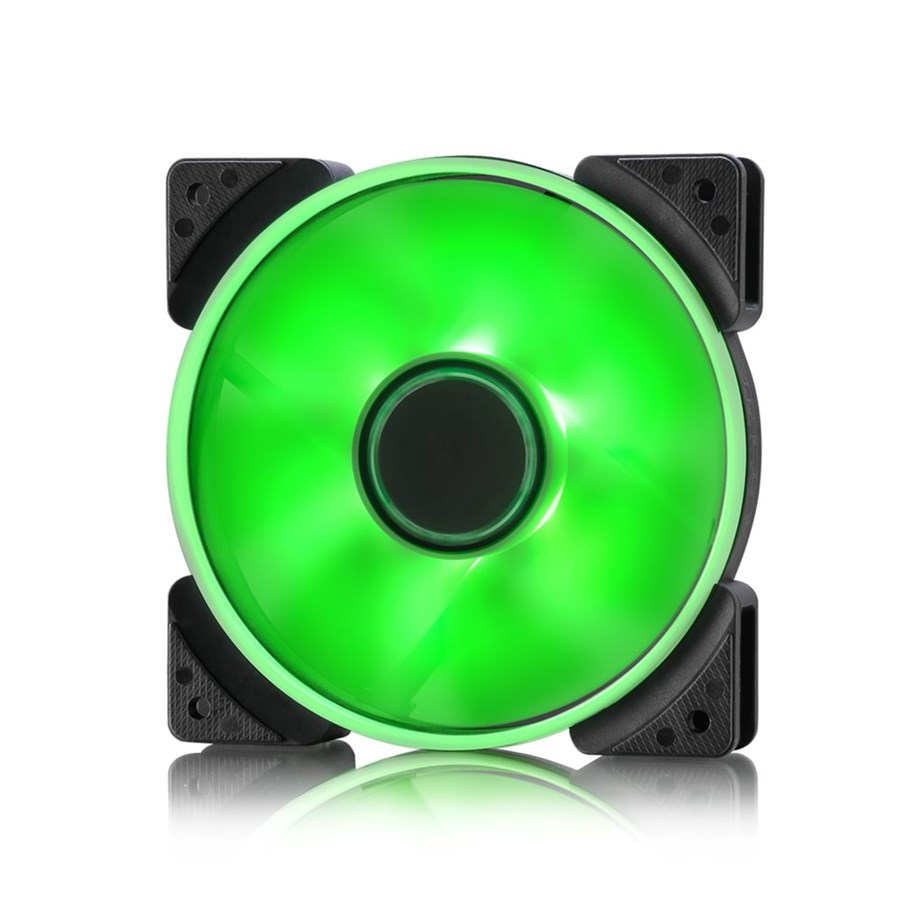

Fractal Design Prisma SL-12 - Green - Gehäuselüfter - 120mm - Grün - 20 dBA

Gehäusekühler, Größe: 120mm x 120mm x 25mm (HxBxT), Geräuschpegel: 19.5 dBA, Luftstrom: 50.63 CFM, Drehgeschwindigkeit: 1200 ±10%, 3 pins mainboard anschluss, schwarz mit grön Licht

Auf Lager
Normalpreis 13,27 €
9,90 €
8,32 € exkl. MwSt.
Begrenzte Anzahl – Nur 5 Stück pro Kunde
Aktionszeitraum: 19.11.2026 - 30.11.2026. Aktionspreis gültig für begrenzte Stückzahl. Die Aktion endet, wenn das Verkaufslimit erreicht ist.
Günstigste Versandoption 2,99 €
8 Stk. auf Lager. 1-4 Werktage Lieferzeit

Fractal Design Prisma SL Series fans allow your system to truly shine. Six hub-mounted LEDs work in harmony with a white semi-opaque outer ring and fan blades to produce a beautifully uniform glow across the fan’s entire surface.

As with any Fractal Design fan, silence remains a central focus with premium LLS bearings as standard the entire series, ensuring Prisma is seen, not heard.

Prisma’s striking selection of colors includes red, green, blue and white with a choice of 120mm and 140mm sizes to make any build shine brilliantly.

Key features

  • Six vibrantly colored hub-mounted LEDs
  • Specially designed fan blades and outer ring produce a uniform glow
  • LLS (Long Life Sleeve) bearings provide silent operation with a long lifespan
  • Trip Wire technology introduces a micro-turbulent layer for enhanced blade efficiency
  • Aerodynamic stator struts with embedded wiring reduce noise and turbulence
  • Easily concealed black stealth ribbon cable
  • Available colors include Red, Green, Blue, and White
  • 120mm and 140mm sizes available

Specifications

Size

120 x 120 x 25 mm

Blade color

Semi-opaque white

Frame color

Black

LED type

Single color

Screw hole pattern

105 x 105 mm

Power connector

3-pin

Bearing

LLS

Number of blades

7

Rotational speed

1200 RPM

Noise level

 19.5 dB(A)

Airflow (CFM)

 50.63 CFM

Airflow (m3/h)

86.02 m3/h

Static pressure

 1.27 mmH2O

Fan input power

 3.0W

Fan max input current

 0.25A

Fan input voltage

12V

Fan starting voltage

6V

LED input power

 1.80W

LED max input current

 0.15A

LED input voltage

12V

MTBF

100,000 hrs.

Fan weight

138 g

Package weight

162 g

Cable length

500 mm ±10 mm

Cable type

Black ribbon cable

Packaging dimensions

(Including hanging tab)

182 x 122 x 26 mm

Packaging dimensions

(Excluding hanging tab)

147 x 122 x 26 mm



Package contents

  • Prisma SL-12 120mm fan
  • 4 x fan screws

Hersteller
Waren-Nr.
2721874
Modell
FD-FAN-PRI-SL12-GN
EAN
7340172701231
Produktbeschreibung
Fractal Design Prisma SL-12 - Gehäuselüfter
Produkttyp
Gehäuselüfter
Packungsinhalt
4 Lüfterschrauben
Farbe
Schwarz, grün
Lüfterdurchmesser
120 mm
Gebläsehöhe
25 mm
Lüfterlager
Langlebiges Gleitlager
Drehgeschwindigkeit
1200 U/min
Luftstrom
86,02 m³/h (50,63 CFM)
Geräuschpegel
19.5 dBA
Netzanschluss
Lüfteranschluss, 3-polig
Nennspannung
12 V
Merkmale
Grüne LEDs, Stolperdraht Technologie
Abmessungen (Breite x Tiefe x Höhe)
12 cm x 12 cm x 2.5 cm
Gewicht
138 g

Allgemein

Produkttyp
Gehäuselüfter
Packungsinhalt
4 Lüfterschrauben
Breite
12 cm
Tiefe
12 cm
Höhe
2.5 cm
Gewicht
138 g
Farbe
Schwarz, grün

Kühlkörper und Lüfter

Lüfterdurchmesser
120 mm
Gebläsehöhe
25 mm
Lüfterlager
Langlebiges Gleitlager
Drehgeschwindigkeit
1200 U/min
Luftstrom
86,02 m³/h (50,63 CFM)
Luftdruck
1.27 mm
Geräuschpegel
19.5 dBA
Netzanschluss
Lüfteranschluss, 3-polig
Nennspannung
12 V
Startspannung
6 V
Nennstrom
0.25 A
Energieverbrauch
3 W
Kabellänge
50 cm
Merkmale
Grüne LEDs, Stolperdraht Technologie

Verschiedenes

MTBF
100,000 Stunde(n)
