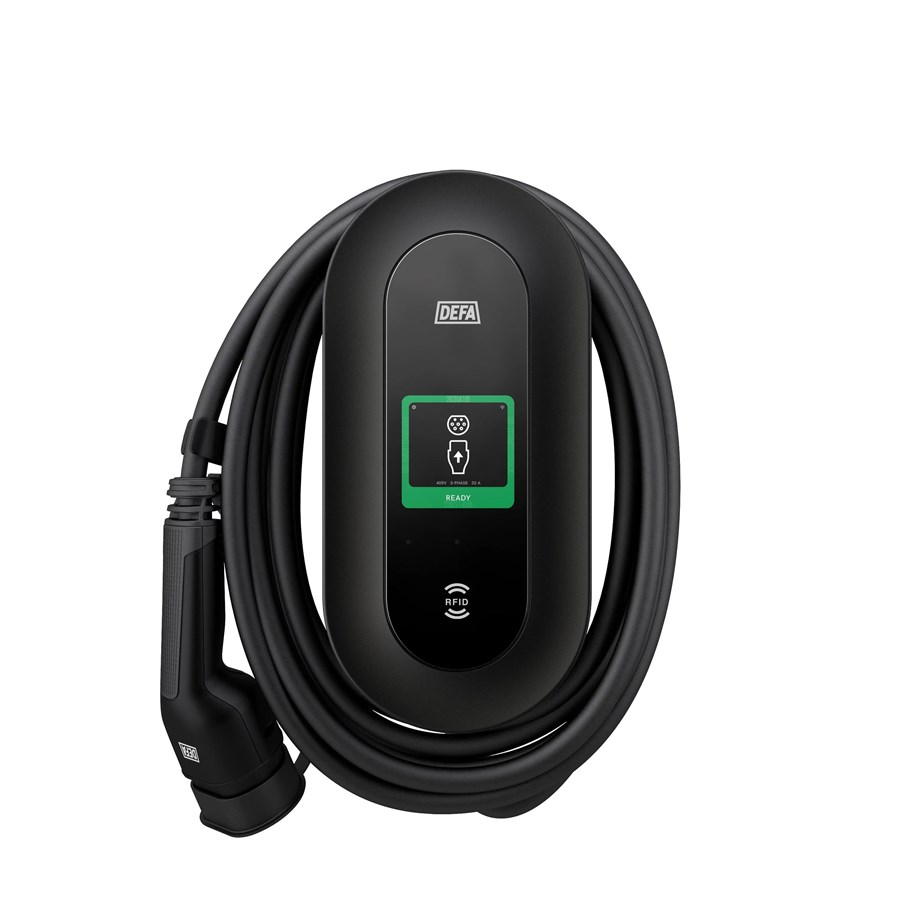

Defa Power Home charging box 22kW incl. 6 meter cable 4/5G and WiFi Black
DEFA Power is a 22kW charger equipped with a user-friendly display and a 6 meter fixed eConnect charging cable that simplifies daily use. With PowerSmart power management, you can charge at the lowest cost and maximum power, while WiFi, 4/5G or LAN connectivity provides flexible installation. DEFA Power also handles all power and phase requirements in all European markets, making it a reliable and future-proof solution.
Please note that the charging box must be installed and removed by an authorized installer, otherwise the warranty will be void.
DEFA Power – charging station with 22kW, 6 meter fixed cable and display. The smartest way to manage power, so you can charge at the lowest price with maximum power.
- Optimizes available power.
- Connects with WiFi, 4/5G or LAN.
- Handles all power and phase needs in all European markets.
- With PowerSmart, price peaks are avoided when electricity is most expensive.
Specifications
- Dimensions (mm): H:350 x W:167 x D:113
- Unit weight: 2.5 kg
- Cable weight: 3.5 kg
- Operating temperature: -40 °C to +50 °C
- Storage temperature: -50 °C to +85 °C
- Charging unit material: Plastic
- Charging power: Up to 22 kW
- Charging current: 6-32 A (adjustable)
- Voltage: 230/400 V (1/3-phase, 50-60 Hz)
- Charging cable type: Mode 3
- Vehicle connection: Type 2
- Charging cable: Included, 6 m
- Integrated display Size: 69 mm x 69 mm
- Brightness: Automatically adjusts
- Power setting: App for setting DEFA Power
- IP: 55
- IC: 10
- Fire classification: UL94 V0
- Insulation class: I
- Overvoltage category: III
- Overheating protection: Internal sensor
- 5 year warranty
