Waren-Nr.: 3514105

PLANET WDAP-C3000AX - radio access point - dual band 300 Mbps with 802.3at PoE+ and 2 10/100/1000T LAN ports - Wi-Fi 6

Accesspoint, dual band, 300 Mbps with 802.3at PoE+ and 2 x 10/100/1000T LAN port, Wi-Fi 6, 5 GHz, 2.4 GHz deckenmontierbar

92,01 € 77,32 € exkl. MwSt.
Günstigste Versandoption 4,99 €
Verfügbar - 3-5 Werktage Lieferzeit

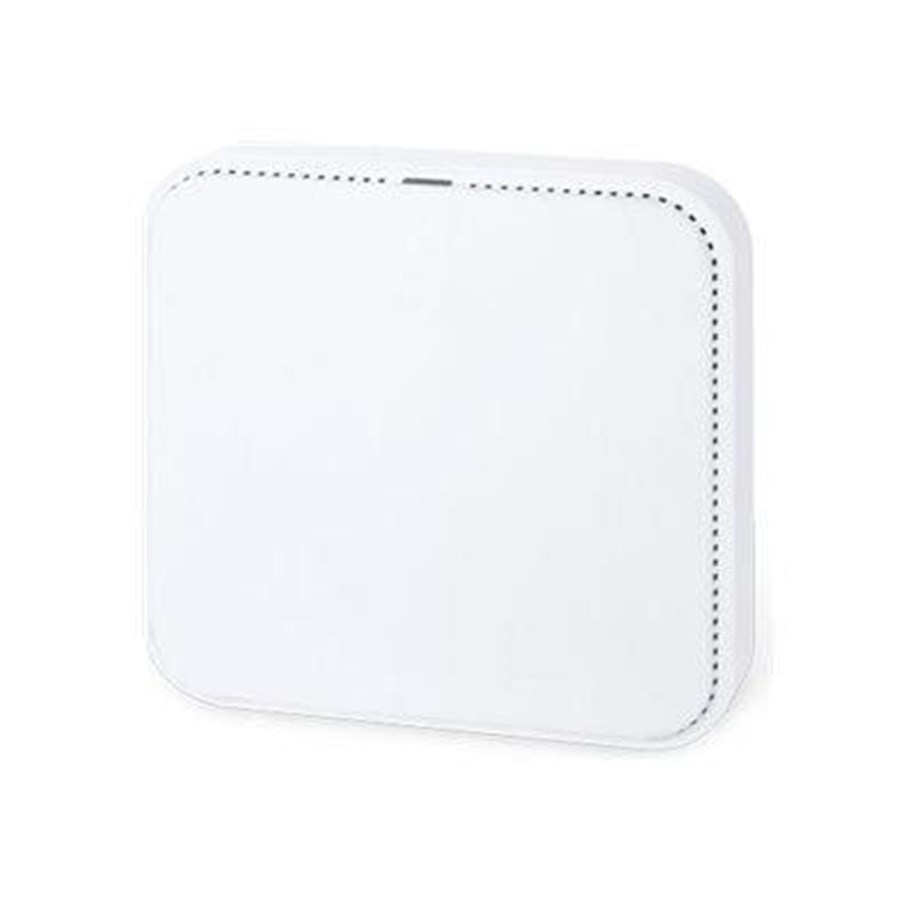

The PLANET Technology WDAP-C3000AX is a ceiling-mountable wireless access point designed to deliver dependable Wi‑Fi 6 connectivity for busy office or campus environments. It provides dual-band coverage across 2.4 GHz and 5 GHz to support mixed device deployments, helping maintain responsive connections for streaming, conferencing, and day-to-day network tasks. With support for up to 256 clients and up to 32 configured SSIDs, the device helps accommodate multiple users and network segments while offering secure access through WPA3 and WPA2 encryption.Powered by PoE+ and equipped with two Gigabit Ethernet ports, the WDAP-C3000AX simplifies installation and network integration while consuming modest operational power. Built-in features such as mesh networking, seamless roaming, automatic channel selection, beamforming, and BSS Coloring help optimize wireless performance and coverage in crowded radio environments. The access point also supports both static and dynamic IP modes, a reset button for straightforward maintenance, and environmental tolerance for a range of operating temperatures and humidity levels.

Hersteller
Waren-Nr.
3514105
Modell
WDAP-C3000AX
EAN
4711605287203
Zum Hersteller:
Produktbeschreibung
PLANET WDAP-C3000AX - Accesspoint - dual band, 300 Mbps with 802.3at PoE+ and 2 x 10/100/1000T LAN port - Wi-Fi 6
Gerätetyp
Accesspoint
Formfaktor
Deckenmontierbar
Data Link Protocol
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6), IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Frequenzband
5 GHz, 2.4 GHz
Kapazität
Maximale Anzahl konfigurierter SSIDs: 32
Maximale Anzahl von Clients: 256
Power Over Ethernet (PoE)-Unterstützung
PoE+
Abmessungen (Breite x Tiefe x Höhe)
18.582 cm x 18.582 cm x 3.66 cm
Gewicht
380 g

Allgemein

Gerätetyp
Accesspoint
Breite
18.582 cm
Tiefe
18.582 cm
Höhe
3.66 cm
Gewicht
380 g

Netzwerk

Formfaktor
Deckenmontierbar
Anschlusstechnik
Kabellos
Datenübertragungsrate
300 Mbps
Leitungskodierformat
BPSK, QPSK, 64 QAM, 16 QAM, 256 QAM, 1024 QAM, CCK, OFDMA
Data Link Protocol
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6), IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Frequenzband
5 GHz, 2.4 GHz
Kapazität
Maximale Anzahl konfigurierter SSIDs: 32
Maximale Anzahl von Clients: 256
Statusanzeiger
Stromversorgung, System
Leistungsmerkmale
Reset-Taste, statischer IP-Modus, dynamischer IP-Modus, SSID-Übertragung, unterstützt Wi-Fi Multimedia (WMM), Vermaschtes Netz, Auto Channel Select (ACS), nahtloses Roaming, Beamforming-Technologie, BSS Färbung
Verschlüsselungsalgorithmus
WPA3, WPA2, TKIP, AES, WPA
Produktzertifizierungen
IEEE 802.11ax, IEEE 802.11ac, IEEE 802.11n, IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11i, IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.11k

Antenne

Antenne
Intern
Antennenzahl
4

Erweiterung/Konnektivität

Schnittstellen
2 x 1000Base-T - RJ-45

Verschiedenes

Kennzeichnung
RoHS

Stromversorgung

Power Over Ethernet (PoE)-Unterstützung
PoE+
Leistungsaufnahme im Betrieb
15 watt

Umgebungsbedingungen

Min Betriebstemperatur
-20 °C
Max. Betriebstemperatur
55 °C
Zulässige Luftfeuchtigkeit im Betrieb
10 - 90 % (nicht-kondensierend)
