Waren-Nr.: 3325337

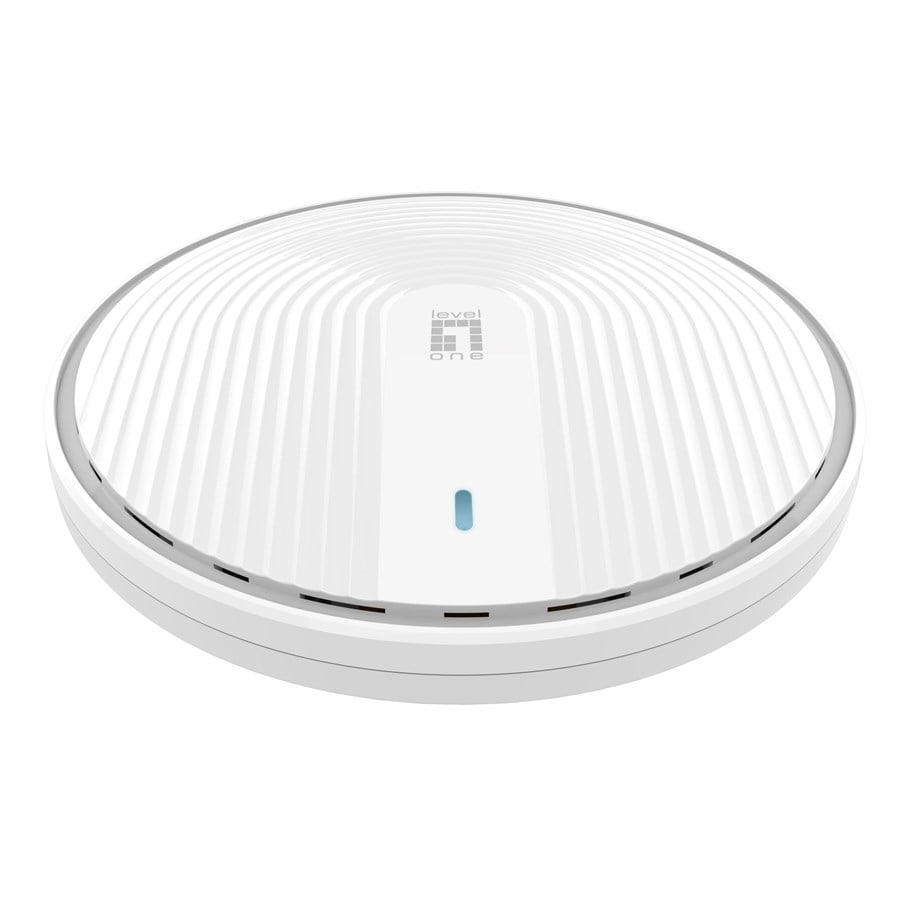

LevelOne WAP-8131 AX1800 Dual Band Wi-Fi 6 PoE Wireless Access Point

Accesspoint, Wi-Fi 6, 2.4 GHz, 5 GHz

157,34 € 132,22 € exkl. MwSt.
Günstigste Versandoption 4,99 €
Verfügbar - 3-5 Werktage Lieferzeit

The WAP-8131 wireless access point by Digital Data Communications in the LevelOne product line delivers performance for various networking needs. With a data transfer rate of 1775 Mbps, this device ensures efficient connectivity for both home and office environments. The WAP-8131 supports multiple Wi-Fi bands, including 2.4 GHz and 5 GHz, allowing for flexible network configurations and optimal performance across various applications.Equipped with four internal antennas offering 4 dBi gain, the access point is designed to provide reliable wireless coverage. With support for a maximum of eight configured SSIDs and advanced features like MU-MIMO technology, this device is suitable for environments that require multiple network configurations and efficient data handling. The WAP-8131 operates under a wide range of environmental conditions, with a maximum operating temperature of 55°C and a humidity range of 10 to 90%.

Hersteller
Waren-Nr.
3325337
Modell
WAP-8131
EAN
4015867227879
Zum Hersteller:
Produktbeschreibung
LevelOne WAP-8131 - Accesspoint - Wi-Fi 6
Gerätetyp
Accesspoint
Formfaktor
Extern
Prozessor
Qualcomm IPQ6000
RAM
512 MB
Flash-Speicher
128 MB
Data Link Protocol
IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac
Frequenzband
2.4 GHz, 5 GHz
Leistung
Maximale Datenrate (2,4 GHz): 574 Mbps
Maximale Datenrate (5 GHz): 1201 Mbps
Kapazität
Maximale Anzahl konfigurierter SSIDs: 8
Zubehör im Lieferumfang
Mounting screws
Power Over Ethernet (PoE)-Unterstützung
PoE
Abmessungen (Breite x Tiefe x Höhe)
18.6 cm x 18.6 cm x 4.25 cm
Gewicht
420 g

Allgemein

Gerätetyp
Accesspoint
Breite
18.6 cm
Tiefe
18.6 cm
Höhe
4.25 cm
Gewicht
420 g
Farbe
Weiß

Prozessor / Arbeitsspeicher / Speicherkapazität

Installierte Prozessoren
Qualcomm IPQ6000
RAM
512 MB
Flash-Speicher
128 MB

Netzwerk

Formfaktor
Extern
Anschlusstechnik
Kabellos
Datenübertragungsrate
1775 Mbps
Leitungskodierformat
OFDMA
Data Link Protocol
IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac
Remoteverwaltungsprotokoll
HTTP
Frequenzband
2.4 GHz, 5 GHz
Leistung
Maximale Datenrate (2,4 GHz): 574 Mbps
Maximale Datenrate (5 GHz): 1201 Mbps
Kapazität
Maximale Anzahl konfigurierter SSIDs: 8
WLAN-Rating
AX1800
Statusanzeiger
Wi-Fi
Leistungsmerkmale
Repeater-Modus, Betriebsmodus „Access-Point“, geeignet für Wandmontage, WISP-Modus, mehrfacher SSID-Support, Deckenmontage möglich, MU-MIMO-Technologie, Gateway-Modus
Verschlüsselungsalgorithmus
AES, WPA3-Personal, WPA2-Personal
Produktzertifizierungen
IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.11b, IEEE 802.11a, IEEE 802.3af, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax

Antenne

Antenne
Intern
Antennenzahl
4
Gain Level
4 dBi

Erweiterung/Konnektivität

Schnittstellen
2 x 1000Base-T - RJ-45

Verschiedenes

Zubehör im Lieferumfang
Mounting screws
Enthaltene Kabel
1 x Netzwerkkabel
Kennzeichnung
RoHS

Stromversorgung

Power Over Ethernet (PoE)-Unterstützung
PoE
Leistungsaufnahme im Betrieb
14 Watt

Umgebungsbedingungen

Max. Betriebstemperatur
55 °C
Zulässige Luftfeuchtigkeit im Betrieb
10 - 90%

Die genannten Informationen und Spezifikationen können vom Hersteller jederzeit und ohne vorherige Ankündigung geändert werden. Die Herstellerabbildungen dienen ausschließlich der Veranschaulichung. Irrtümer und Schreibfehler bleiben vorbehalten. Deutsche Bedienungsanleitungen sind in einigen Fällen ausschließlich digital verfügbar und nicht Bestandteil des Lieferumfangs. Teile des Textes wurden möglicherweise automatisiert erstellt oder maschinell übersetzt und können daher in Einzelfällen missverständlich sein.
