Waren-Nr.: 2933703

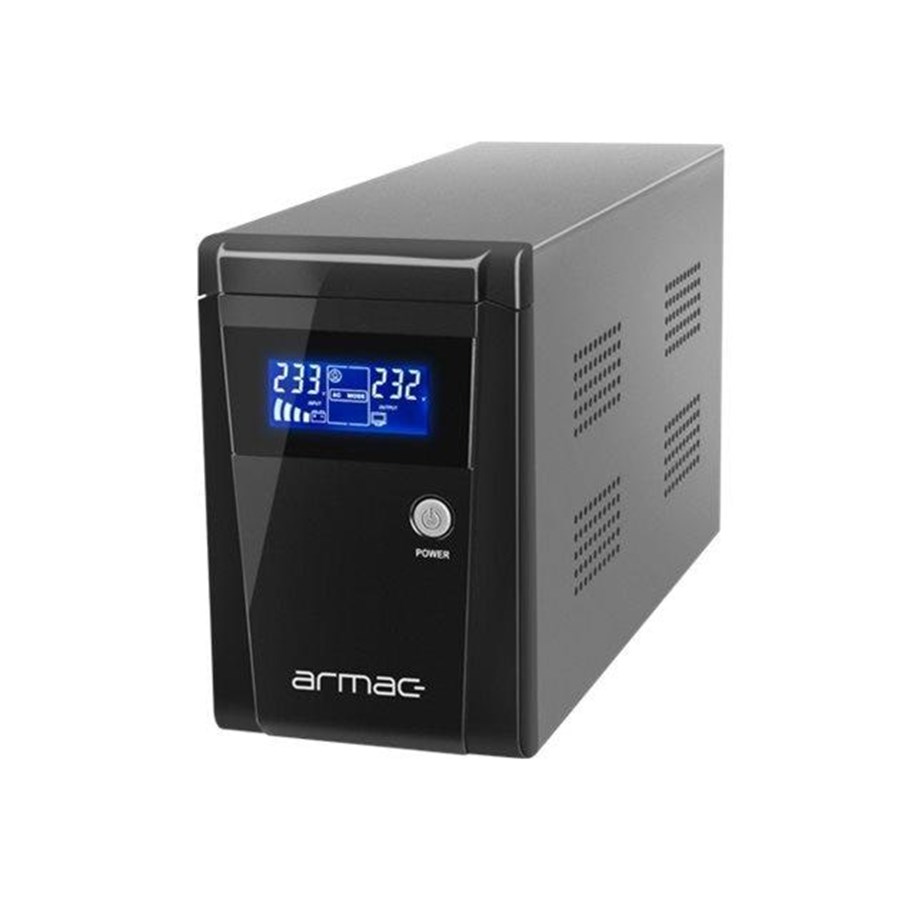

Armac Office Interactive 1000F

USV, AC 145, 290 V, 650 watt, 1000 VA, 2 x Batterie, Bleisäure, 7 Ah, USB, Ausgangsanschlüsse: 3

95,98 € 80,66 € exkl. MwSt.
Günstigste Versandoption 4,99 €
Bestellware - 9-11 Tage Lieferzeit

This series is perfect for users who need a UPS with a control panel. The Office series is equipped with an LCD panel for current monitoring of work parameters such as input / output voltage, battery charge level / loads, current work mode and other indications.Application of a CPU in the UPS devices allows for complex protection by automatic voltage adjustment and stabilization within the safe range. The CPU controlling technology triggers immediate reaction by adjusting low or high voltage, voltage peaks and drops, UPS overloads as well as it protects the battery from complete discharge. The device ensures an automatic activation after the mains power supply is recovered as well as automatic charging in the stand-by mode.The UPS has been additionally equipped with two RJ-45 ports, which work as a surge protection for telephone lines or ICT wiring. On the back of the casing there is an extra USB port to provide the user with higher control over the device and its parametrization. The PowerManager software enables remote monitoring in the real time of the UPS state and its working environment, sending messages to separate preset network target addresses, automatic registration of work time and shutoff of software if it is necessary to terminate power supply by the UPS.The function of quieter operation shall meet the expectations of the most demanding users who appreciate silent operation. Irrespective of the working mode it allows to silence all sounds which do not signal problems while the device is running on battery power. Due to the precision of the manufacturer the UPS provides clear and stable supply of power to the connected equipment which makes a reliable emergency supply system for every office.

Hersteller
Waren-Nr.
2933703
Modell
O/1000F/LCD
EAN
5901969406641
Zum Hersteller:
Produktbeschreibung
Armac Office Interactive 1000F - USV - 650 watt - 1000 VA - Bleisäure - 7 Ah
Gerätetyp
USV - extern
Gewicht
9.5 kg
Eingangsspannung
AC 145 - 290 V
Ausgangsspannung
AC 195-255 V
Leistungskapazität
650 watt / 1000 VA
Eingangsanschlüsse
1
Ausgabeanschlussstellen
3 x power CEE 7/3
Batterie
Bleisäure - 7 Ah
Anz. Batterien
2
Betriebszeit (bis zu)
3 Min. bei voller Last
Netzwerk
USB
Abmessungen (Breite x Tiefe x Höhe)
12 cm x 35 cm x 18.8 cm

Allgemein

Gerätetyp
USV - extern

Stromversorgungsgerät

UPS-Technologie
Line-Interactive
Eingangsspannung
AC 145 - 290 V
Vorhandene Spannung
50/60 Hz
Eingangsspannungsbereich
± 5 V
Nötige Frequenz
45 - 65 Hz
Eingangsanschlüsse
1
Angaben zu Ausgangsleistungsanschlüssen
3 x power CEE 7/3
Ausgangsspannung
AC 195-255 V 50/60 Hz
Leistungskapazität
650 watt / 1000 VA
Überspannungsschutz für Datenleitungen
Telefonleitung - RJ-45/RJ-11 - 1 Eingangs-/1 Ausgangsleitung
Ausgabe Wellenform
Schrittweise Annäherung an eine Sinuswelle
Schutzschaltung
Sicherung

Batterie

Menge
2
Technologie
Bleisäure
Kapazität
7 Ah
Übertragungszeit
6 ms
Besonderheiten
AGM, versiegelt

Netzwerk

Remote-Verwaltungsschnittstelle
USB

Erweiterung/Konnektivität

Schnittstellen
1 x Verwaltung (USB) - 4-poliger USB Typ B

Verschiedenes

Besonderheiten
Für Einsatz im Innenbereich, LCD Anzeige, Überlastungsschutz, Entladungsschutz, Kurzschlussschutz, Automatische Spannungsregelung (Automatic Voltage Regulation, AVR), automatischer Selbsttest

Umgebungsbedingungen

Min Betriebstemperatur
0 °C
Max. Betriebstemperatur
45 °C
Zulässige Luftfeuchtigkeit im Betrieb
10 - 90 % (nicht-kondensierend)
Geräuschentwicklung
(45 dB bei Akkubetrieb)

Abmessungen und Gewicht

Breite
12 cm
Tiefe
35 cm
Höhe
18.8 cm
Gewicht
9.5 kg
