Waren-Nr.: 2933698

Armac Home

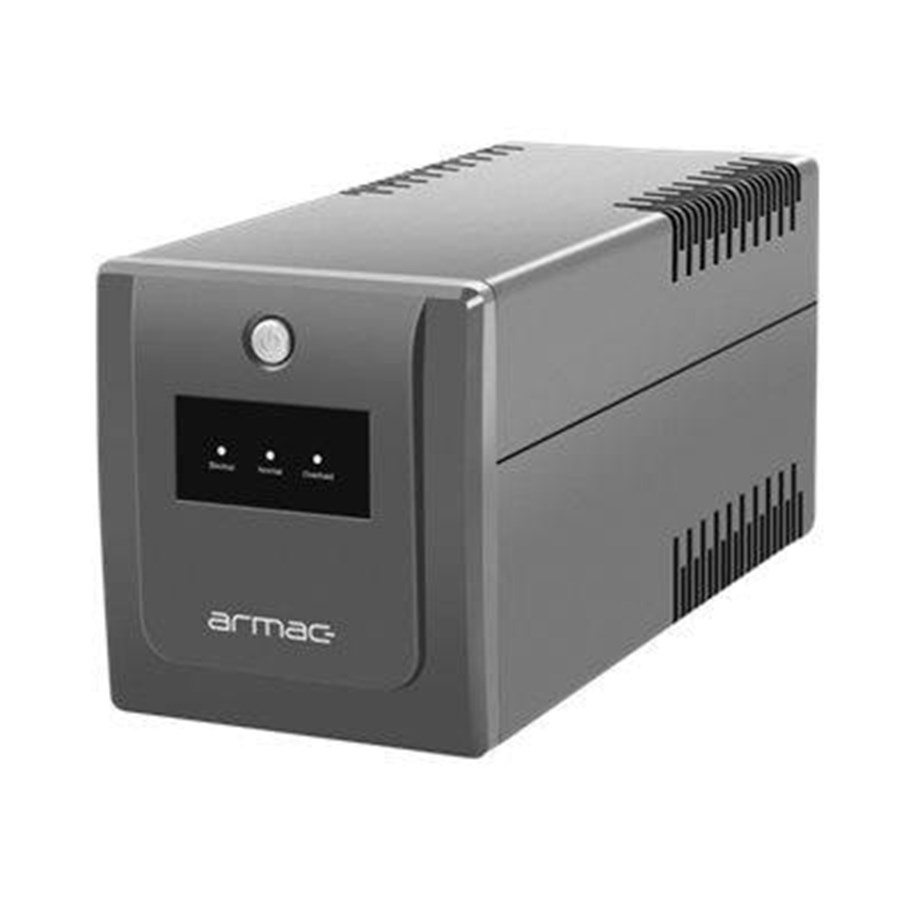

USV, Wechselstrom 230 V, 1500 VA, 9 Ah, 9 Ah, USB, Ausgangsanschlüsse: 4

148,32 € 124,64 € exkl. MwSt.
Günstigste Versandoption 4,99 €
Bestellware - 9-11 Tage Lieferzeit

This device provides full protection and high efficiency at a small size and reasonable price. The UPS can be used for sustaining the operation of such equipment like computers, laptops, game consoles, televisions, routers, and switches.A built-in CPU controls parameters and proper operation of the device. Application of the CPU in the UPS devices allows for complex protection by automatic voltage adjustment and stabilization within the safe range. The CPU controlling technology triggers an immediate reaction by adjusting low or high voltage, voltage peaks and drops, UPS overloads as well as it protects the battery from complete discharge.The UPS has been additionally equipped with two RJ-45 ports, which work as surge protection for a telephone line or ICT wiring. On the back of the casing, there is an extra USB port to provide the user with higher control over the device and its parametrization.The PowerManager software enables remote monitoring in the real-time of the UPS state and its working environment, sending messages to separate preset network target addresses, automatic registration of work time, and shutoff of software if it is necessary to terminate power supply by the UPS.The function of quieter operation shall meet the expectations of the most demanding users who appreciate silent operation. Irrespective of the working mode it allows silencing all sounds which do not signal problems while the device is running on battery power. The UPS provides a clear and stable supply of power to the connected equipment which makes a reliable emergency supply system for every household and office.

Hersteller
Waren-Nr.
2933698
Modell
H/1500F/LED
EAN
5901969406573
Zum Hersteller:
USV-Topologie
Line-Interaktiv
Ausgangskapazität
1,5 kVA
Wellenform
Sine
Eingangs-Betriebsspannung (min)
145 V
Eingangs-Betriebsspannung (max)
290 V
Eingangsfrequenz
50 Hz
Ausgangs-Betriebsspannung (min)
195 V
Ausgangs-Betriebsspannung (max)
255 V
Output Frequenz
50 Hz
Automatische Spannungsregulierung
Ja
Geräuschpegel
45 dB
Energieschutzeigenschaften
Tiefentladeabschaltung, Überlastschutz, Kurzschluß
Energiequelle
AC
AC-Steckertypen
Typ F
Anzahl der AC-Ausgänge
4 AC-Ausgänge
Anzahl Ethernet-LAN-Anschlüsse (RJ-45)
2
Batteriekapazität
9 Ah
Akku-/Batteriespannung
12 V
Typische Backup-Zeit bei voller Belastung
3 min
Akkuladezeit
6 h
Produktfarbe
Schwarz
Display-Typ
LED
Betriebstemperatur
0 - 45 °C
Relative Luftfeuchtigkeit in Betrieb
10 - 90%
Betriebsanleitung
Ja
Breite
97 mm
Tiefe
315 mm
Höhe
142 mm
Gewicht
1,5 kg
Batteriegewicht
4,7 kg

Merkmale

USV-Topologie
Line-Interaktiv
Ausgangskapazität
1,5 kVA
Wellenform
Sine
Eingangs-Betriebsspannung (min)
145 V
Eingangs-Betriebsspannung (max)
290 V
Eingangsfrequenz
50 Hz
Ausgangs-Betriebsspannung (min)
195 V
Ausgangs-Betriebsspannung (max)
255 V
Output Frequenz
50 Hz
Automatische Spannungsregulierung
Ja
Geräuschpegel
45 dB
Energieschutzeigenschaften
Tiefentladeabschaltung, Überlastschutz, Kurzschluß
Energiequelle
AC

Anschlüsse und Schnittstellen

AC-Steckertypen
Typ F
Anzahl der AC-Ausgänge
4 AC-Ausgänge
Anzahl Ethernet-LAN-Anschlüsse (RJ-45)
2

Akku/Batterie

Batteriekapazität
9 Ah
Akku-/Batteriespannung
12 V
Typische Backup-Zeit bei voller Belastung
3 min
Akkuladezeit
6 h

Design

Produktfarbe
Schwarz
Display-Typ
LED

Betriebsbedingungen

Betriebstemperatur
0 - 45 °C
Relative Luftfeuchtigkeit in Betrieb
10 - 90%

Lieferumfang

Betriebsanleitung
Ja

Gewicht und Abmessungen

Breite
97 mm
Tiefe
315 mm
Höhe
142 mm
Gewicht
1,5 kg
Batteriegewicht
4,7 kg
