Waren-Nr.: 2434575

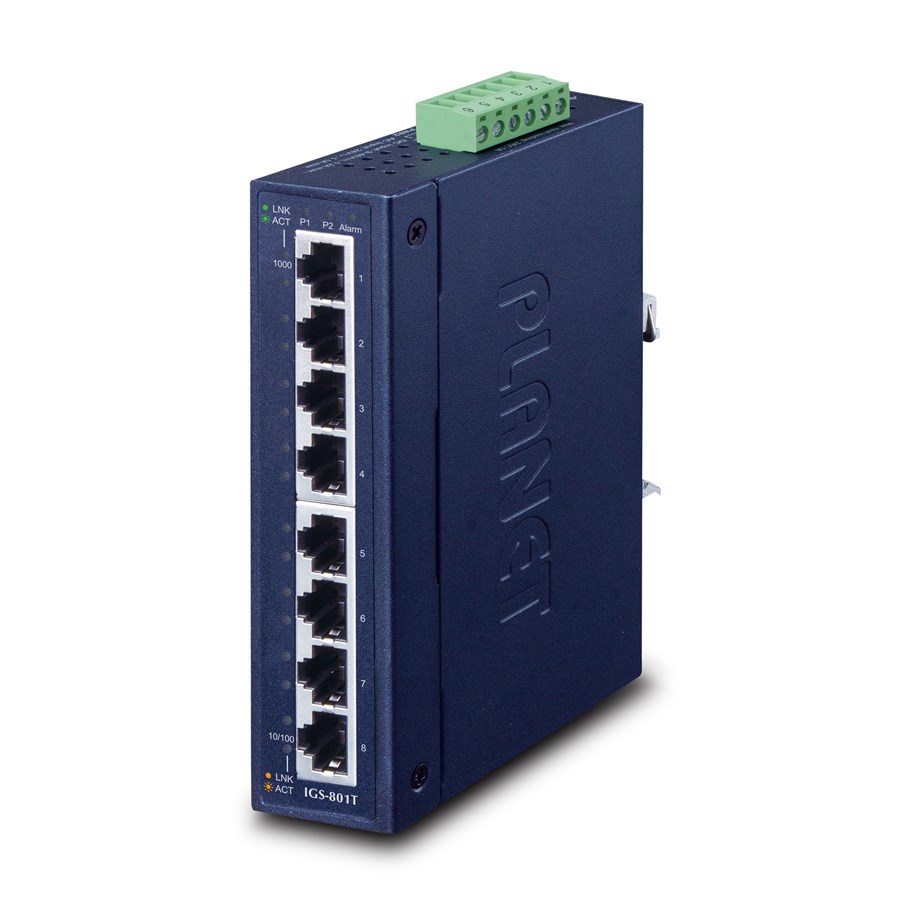

PLANET IGS-801T 8-Port 10/100/1000T Industrial Gigabit Ethernet Switch
Switch, 8 x 10/100/1000, an DIN-Schiene montierbar
151,53 €
127,34 € exkl. MwSt.
Günstigste Versandoption 4,99 €
Verfügbar - 3-5 Werktage Lieferzeit
The compact, IP-30 standard metal case IGS-801T allows either DIN rail or wall mounting for efficient use of cabinet space. The IGS-801T equips with 8 10/100/1000Mbps auto negotiation ports and operates reliably in heavy industrial demanding environments.
The IGS-801T provides a high level of immunity against electromagnetic interference and heavy electrical surges which are usually found on plant floors or in curb side traffic control cabinets. The IGS-801T can be placed in almost any difficult environment. The IGS-801T also possesses an integrated power supply source with wide range of voltages for worldwide high availability applications requiring dual or backup power inputs.
The IGS-801T offers high performance switch architecture. With the 8 10/100/1000Mbps Gigabit Ethernet ports providing non-blocking switch fabric and wire-speed throughput and the 8K MAC address table, the IGS-801T can perform wire-speed packets transfer without risk of packet loss.
The IGS-801T provides a high level of immunity against electromagnetic interference and heavy electrical surges which are usually found on plant floors or in curb side traffic control cabinets. The IGS-801T can be placed in almost any difficult environment. The IGS-801T also possesses an integrated power supply source with wide range of voltages for worldwide high availability applications requiring dual or backup power inputs.
The IGS-801T offers high performance switch architecture. With the 8 10/100/1000Mbps Gigabit Ethernet ports providing non-blocking switch fabric and wire-speed throughput and the 8K MAC address table, the IGS-801T can perform wire-speed packets transfer without risk of packet loss.
Hersteller
Waren-Nr.
2434575
Modell
IGS-801T
EAN
4711213687792
Zum Hersteller:
Switch-Typ
Unmanaged
Switch-Ebene
L2
Quality of Service (QoS) Support
Ja
Anzahl der basisschaltenden RJ-45 Ethernet Ports
8
Basic Switching RJ-45 Ethernet Ports-Typ
Gigabit Ethernet (10/100/1000)
Anzahl installierten SFP Module
0
Anzahl installierte SFP Module
0
Anzahl Gigabit Ethernet (Kupfer) Anschlüsse
8
Netzstandard
IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
10G-Unterstützung
Nein
Kupfer Ethernet Verkabelungstechnologie
10BASE-T, 100BASE-TX, 1000BASE-T
unterstütze Kabeltypen
Cat3, Cat4, Cat5, Cat5e, Cat6
Vollduplex
Ja
Unterstützung Datenflusssteuerung
Ja
Broadcast-Sturmkontrolle
Ja
Auto MDI/MDI-X
Ja
Auto-Negotiation-Funktion
Ja
Selbstlernen von MAC-Adressen unterstützt
Ja
Auto-Alterung von MAC-Adressen unterstützt
Ja
MAC-Adressentabelle
4000 Eintragungen
Routing-/Switching-Kapazität
16 Gbit/s
Durchgang
11,9 Mpps
Store-and-Forward
Ja
Jumbo Frames Unterstützung
Ja
Jumbo-Frames
9000
Rack-Einbau
Nein
Produktfarbe
Blau
Gehäusematerial
Metall
Internationale Schutzart (IP-Code)
IP30
Wandmontage
Ja
DIN-Schienen-Montage
Ja
Unterstützung für redundantes Netzteil
Ja
Stromverbrauch (Standardbetrieb)
6,72 W
Power over Ethernet (PoE)
Nein
Terminalblock-Anschluss
Ja
Betriebstemperatur
-40 - 75 °C
Temperaturbereich bei Lagerung
-40 - 75 °C
Relative Luftfeuchtigkeit in Betrieb
5 - 95%
Luftfeuchtigkeit bei Lagerung
5 - 95%
Wärmeableitung
23 BTU/h
Breite
32 mm
Tiefe
87 mm
Höhe
135 mm
Gewicht
476 g
Zertifizierung
FCC, CE
Warentarifnummer (HS)
85176990
Management-Funktionen
Switch-Typ
Unmanaged
Switch-Ebene
L2
Quality of Service (QoS) Support
Ja
Anschlüsse und Schnittstellen
Anzahl der basisschaltenden RJ-45 Ethernet Ports
8
Basic Switching RJ-45 Ethernet Ports-Typ
Gigabit Ethernet (10/100/1000)
Anzahl installierten SFP Module
0
Anzahl installierte SFP Module
0
Anzahl Gigabit Ethernet (Kupfer) Anschlüsse
8
Netzwerk
Netzstandard
IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
10G-Unterstützung
Nein
Kupfer Ethernet Verkabelungstechnologie
10BASE-T, 100BASE-TX, 1000BASE-T
unterstütze Kabeltypen
Cat3, Cat4, Cat5, Cat5e, Cat6
Vollduplex
Ja
Unterstützung Datenflusssteuerung
Ja
Broadcast-Sturmkontrolle
Ja
Auto MDI/MDI-X
Ja
Auto-Negotiation-Funktion
Ja
Selbstlernen von MAC-Adressen unterstützt
Ja
Auto-Alterung von MAC-Adressen unterstützt
Ja
Datenübertragung
MAC-Adressentabelle
4000 Eintragungen
Routing-/Switching-Kapazität
16 Gbit/s
Durchgang
11,9 Mpps
Store-and-Forward
Ja
Jumbo Frames Unterstützung
Ja
Jumbo-Frames
9000
Design
Rack-Einbau
Nein
Produktfarbe
Blau
Gehäusematerial
Metall
Internationale Schutzart (IP-Code)
IP30
Wandmontage
Ja
DIN-Schienen-Montage
Ja
Energie
Unterstützung für redundantes Netzteil
Ja
Stromverbrauch (Standardbetrieb)
6,72 W
Power over Ethernet (PoE)
Power over Ethernet (PoE)
Nein
Sonstige Funktionen
Terminalblock-Anschluss
Ja
Betriebsbedingungen
Betriebstemperatur
-40 - 75 °C
Temperaturbereich bei Lagerung
-40 - 75 °C
Relative Luftfeuchtigkeit in Betrieb
5 - 95%
Luftfeuchtigkeit bei Lagerung
5 - 95%
Wärmeableitung
23 BTU/h
Gewicht und Abmessungen
Breite
32 mm
Tiefe
87 mm
Höhe
135 mm
Gewicht
476 g
Zertifikate
Zertifizierung
FCC, CE
Logistikdaten
Warentarifnummer (HS)
85176990
