Waren-Nr.: 3158672

Tascam US-4x4HR - audio interface

Audio-Schnittstelle, 24-Bit, 192 kHz, 110 dB S/N, Stereo, USB 2.0

199,83 € 167,92 € exkl. MwSt.
Günstigste Versandoption 4,99 €
Verfügbar - 5-7 Werktage Lieferzeit

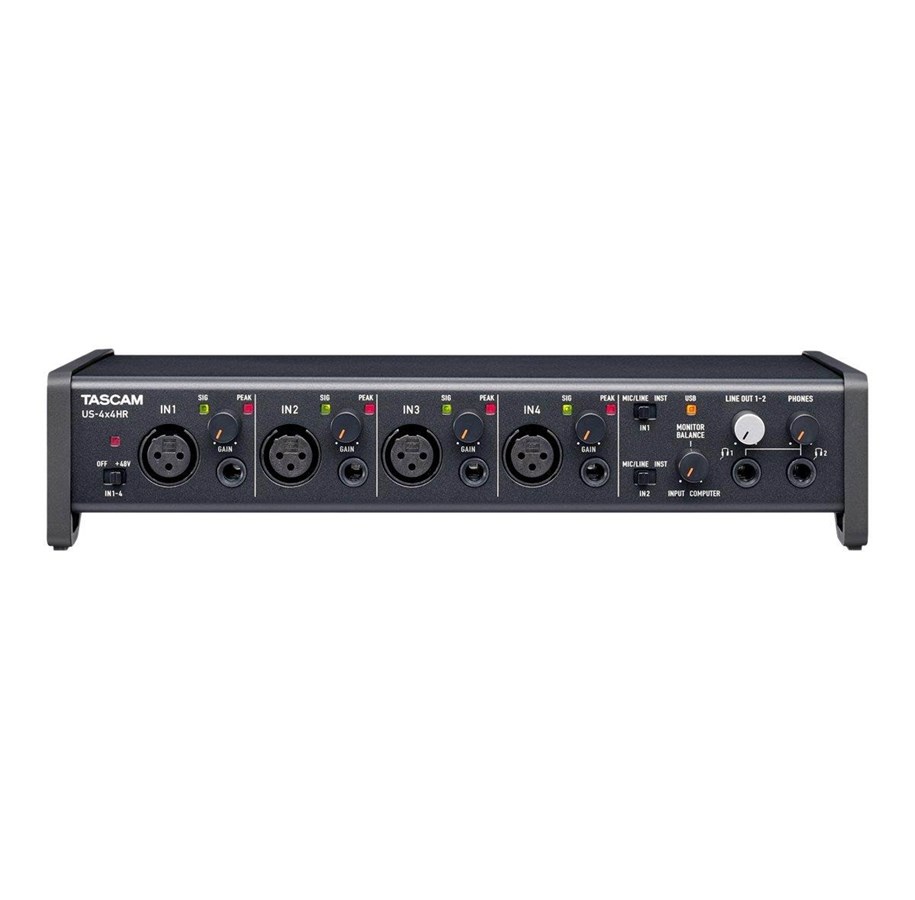

The four-channel US-4x4HR is a member of the Tascam US-HR series of high-resolution USB audio interfaces and an enhanced version of the popular Tascam US-4x4. It provides four mic/line inputs, two of which can alternatively be used for direct input of a guitar or bass, four balanced line outputs, two headphones connectors, and MIDI I/O to your Windows or Mac computer or your iPhone or iPad. This interface is ideal for multitrack recording of two instruments and two vocalists, for instance, or multi-media production with high demands on simple operation and studio-quality sound. The included loopback function and support for Open Broadcaster Software (OBS Studio), however, makes it also an excellent choice for two-channel podcast creation and live streaming.The versatile US-4x4HR incorporates a wealth of features, including high audio resolution up to 24-bit/192 kHz, ultra-low latency with a Windows buffer size starting at four samples, Ultra-HDDA mic preamplifiers with 48-volt phantom power for superior sound quality with ultra-low noise, a robust USB Type C connector, and a rich assortment of included software to start producing stunning audio right away.

Hersteller
Waren-Nr.
3158672
Modell
US-4x4HR
EAN
4907034132768
Zum Hersteller:
Produktbeschreibung
Tascam US-4x4HR - Audio-Schnittstelle - USB 2.0
Gerätetyp
Audio-Schnittstelle
Gehäusetyp
Extern
Schnittstellen Typ
USB 2.0
Abmessungen (Breite x Tiefe x Höhe)
29.6 cm x 16 cm x 6.5 cm
Gewicht
1.6 kg
Soundmodus
Stereo
DAC-Auflösung
24-Bit
Abtastfrequenz
44.1 kHz (Min.) - 192 kHz (Max)
Rauschabstand
110 dB
Systemanforderungen
Apple iOS 11 - 14, Apple iPadOS 14, Apple macOS Big Sur 11.0, Apple macOS Catalina 10.15, Apple macOS High Sierra 10.13, Apple macOS Mojave 10.14, Microsoft Windows 7 / 8.1 / 10

Allgemein

Gerätetyp
Audio-Schnittstelle
Formfaktor
Extern
Schnittstellen Typ
USB 2.0
Breite
29.6 cm
Tiefe
16 cm
Höhe
6.5 cm
Gewicht
1.6 kg

Audioausgang

Soundmodus
Stereo
DAC-Auflösung
24-Bit
Abtastfrequenz
44.1 kHz (Min.) - 192 kHz (Max)
Rauschabstand
110 dB
Frequenzgang
20 - 40000 Hz
Merkmale
Spannungsversorgung über USB-Bus

Erweiterung/Konnektivität

Schnittstellen
1 x USB 2.0 - 4-poliger USB Typ B
4 x Symmetrischer Ausgang - Telefon Stereo 6,35 mm
2 x Kopfhörer - Telefon Stereo 6,3 mm
1 x MIDI-Eingang - DIN 5-polig
1 x MIDI-Ausgang - DIN 5-polig
4 x Mikrofon - 3-poliges XLR
4 x Audio-Line-In - Telefon Stereo 6,35 mm

Verschiedenes

Enthaltene Kabel
1 x USB-Kabel

Software / Systemanforderungen

Software
Cubase LE, SampleTank 4 SE, Antares Auto-Tune Unlimited (3 Monate)
Erforderliches Betriebssystem
Apple iOS 11 - 14, Apple iPadOS 14, Apple macOS Big Sur 11.0, Apple macOS Catalina 10.15, Apple macOS High Sierra 10.13, Apple macOS Mojave 10.14, Microsoft Windows 7 / 8.1 / 10
Details der Systemanforderungen
2 GHz - RAM 2 GB

Umgebungsbedingungen

Min Betriebstemperatur
5 °C
Max. Betriebstemperatur
35 °C
