Logic Group ZIF5020 Z-Wave DIN-Rail Smart Module for Automation Systems

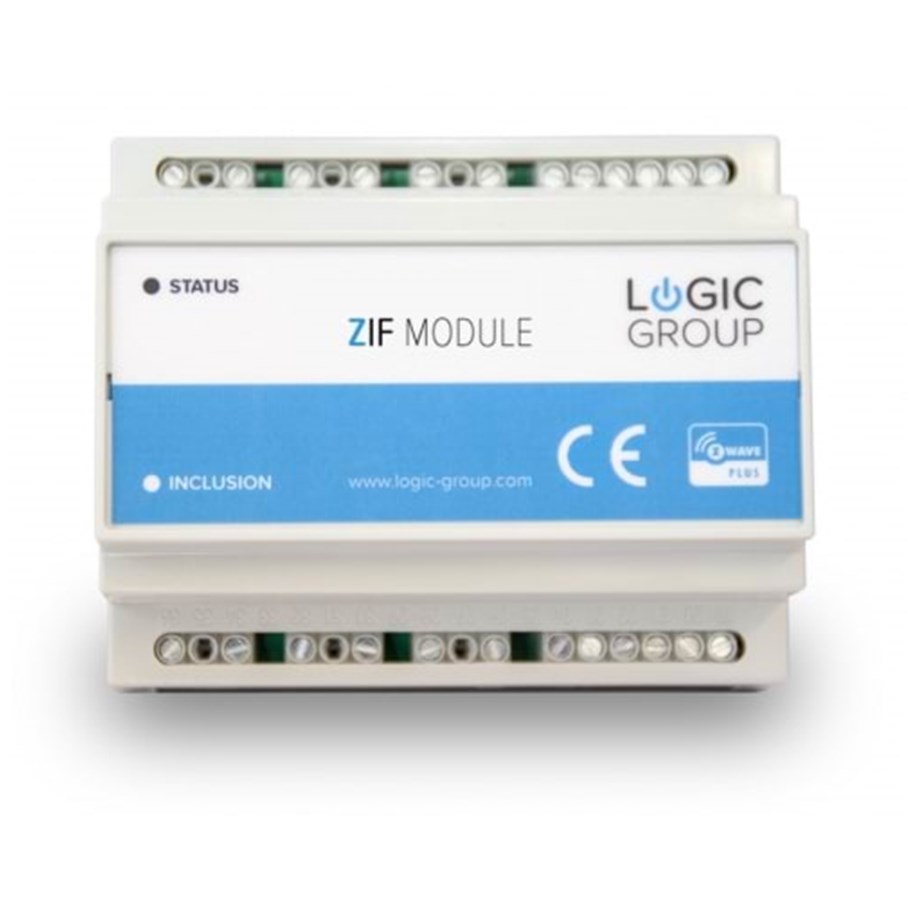

ZIF5020 a Z-Wave based device with 10 outputs and 4 inputs designed for mounting on a standard M36 DIN rail (EN50022). The 10 digital outputs (low-side switch) can be controlled freely over the Z-Wave network and used for various purposes. The 4 digital inputs can be connected to potential-free contacts, open-collector outputs, thereby enabling control of other Z-Wave based devices, such as relay modules, dimmers, curtain modules, etc. The 4 inputs of ZIF5020 enable activation of predefined scenes in a Z-Wave Controller unit. ZIF5020 can be powered with 10 – 24Vdc. Activation of Z-Wave inclusion and exclusion is done by activating a switch through a hole in the front of the module. ZIF5020 has a LED indicator on the front for status indication.
