Waren-Nr.: 3414189

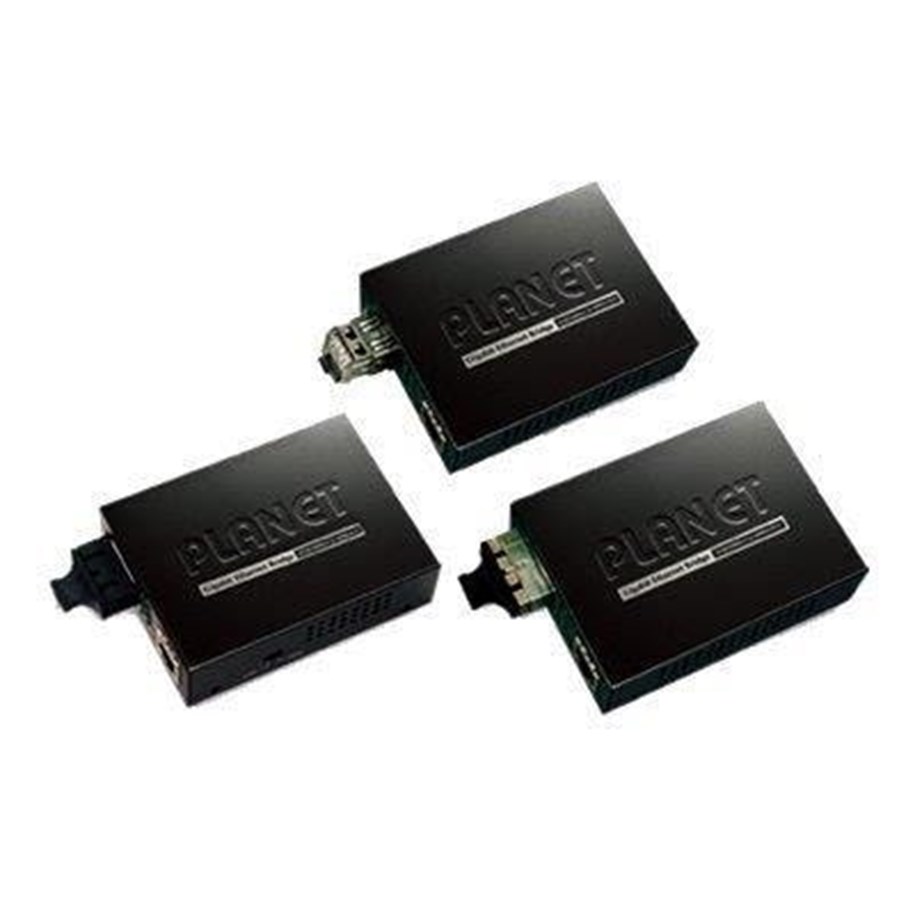

PLANET GT-802 - fibre media converter - 10Mb LAN 100Mb LAN 1GbE
Medienkonverter, 1GbE, 10Base-T, 1000Base-SX, 100Base-TX, 1000Base-T, RJ-45 / SC multi-mode, bis zu 550 m, 850 nm
76,69 €
64,45 € exkl. MwSt.
Günstigste Versandoption 2,99 €
Verfügbar - 4-6 Werktage Lieferzeit
Offering the flexibility with all kinds of Ethernet Media on RJ-45 port and performing highly stable Gigabit fiber capability, the Planet Gigabit media converter GT-802 offers SC connector, with multi mode media as required so that an Gigabit fiber network can be efficiently constructed through the Ethernet.
Designed in compact size, the GT-802 can be used as a standalone unit or being installed in the media converter chassis. The media chassis can feed GT-802 power to maintain the fiber-optic network at one location.
The installation of the Gigabit media conversion is quite quick and easy by simple plug and play. The GT-802 also supports flow control and back pressure in half duplex to eliminate packets loss. Even when the web UI is not available, the network manager still can remotely control and monitor GT-80X by terminal function such as remote failure indication, loop back test, port status and performance monitoring and troubleshooting.
Designed in compact size, the GT-802 can be used as a standalone unit or being installed in the media converter chassis. The media chassis can feed GT-802 power to maintain the fiber-optic network at one location.
The installation of the Gigabit media conversion is quite quick and easy by simple plug and play. The GT-802 also supports flow control and back pressure in half duplex to eliminate packets loss. Even when the web UI is not available, the network manager still can remotely control and monitor GT-80X by terminal function such as remote failure indication, loop back test, port status and performance monitoring and troubleshooting.
Hersteller
Waren-Nr.
3414189
Modell
GT-802
EAN
4711213686207
Zum Hersteller:
Produktbeschreibung
PLANET GT-802 - Medienkonverter - 10Mb LAN, 100Mb LAN, 1GbE
Gerätetyp
Medienkonverter - RJ-45 / SC multi-mode
Formfaktor
Extern
Verdrahtungstyp
10Base-T, 1000Base-SX, 100Base-TX, 1000Base-T
Datenübertragungsrate
1 Gbps
Optische Wellenlänge
850 nm
Data Link Protocol
10Mb LAN, 100Mb LAN, 1GbE
Maximaler Übertragungsbereich
550 m
Abmessungen (Breite x Tiefe x Höhe)
9.7 cm x 6.9 cm x 2.6 cm
Allgemein
Gerätetyp
Medienkonverter
Formfaktor
Extern
Netzwerk
Anschlusstechnik
Kabelgebunden
Verdrahtungstyp
10Base-T, 1000Base-SX, 100Base-TX, 1000Base-T
Data Link Protocol
10Mb LAN, 100Mb LAN, 1GbE
Datenübertragungsrate
1 Gbps
Optische Wellenlänge
850 nm
Maximaler Übertragungsbereich
550 m
Statusanzeiger
Stromversorgung, Link/Aktivität
Leistungsmerkmale
Auto-Negotiation, Auto-Uplink (Auto MDI/MDI-X), Halbduplex-Modus, Vollduplex-Modus
Produktzertifizierungen
IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.3ab, IEEE 802.3ah
Erweiterung/Konnektivität
Schnittstellen
1 x Ethernet 1000Base-SX - SC multi-mode x 2
1 x Ethernet 10Base-T/100Base-TX/1000Base-T - RJ-45
1 x Ethernet 10Base-T/100Base-TX/1000Base-T - RJ-45
Verschiedenes
Kennzeichnung
FCC Klasse A zertifiziert
Stromversorgung
Leistungsaufnahme im Betrieb
5.6 Watt
Abmessungen und Gewicht
Breite
9.7 cm
Tiefe
6.9 cm
Höhe
2.6 cm
Umgebungsbedingungen
Min Betriebstemperatur
0 °C
Max. Betriebstemperatur
50 °C
Zulässige Luftfeuchtigkeit im Betrieb
5 - 90%
