Waren-Nr.: 2898895

Grundfos unilift ap 35b 50.06.1v 1x230v 10m sch

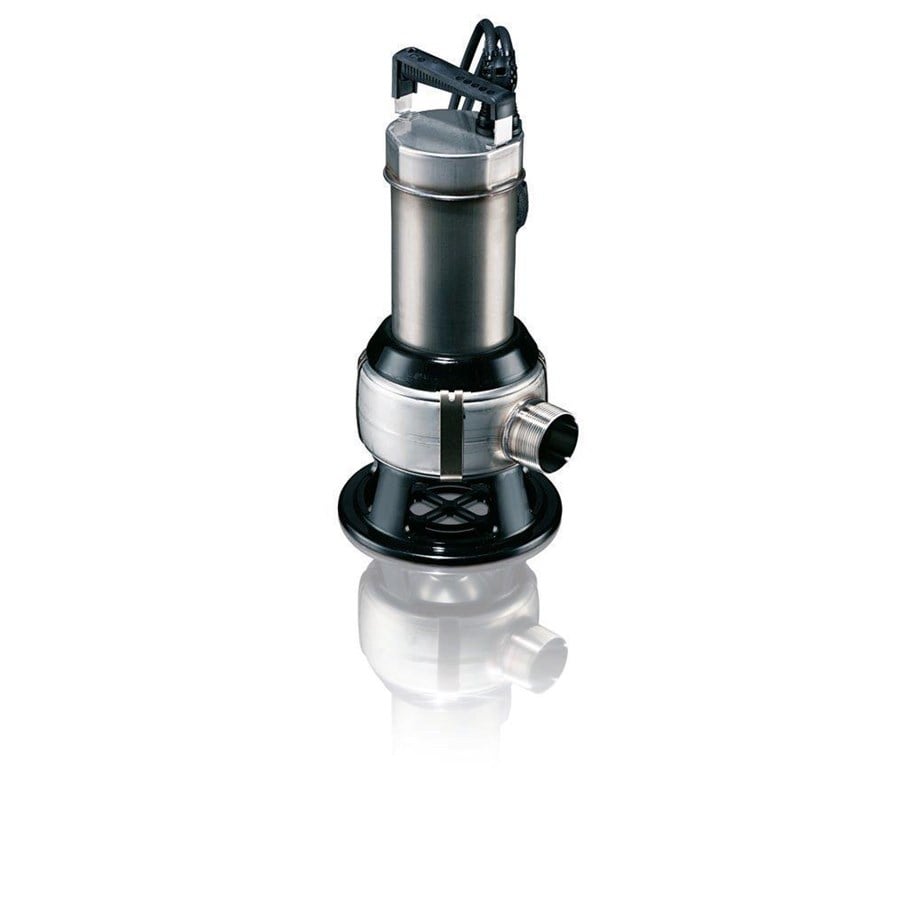

Unilift AP35B.50.06.1.VSubmersible effluent pumpVertical single-stage stainless steel submersiblepump with integrated submersible 1-phasemotor. The pump is fitted with ring stand and carryinghandle and is supplied with a 10 m mainscable. The impeller is a VORTEX impeller for35 mm free passage suitable for pumpingsurface water, groundwater, wastewater andsimilar.The pump has a double shaft seal and anintermediate oil chamber pre-filled with non-toxicspecial oil. The motor is insulation class F with thermaloverload protection and has long-life deep-groovegreased-for-life ball bearings.The pump has R 2' discharge port and isready for installation either free-standing oron an auto-coupling system.Liquid:Maximum liquid temperature:40 °CTechnical:Type of impeller:VORTEXMaximum particle size:35 mmMaterials:Pump housing:Stainless steelPump housing:DIN W.-Nr. 1.4301Pump housing:AISI 304Impeller:Stainless steelImpeller:DIN W.-Nr. 1.4301Impeller:AISI 304Installation:Pump outlet:R 2'Maximum installation depth:7 mElectrical data:Type of motor:PSCPower input - P1:1 kWRated voltage:1 x 230 VRated current:4.6 ACos phi - power factor:0,98Rated speed:2810 rpmCapacitor size - run:16 F/400 VEnclosure class (IEC 34-5):IP68Insulation class (IEC 85):FLength of cable:10 mType of cable plug:SCHUKOOthers:Net weight:9.82 kg

Lesen Sie mehr
786,14 € 660,62 € exkl. MwSt.
Günstigste Versandoption 4,99 €
Verfügbar - 2-4 Werktage Lieferzeit

Grundfos drainage pump AP 35B 50.06.1V 1X230V 10M Product description: Unilift AP35B.50.06.1.V wastewater pump Vertical single-stage submersible pump in stainless steel with integrated 1-phase submersible motor. The pump has a base plate and carrying handle and comes with a 10 m power cable. The impeller is a FREE-FLOW impeller with free passage of up to 35 mm and suitable for pumping surface water, groundwater, wastewater, and similar liquids.The pump has double shaft seals and an intermediate chamber filled from the factory with non-toxic special oil.The motor is in insulation class F with thermal overload protection and maintenance-free, lifetime-lubricated ball bearings.Designed for stand-alone installation or installation using an auto-coupling system.Liquid:Max medium temperature:40 °CTechnical data:Impeller type:FREE-FLOWMax particle size:35 mmMaterials:Pump housing:Stainless steelPump housing:DIN W.-Nr. 1.4301Pump housing:AISI 304Impeller material :Stainless steelImpeller material :DIN W.-Nr .43011Løber:AISI304Installation:Pump outlet :R2'Maximum installation depth :7 mElectrical data:Moto rtype:PSCPower consumption - P1 :l kWNominal voltage:l x230 VNominal current4 .6 ACos phi - power factor0 ,98Rated speed2810 rpmCapacitor size - in operation16 F/400 VEnclosure class (IEC34-5):68Insulation class (IEC85):FKabellængde:lOmType kabelstik:SCHUKOOtherNet weight9 .82 kg

Hersteller
Waren-Nr.
2898895
Modell
96004563
EAN
5700391488603
