Waren-Nr.: 3349246

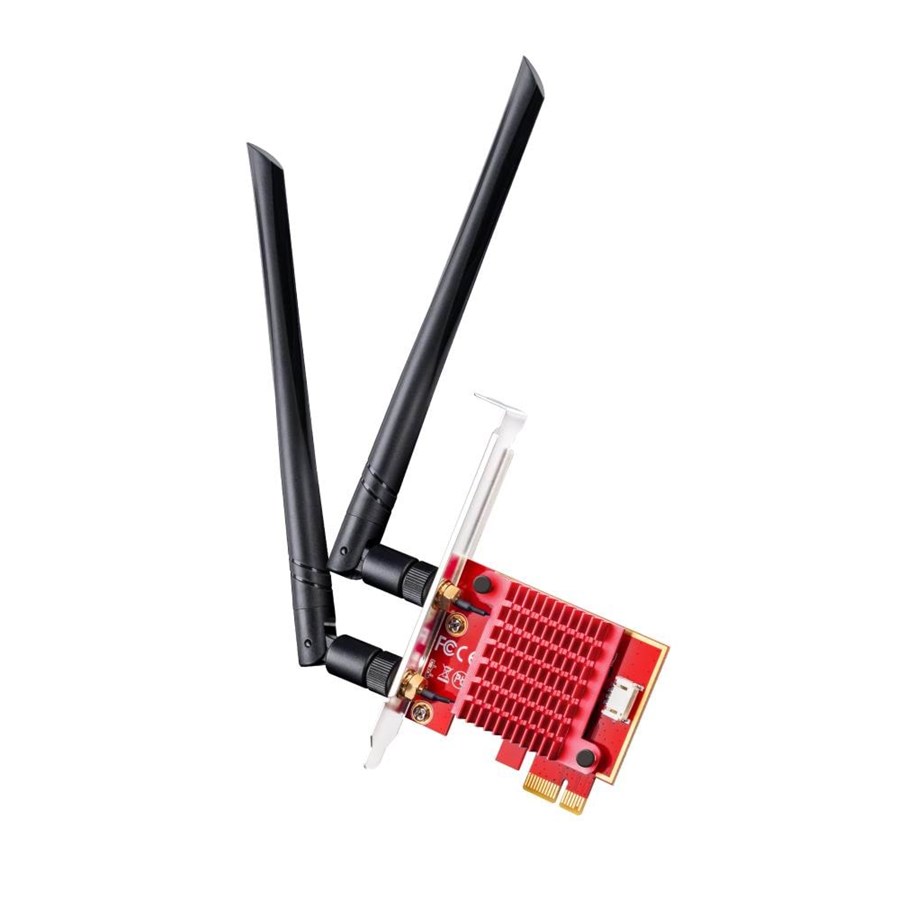

Cudy AX5400 Wi-Fi 6E Bluetooth 5.3 PCI-E Adapter

A Wi-Fi 6E and Bluetooth PCI-E adapter built on an AX210 Intel module with a heatsink. Install it to equip your Windows 10/11 PC with advanced wireless connectivity.

  • Tri-Band Wi-Fi 6E
  • 2.4 Gbps + 2.4 Gbps + 574 Mbps WiFi
  • Bluetooth 5.3
  • Intel AX210 Module
  • Works on Windows 10/11 64-Bit
  • Detachable Antennas on Magnetic Base
Auf Lager
30,89 € 25,96 € exkl. MwSt.
Günstigste Versandoption 2,99 €
4 Stk. Auf Lager - 1-3 Werktage Lieferzeit

The Cudy WE3000S network adapter is designed to enhance wireless connectivity with its features. Equipped with two external detachable antennas providing a gain level of 5 dBi, this adapter ensures stable and robust signal reception. The device supports multiple Wi-Fi bands, including 2.4 GHz, 5 GHz, and 6 GHz, achieving a data transfer rate of up to 2.4 Gbps. It incorporates MU-MIMO and 2T2R MIMO technology for efficient data transmission to multiple devices simultaneously. The plug-in card form factor and compatibility with PCI Express x1 and USB 2.0 interfaces make it a versatile option for various setups.The Cudy WE3000S is built for reliable performance with a wide operating temperature range from 0°C to 70°C and humidity levels up to 90%. Security is a priority, featuring multiple encryption algorithms including WPA, WPA2, and WPA3. Additionally, it utilizes Bluetooth 5.3 technology for seamless connections. Designed with a built-in heatsink and a magnetic antenna base, this network adapter performs well while maintaining a low profile for aesthetic integration into your system.

Hersteller
Waren-Nr.
3349246
Modell
WE3000S
EAN
6971690791322
Zum Hersteller:
Produktbeschreibung
Cudy WE3000S - Netzwerkadapter - PCI Express x1
Gerätetyp
Netzwerkadapter
Formfaktor
Plug-in-Karte - Low-Profile
Schnittstellentyp (Bustyp)
PCI Express x1
Abmessungen (Breite x Tiefe x Höhe)
2 cm x 7 cm x 4.5 cm
Gewicht
116 g
Data Link Protocol
Bluetooth 5.3, Wi-Fi 6E, Wi-Fi 5
Datenübertragungsrate
2.4 Gbps
Leistung
Maximale Datenrate (2,4 GHz): 574 Mbps
Maximale Datenrate (5 GHz): 2,4 Gbit/s
Maximale Datenrate (6 GHz): 2,4 Gbit/s
Frequenzband
2.4 GHz, 5 GHz, 6 GHz
Prozessor
Intel AX210
Produktzertifizierungen
IEEE 802.11ax, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Systemanforderungen
Microsoft Windows 11, Windows 10 (64-bit)

Allgemein

Gerätetyp
Netzwerkadapter
Formfaktor
Plug-in-Karte - Low-Profile
Schnittstellentyp (Bustyp)
PCI Express x1

Netzwerk

Anschlusstechnik
Kabellos
Data Link Protocol
Bluetooth 5.3, IEEE 802.11ax (Wi-Fi 6E), IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
WLAN-Rating
AX5400
Spread-Spectrum-Methode
OFDMA
Datenübertragungsrate
2.4 Gbps
Leistung
Maximale Datenrate (2,4 GHz): 574 Mbps
Maximale Datenrate (5 GHz): 2,4 Gbit/s
Maximale Datenrate (6 GHz): 2,4 Gbit/s
Frequenzband
2.4 GHz, 5 GHz, 6 GHz
Leistungsmerkmale
Eingebauter Kühlkörper, Antenne mit Magnetfuß, Tri-Band, 2T2R MIMO-Technologie, 2x2 MIMO 2.4GHz, 2x2 MIMO 5GHz, MU-MIMO-Technologie
Produktzertifizierungen
IEEE 802.11ax, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n

Antenne

Antenne
Extern abnehmbar
Antennenzahl
2
Gain Level
5 dBi

Prozessor / Arbeitsspeicher

Prozessor
Intel AX210

Verschiedenes

Enthaltene Kabel
1 x Bluetooth Anschlusskabel
Verschlüsselungsalgorithmus
WPA, WPA2, WPA3

Software / Systemanforderungen

Erforderliches Betriebssystem
Microsoft Windows 11, Windows 10 (64-bit)

Maße und Gewicht

Breite
2 cm
Tiefe
7 cm
Höhe
4.5 cm
Gewicht
116 g

Abmessungen & Gewicht (Transport)

Transportbreite
4 cm
Transporttiefe
23.2 cm
Transporthöhe
13.6 cm
Transportgewicht
261 g

Umgebungsbedingungen

Min Betriebstemperatur
0 °C
Max. Betriebstemperatur
70 °C
Zulässige Luftfeuchtigkeit im Betrieb
10 - 90 % (nicht-kondensierend)

Die genannten Informationen und Spezifikationen können vom Hersteller jederzeit und ohne vorherige Ankündigung geändert werden. Die Herstellerabbildungen dienen ausschließlich der Veranschaulichung. Irrtümer und Schreibfehler bleiben vorbehalten. Deutsche Bedienungsanleitungen sind in einigen Fällen ausschließlich digital verfügbar und nicht Bestandteil des Lieferumfangs. Teile des Textes wurden möglicherweise automatisiert erstellt oder maschinell übersetzt und können daher in Einzelfällen missverständlich sein.
