Waren-Nr.: 3425597

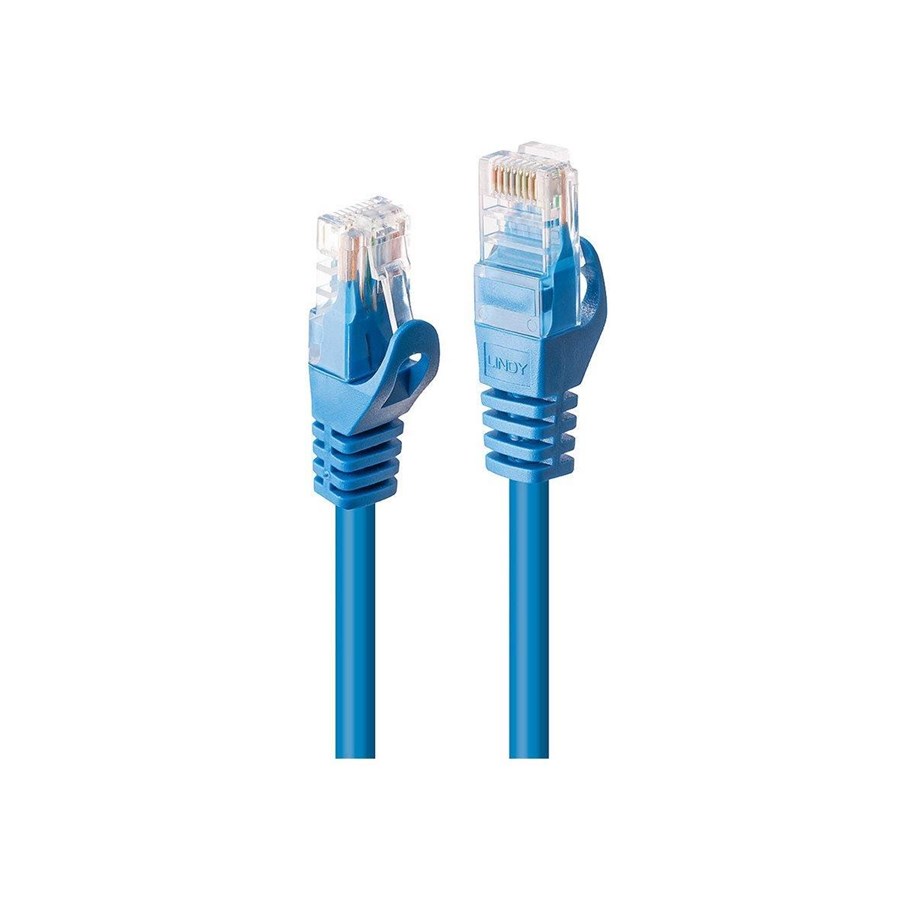

Lindy Basic patch cable - 1 m - blue - Blau - 1m
Patch-Kabel, RJ-45 (M) zu RJ-45 (M), 1 m, UTP, CAT 6, geformt, ohne Haken, Blau
7,16 €
6,02 € exkl. MwSt.
Günstigste Versandoption 4,99 €
Verfügbar - 3-5 Werktage Lieferzeit
Cat.6 U/UTP CCA network cable with support for bandwidth up to 250MHz and features a snagless design with gold plated contacts for ethernet standards up to 1GBase-T.Cat.6 cable for operating frequencies up to 250MHz. The unshielded version (U/UTP) can be used for Gigabit Ethernet thanks to the special design of the electrophysical parameters (NExT, FExT, etc.) despite the lack of shielding. These cables are manufactured and tested according to the ISO/IEC 11801 specification. The cables are packaged individually in a polybag.The gold-plated contacts ensure reliable, corrosion-free connections over extensive periods of time. A robust snagless strain relief design prevents damage to the connector latch during installation and removal.The high frequencies used in network technology cause a high current load in the outer layers of the conductors due to the "skin effect", while the conductor cores are only subjected to very low electrical loads. This allows the use of copper clad aluminium (CCA) conductor material, making this cable more cost-effective than pure copper cables.Available lengths: 0.3m, 0.5m, 1m, 2m, 3m, 5m, 7.5m, 10m.Available colours: Grey, Blue, Red, Black, White.
Hersteller
Waren-Nr.
3425597
Modell
48172
EAN
4002888481724
Zum Hersteller:
Kabellänge
1 m
Kabelstandard
Cat6
Kabelschirmung
U/UTP (UTP)
Anschluss 1
RJ-45
Anschluss 2
RJ-45
Produktfarbe
Blau
Steckverbinder 1 Geschlecht
Männlich
Steckverbinder 2 Geschlecht
Männlich
Beschichtung Steckerkontakte
Gold
Mantelmaterial
Polyvinylchlorid (PVC)
Leitermaterial
Kupferverkleidetes Aluminium (CCA)
Verkabelungstechnologie
10/100/1000Base-T(X)
AWG Kabelgröße
26
Frequenz
250 MHz
Biegeradius (min.)
6,9 cm
Plug & Play
Ja
Betriebstemperatur
-10 - 60 °C
Temperaturbereich bei Lagerung
-20 - 75 °C
Zertifizierung
RoHS, REACH, California Proposition 65
Außendurchmesser
5,8 mm
Stecker 1 Abmessungen (BxTxH)
11,6 x 22,8 x 8,3 mm
Stecker 2 Abmessungen (BxTxH)
11,6 x 22,8 x 8,3 mm
Menge pro Packung
1 Stück(e)
Verpackungsart
Polybag
Warentarifnummer (HS)
84733080
Merkmale
Kabellänge
1 m
Kabelstandard
Cat6
Kabelschirmung
U/UTP (UTP)
Anschluss 1
RJ-45
Anschluss 2
RJ-45
Produktfarbe
Blau
Steckverbinder 1 Geschlecht
Männlich
Steckverbinder 2 Geschlecht
Männlich
Beschichtung Steckerkontakte
Gold
Mantelmaterial
Polyvinylchlorid (PVC)
Leitermaterial
Kupferverkleidetes Aluminium (CCA)
Verkabelungstechnologie
10/100/1000Base-T(X)
AWG Kabelgröße
26
Frequenz
250 MHz
Biegeradius (min.)
6,9 cm
Plug & Play
Ja
Betriebsbedingungen
Betriebstemperatur
-10 - 60 °C
Temperaturbereich bei Lagerung
-20 - 75 °C
Zertifikate
Zertifizierung
RoHS, REACH, California Proposition 65
Gewicht und Abmessungen
Außendurchmesser
5,8 mm
Stecker 1 Abmessungen (BxTxH)
11,6 x 22,8 x 8,3 mm
Stecker 2 Abmessungen (BxTxH)
11,6 x 22,8 x 8,3 mm
Lieferumfang
Menge pro Packung
1 Stück(e)
Verpackungsdaten
Verpackungsart
Polybag
Logistikdaten
Warentarifnummer (HS)
84733080
