Waren-Nr.: 3252578

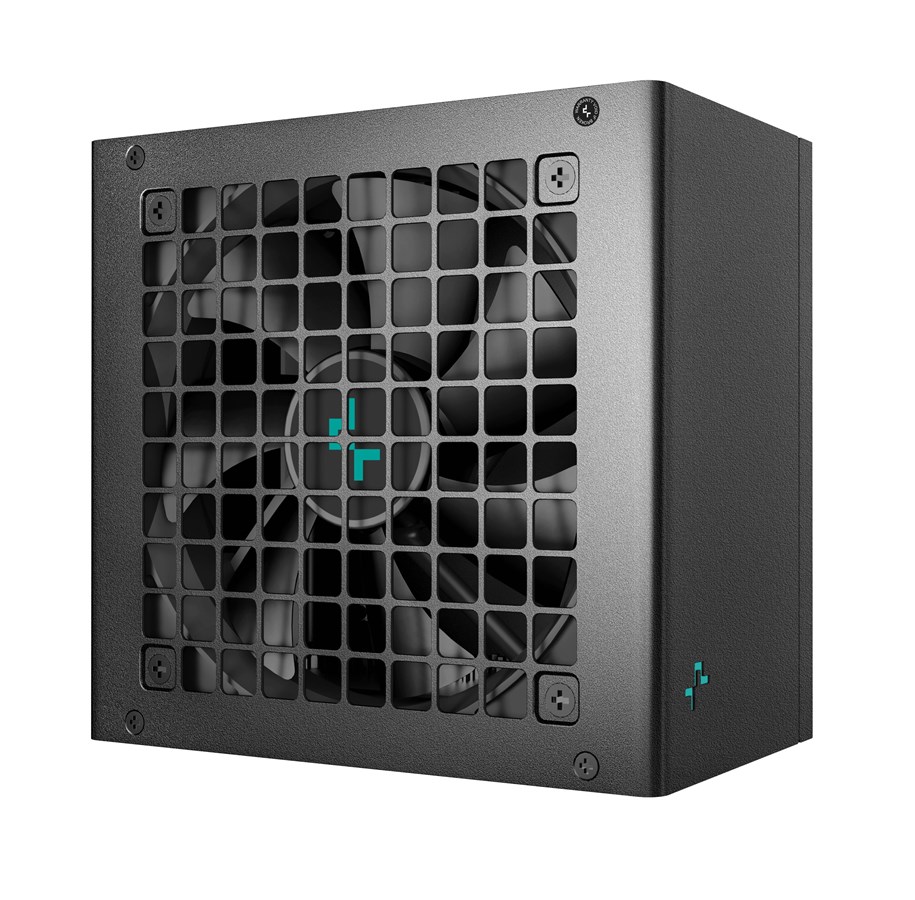

DeepCool PN650-M Netzteile - 650 Watt - 120 mm - ATX 3.0 - 80 Plus Gold zertifiziert

Netzteile ( intern ), ATX standard: ATX12V 3.1, 80 plus Gold, 120mm kühler fluid dynamic lager, aktive PFC, Kabel: 3 x 8 (6+2) pins zu Grafikkarte / 1 x 12V-2x6 450 Watt pins zu Grafikkarte (PCI Express 5.1 ready) / 8 x 5 pins SATA / 2 x 4 pins Molex / 1 x 24 (20+4) pins ATX / 2 x 4+4 pins CPU, voll modular und dünn/gesleevt Kabel, Kabel, farbe: schwarz, 650 watt

101,14 € 84,99 € exkl. MwSt.
Günstigste Versandoption 4,99 €
Verfügbar - 5-7 Werktage Lieferzeit

The Deepcool PN650M power supply is engineered to meet the needs of demanding PC builds, offering 650 W of efficient power delivery. With an 80 PLUS Gold certification, it achieves up to 90% efficiency at typical loads, ensuring less heat generation and lower operating costs. The inclusion of a 120 mm fluid dynamic bearing cooling fan further enhances its performance by maintaining optimal operating temperatures, which is crucial for long-term reliability and stability.Designed with versatility in mind, the PN650M features fully modular cable management, allowing users to connect only the cables they need for a clean and organized build. This not only improves airflow within the case but also simplifies the installation process. Moreover, the power supply is equipped with a comprehensive suite of protection mechanisms, including overcurrent, overheat, overpower, overvoltage, short-circuit, surge & inrush, and undervoltage protection, offering peace of mind and safeguarding against potential damage.Whether for a new build or an upgrade, the Deepcool PN650M is a reliable choice that combines performance, efficiency, and safety, making it an excellent investment for any PC enthusiast.

Stromkabel (Intern)

Hersteller
Waren-Nr.
3252578
Modell
R-PN650M-FC0B-EU
EAN
6933412719236
Zum Hersteller:
Gesamtleistung
650 W
AC Eingangsspannung
100 - 240 V
AC Eingangsfrequenz
50/60 Hz
Eingangsstrom
10 - 5 A
Leistungsfaktorkorrekturfilter (PFC)
Aktiv
Kombinierter Strom (+3.3V)
100 W
Kombinierter Strom (+12V)
648 W
Kombinierter Strom (+5V)
100 W
Kombinierter Strom (-12V)
3,6 W
Kombinierter Strom (+5Vsb)
15 W
Max. Ausgangsstrom (+3.3V)
20 A
Max. Ausgangsstrom (+12V)
54 A
Max Ausgangsstrom (+5V)
20 A
Max. Ausgangsstrom (-12V)
0,3 A
Max. Ausgangsstrom (+5Vsb)
3 A
Haltezeit
16 ms
Effizienz
90%
Energieschutzeigenschaften
No load operation, Überlastung, Überspannung, Überhitzung, Kurzschluß, Surge & inrush protection (SIP), Überspannungsschutz, Unterspannung
Motherboard Anschlussstecker
20+4 pin ATX
Anzahl Molex Anschlüsse 4pin
2
Stromkabellänge Motherboard
55 cm
Anzahl SATA Stromstecker
8
SATA-Netzkabellänge
550,750,450,650 mm
Periphere (Molex) Netzkabellänge
450 mm
Anzahl PCI Express Stromstecker 6+2pin
3
PCI Express-Stromanschlüsse (16-polig)
1
CPU Stecker (4+4 pin)
Ja
CPU-Leistung Kabellänge
70 cm
ATX Stromstecker (20+4 pol.)
Ja
Kabeltyp
Vollständig modular
Zweck
PC
Stromversorgungseinheit (PSU) Formfaktor
ATX
80 Plus Zertifizierung
80 PLUS Gold
ATX-Version
3.1
Lagertyp
FDB
Mittlere Betriebsdauer zwischen Ausfällen (MTBF)
100000 h
Produktfarbe
Schwarz
Kühlung
Aktiv
Lüfterdurchmesser
12 cm
Anzahl Lüfter
1 Lüfter
Lüfterplatzierung
Oben
Ein-/Ausschalter
Ja
Betriebstemperatur
0 - 40 °C
Mitgelieferte Kabel
AC
Kabelbinder enthalten
Ja
Konformitätsbescheinigungen
CCC, CE, EAC, Eidgenössische Kommunikationskommission (FCC), RCM, RoHS, WEEE
Breite
150 mm
Tiefe
140 mm
Höhe
86 mm
Verpackungsart
Box
Nachhaltigkeitszertifikate
Triman
Garantiezeit
10 Jahr(e)

Energie

Gesamtleistung
650 W
AC Eingangsspannung
100 - 240 V
AC Eingangsfrequenz
50/60 Hz
Eingangsstrom
10 - 5 A
Leistungsfaktorkorrekturfilter (PFC)
Aktiv
Kombinierter Strom (+3.3V)
100 W
Kombinierter Strom (+12V)
648 W
Kombinierter Strom (+5V)
100 W
Kombinierter Strom (-12V)
3,6 W
Kombinierter Strom (+5Vsb)
15 W
Max. Ausgangsstrom (+3.3V)
20 A
Max. Ausgangsstrom (+12V)
54 A
Max Ausgangsstrom (+5V)
20 A
Max. Ausgangsstrom (-12V)
0,3 A
Max. Ausgangsstrom (+5Vsb)
3 A
Haltezeit
16 ms
Effizienz
90%
Energieschutzeigenschaften
No load operation, Überlastung, Überspannung, Überhitzung, Kurzschluß, Surge & inrush protection (SIP), Überspannungsschutz, Unterspannung

Anschlüsse und Schnittstellen

Motherboard Anschlussstecker
20+4 pin ATX
Anzahl Molex Anschlüsse 4pin
2
Stromkabellänge Motherboard
55 cm
Anzahl SATA Stromstecker
8
SATA-Netzkabellänge
550,750,450,650 mm
Periphere (Molex) Netzkabellänge
450 mm
Anzahl PCI Express Stromstecker 6+2pin
3
PCI Express-Stromanschlüsse (16-polig)
1
CPU Stecker (4+4 pin)
Ja
CPU-Leistung Kabellänge
70 cm
ATX Stromstecker (20+4 pol.)
Ja
Kabeltyp
Vollständig modular

Leistungen

Zweck
PC
Stromversorgungseinheit (PSU) Formfaktor
ATX
80 Plus Zertifizierung
80 PLUS Gold
ATX-Version
3.1
Lagertyp
FDB
Mittlere Betriebsdauer zwischen Ausfällen (MTBF)
100000 h

Design

Produktfarbe
Schwarz
Kühlung
Aktiv
Lüfterdurchmesser
12 cm
Anzahl Lüfter
1 Lüfter
Lüfterplatzierung
Oben
Ein-/Ausschalter
Ja

Betriebsbedingungen

Betriebstemperatur
0 - 40 °C

Lieferumfang

Mitgelieferte Kabel
AC
Kabelbinder enthalten
Ja

Zertifikate

Konformitätsbescheinigungen
CCC, CE, EAC, Eidgenössische Kommunikationskommission (FCC), RCM, RoHS, WEEE

Gewicht und Abmessungen

Breite
150 mm
Tiefe
140 mm
Höhe
86 mm

Verpackungsdaten

Verpackungsart
Box

Technische Details

Nachhaltigkeitszertifikate
Triman

Logistikdaten

Garantiezeit
10 Jahr(e)
