Waren-Nr.: 3315326

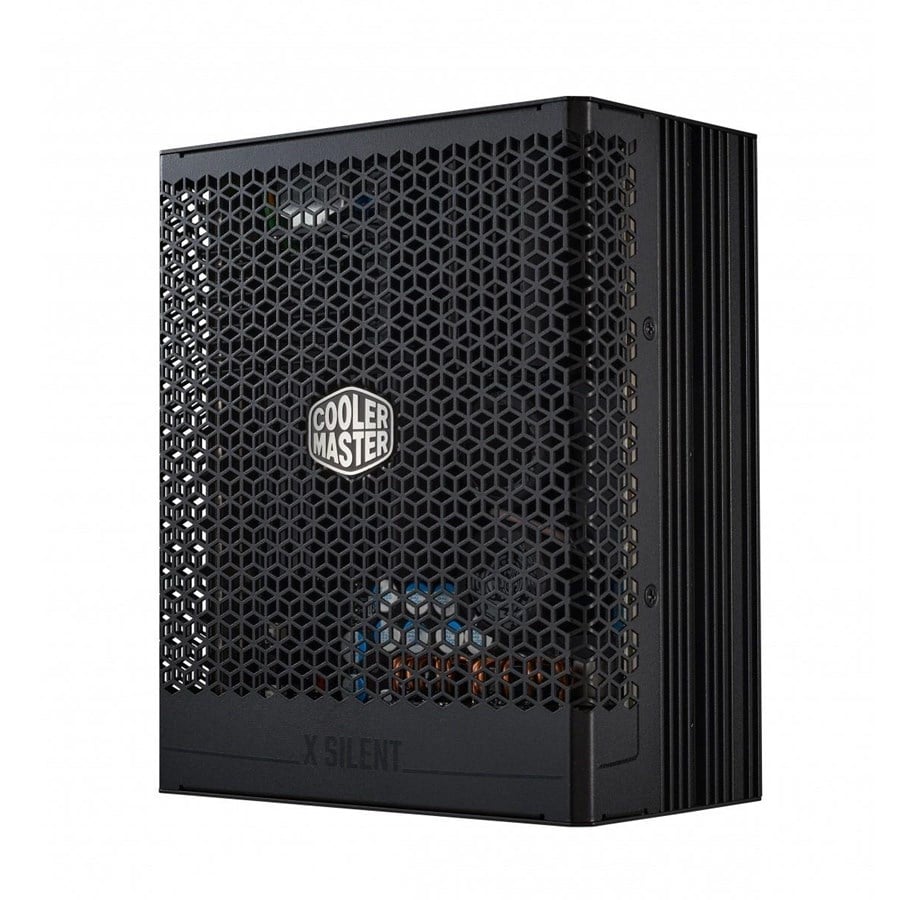

Cooler Master X Silent Edge Platinum 1100 Netzteile - 1100 Watt - ATX - 80 Plus Platinium

Netzteil (intern), ATX12V 3.1/ EPS12V, 80 PLUS Platinum, Wechselstrom 200-240 V, 1100 Watt, aktive PFC, Europa

348,59 € 292,93 € exkl. MwSt.
Günstigste Versandoption 4,99 €
Bestellware - 8-10 Tage Lieferzeit

The Cooler Master X Silent Edge Platinum 1100 stands out as a power supply design, offering efficiency, reliability, and silent operation. With an 80 PLUS Platinum certification, it achieves up to 94% efficiency, minimizing energy waste and reducing operating costs. Its fully modular design not only facilitates a clean and organized build but also enhances airflow, contributing to the overall cooling performance of your system.Incorporating advanced cooling technologies, including a fanless design and heatpipe cooling, it operates in silence while effectively dissipating heat, ensuring stability and longevity with an MTBF of 100,000 hours. The power supply is equipped with a comprehensive suite of protection features, including overcurrent, overheat, overpower, overvoltage, short-circuit, surge & inrush, and undervoltage protection, offering peace of mind and reliability.Designed for versatility, it supports a wide range of voltages and is compliant with ATX12V 3.1/ EPS12V specifications, making it suitable for both PC and server applications. Whether you're building a high-performance workstation or a gaming rig, the Cooler Master X Silent Edge Platinum 1100 provides the efficiency, reliability, and quality you need to power your system.

Stromkabel (Intern)

Hersteller
Waren-Nr.
3315326
Modell
MPS-B001-AZBP-BEU
EAN
4719512143117
Zum Hersteller:
Gesamtleistung
1100 W
AC Eingangsspannung
200 - 240 V
AC Eingangsfrequenz
50/60 Hz
Eingangsstrom
6.1 A
Leistungsfaktorkorrekturfilter (PFC)
Aktiv
Kombinierter Strom (+3.3V)
120 W
Kombinierter Strom (+12V)
1099,2 W
Kombinierter Strom (+5V)
120 W
Kombinierter Strom (-12V)
3,6 W
Kombinierter Strom (+5Vsb)
15 W
Max. Ausgangsstrom (+3.3V)
20 A
Max. Ausgangsstrom (+12V)
91,6 A
Max Ausgangsstrom (+5V)
20 A
Max. Ausgangsstrom (-12V)
0,3 A
Max. Ausgangsstrom (+5Vsb)
3 A
Haltezeit
16 ms
Effizienz
94%
Power Good Signal Verzögerungsbereich
100 - 150 ms
Energieschutzeigenschaften
Überstrom, Überlastung, Überspannung, Überhitzung, Kurzschluß, Surge & inrush protection (SIP), Unterspannung
Motherboard Anschlussstecker
24-pin ATX
Anzahl Molex Anschlüsse 4pin
4
Stromkabellänge Motherboard
65 cm
Anzahl SATA Stromstecker
12
SATA-Netzkabellänge
500,650,800,950 mm
Periphere (Molex) Netzkabellänge
740,620,500,860 mm
EPS Stromstecker (8-pin)
Ja
EPS-Stromanschluss (4+4-polig)
Ja
Anzahl PCI Express Stromstecker 6+2pin
4
PCI Express-Stromanschlüsse (12+4 Pol)
1
PCI Express-Stromanschlüsse (12+4-polig) Kabellänge
650 mm
PCI Express Netzkabellänge
55 cm
Kabeltyp
Vollständig modular
Zweck
PC
Stromversorgungseinheit (PSU) Formfaktor
ATX
80 Plus Zertifizierung
80 PLUS Platinum
ATX-Version
3.1
Mittlere Betriebsdauer zwischen Ausfällen (MTBF)
100000 h
Produktfarbe
Schwarz
Anzahl Lüfter
0 Lüfter
Betriebstemperatur
0 - 40 °C
Konformitätsbescheinigungen
BSMI, CCC, CE, EAC, Eidgenössische Kommunikationskommission (FCC), KC, RCM, REACH, UKCA, cUL
Zertifizierung
ErP 2014 Lot 3
Breite
150 mm
Tiefe
180 mm
Höhe
86 mm
Gewicht
4,5 kg
Verpackungsbreite
382 mm
Verpackungstiefe
224 mm
Verpackungshöhe
126 mm
Paketgewicht
5,2 kg
Anzahl Kartons pro Palette
120 Stück(e)
Breite des Versandkartons
396 mm
Länge des Versandkartons
265 mm
Höhe des Versandkartons
250 mm
Anzahl Produkte pro Versandkarton
2 Stück(e)
EPS-Kabellänge
65 cm

Energie

Gesamtleistung
1100 W
AC Eingangsspannung
200 - 240 V
AC Eingangsfrequenz
50/60 Hz
Eingangsstrom
6.1 A
Leistungsfaktorkorrekturfilter (PFC)
Aktiv
Kombinierter Strom (+3.3V)
120 W
Kombinierter Strom (+12V)
1099,2 W
Kombinierter Strom (+5V)
120 W
Kombinierter Strom (-12V)
3,6 W
Kombinierter Strom (+5Vsb)
15 W
Max. Ausgangsstrom (+3.3V)
20 A
Max. Ausgangsstrom (+12V)
91,6 A
Max Ausgangsstrom (+5V)
20 A
Max. Ausgangsstrom (-12V)
0,3 A
Max. Ausgangsstrom (+5Vsb)
3 A
Haltezeit
16 ms
Effizienz
94%
Power Good Signal Verzögerungsbereich
100 - 150 ms
Energieschutzeigenschaften
Überstrom, Überlastung, Überspannung, Überhitzung, Kurzschluß, Surge & inrush protection (SIP), Unterspannung

Anschlüsse und Schnittstellen

Motherboard Anschlussstecker
24-pin ATX
Anzahl Molex Anschlüsse 4pin
4
Stromkabellänge Motherboard
65 cm
Anzahl SATA Stromstecker
12
SATA-Netzkabellänge
500,650,800,950 mm
Periphere (Molex) Netzkabellänge
740,620,500,860 mm
EPS Stromstecker (8-pin)
Ja
EPS-Stromanschluss (4+4-polig)
Ja
Anzahl PCI Express Stromstecker 6+2pin
4
PCI Express-Stromanschlüsse (12+4 Pol)
1
PCI Express-Stromanschlüsse (12+4-polig) Kabellänge
650 mm
PCI Express Netzkabellänge
55 cm
Kabeltyp
Vollständig modular

Leistungen

Zweck
PC
Stromversorgungseinheit (PSU) Formfaktor
ATX
80 Plus Zertifizierung
80 PLUS Platinum
ATX-Version
3.1
Mittlere Betriebsdauer zwischen Ausfällen (MTBF)
100000 h

Design

Produktfarbe
Schwarz
Anzahl Lüfter
0 Lüfter

Betriebsbedingungen

Betriebstemperatur
0 - 40 °C

Zertifikate

Konformitätsbescheinigungen
BSMI, CCC, CE, EAC, Eidgenössische Kommunikationskommission (FCC), KC, RCM, REACH, UKCA, cUL
Zertifizierung
ErP 2014 Lot 3

Gewicht und Abmessungen

Breite
150 mm
Tiefe
180 mm
Höhe
86 mm
Gewicht
4,5 kg

Verpackungsdaten

Verpackungsbreite
382 mm
Verpackungstiefe
224 mm
Verpackungshöhe
126 mm
Paketgewicht
5,2 kg

Logistikdaten

Anzahl Kartons pro Palette
120 Stück(e)
Breite des Versandkartons
396 mm
Länge des Versandkartons
265 mm
Höhe des Versandkartons
250 mm
Anzahl Produkte pro Versandkarton
2 Stück(e)

Sonstige Funktionen

EPS-Kabellänge
65 cm
