Waren-Nr.: 3209141

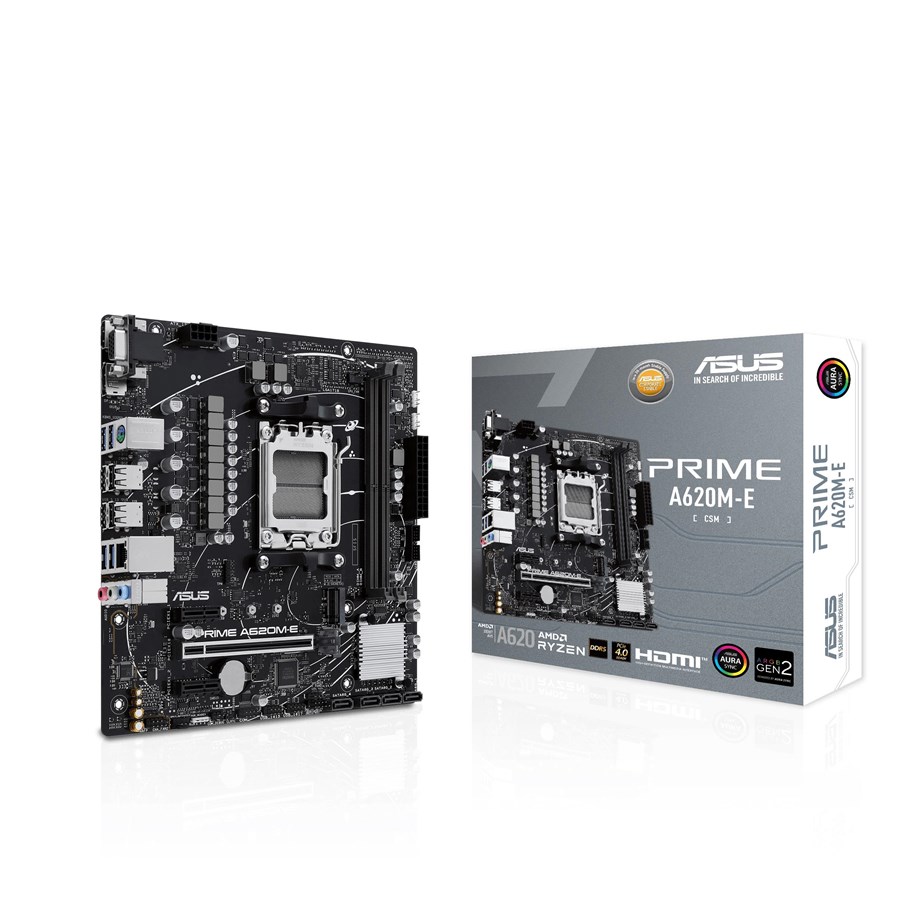

ASUS PRIME A620M-E-CSM Mainboard - AMD A620 - AMD AM5 socket - DDR5 RAM - Micro-ATX

Mainboard, größe: Micro-ATX, AMD AM5 socket, AMD A620 chipset, 1 x PCI-Express 4.0 x16, Dual DDR5-5600 2 x DIMM slots (AMD EXPO support), speicheranschlüsse: 4 x SATA-600 / 1 x M.2 NVMe PCI-Express 4.0 (M.2 size: 2242 / 2260 / 2280), USB 3.2 Gen 1 type A, monitorverbindung: 1 x Displayport 1.4 / 1 x HDMI 1.4, Realtek 1 Gigabit netzwerk (LAN), AMD Graphics unterstützt (CPU mit VGA erforderlich), Realtek HD Audio (8-Kanäle) soundkarte, ASUS AURA Sync software

Dieses Bundle enthält

Norton 360 Deluxe - 25GB 1 User 3 Devices 12 Months - ESD - Multilingual Elektronisk

Wert 44,99 € Gültig ab 07-10-2024 00:00 - solange der Vorrat reicht
Günstigste Versandoption 4,99 €
Verfügbar - 4-6 Werktage Lieferzeit

The ASUS Prime A620M-E-CSM motherboard is designed to cater to the needs of today's users, offering a blend of performance, connectivity, and durability. With support for DDR5 SDRAM at speeds up to 7200 MHz (O.C.), it sets the foundation for responsive multitasking and high-speed data processing. The motherboard is equipped with a variety of storage options, including M.2 sockets and Serial ATA-600 (RAID), allowing users to maximize their system's storage potential for fast data access and reliability.Connectivity is a cornerstone of the Prime A620M-E-CSM, featuring HDMI, DisplayPort, VGA, and USB 3.2 Gen 1 ports to connect a wide array of peripherals and displays. This ensures that users can build a versatile and comprehensive system setup. The inclusion of high definition audio with an 8-channel sound card further enhances the multimedia experience, delivering clear sound quality for gaming, movies, and music.Durability is not overlooked, with ASUS 5X Protection III and ASUS SafeSlot Core+ providing a solid foundation that ensures long-term system reliability and stability. This motherboard is an ideal choice for users looking to build a robust, high-performance PC setup that can handle a variety of tasks, from gaming to intensive computing applications.

Hersteller
Waren-Nr.
3209141
Modell
90MB1F50-M0EAYC
EAN
4711387236772
Kontaktieren Sie den Hersteller
Produktbeschreibung
ASUS Prime A620M-E-CSM - Motherboard - micro ATX - Socket AM5 - AMD A620
Produkttyp
Motherboard - micro ATX
Chipsatz
AMD A620
Prozessorsockel
1 x Socket AM5
Kompatible Prozessoren
Ryzen (unterstützt Ryzen 7000 Serie, maximale TDP 120 Watt)
Max. RAM-Größe
96 GB
Unterstütztes RAM
2 DIMM-Steckplätze - DDR5, non-ECC, on-die ECC, ungepuffert
Massenspeicher-Schnittstellen
4 x SATA-600 (RAID), 1 x M.2
USB-/FireWire-Anschlüsse
4 x USB 3.2 Gen 1 + 4 x USB 2.0 + (1 x USB 3.2 Gen 1 + 2 x USB 2.0 über eine interne Stiftleiste)
Audio
HD Audio (8-Kanal)
LAN
Gigabit Ethernet

Allgemein

Produkttyp
Motherboard - micro ATX
Chipsatz
AMD A620
Prozessorsockel
Socket AM5
Max. Anz. Prozessoren
1
Kompatible Prozessoren
Ryzen (unterstützt Ryzen 7000 Serie, maximale TDP 120 Watt)

Unterstützter RAM

Max. Größe
96 GB
Technologie
DDR5
Bustakt
4800 MHz, 5000 MHz, 5200 MHz, 5400 MHz (O.C.), 5600 MHz (O.C.), 5800 MHz (O.C.), 6000 MHz (O.C.), 6200 MHz (O.C.), 6400 MHz (O.C.), 6600 MHz (O.C.), 6800 MHz (O.C.), 7000 MHz (O.C.), 7200 MHz (O.C.)
Unterstützte RAM-Integritätsprüfung
Non-ECC, on-die ECC
Registriert oder gepuffert
Ungepuffert
Besonderheiten
Zwei-Kanal-Speicherarchitektur, AMD EXPO-Technologie

Audio

Typ
HD Audio (8-Kanal)
Kompatibilität
High-Definition-Audio

LAN

Netzwerkschnittstellen
Gigabit Ethernet

Erweiterung/Konnektivität

Erweiterungssteckplätze
1 x CPU
2 x DIMM 288-polig
1 x PCIe 4.0 x16
2 x PCIe 3.0 x1
1 x M.2 socket (2242/2260/2280 M.2 Key M Steckplatz)
Speicherschnittstellen
SATA-600 -anschlussstellen: 4 x 7-Pin Serial ATA - RAID 0 / RAID 1 / RAID 10
PCIe 4.0 -anschlussstellen: 1 x M.2 - RAID 0 / RAID 1 / RAID 10
RAID-Merkmale
AMD RAID Xpert2 Technologie
Schnittstellen
1 x HDMI
1 x DisplayPort
1 x VGA
4 x USB 3.2 Gen 1
4 x USB 2.0
1 x LAN (Gigabit Ethernet)
1 x PS/2-Tastatur/-maus
1 x Mikrofon - Mini-Klinkenstecker
1 x Audio Line-In - Mini-Klinkenstecker
1 x Audio Line-Out - Mini-Klinkenstecker
Interne Schnittstellen
2 x USB 3.2 Gen 1 - Stiftleiste
4 x USB 2.0 - Stiftleiste
1 x Audio - Stiftleiste
1 x SPI - Stiftleiste
1 x Seriell - Stiftleiste
1 x SPDIF - Stiftleiste
1 x SPI - Stiftleiste
Stromanschlüsse
Hauptstromanschluss, 24-polig, ATX12V-Stecker, 8-polig

Besonderheiten

BIOS-Typ
AMI
BIOS-Funktionen
UEFI BIOS, ASUS EZ Flash 3, ASUS UEFI BIOS EZ-Modus
Sleep / Wake up
Wake On PME, Wake-On-LAN (WOL)
Hardwarefeatures
ASUS Aura Sync, Preboot eXecution Environment (PXE), Q-DIMM, Q-LED Core, Q-Slot, ASUS Stainless Steel Back I/O, ASUS DIGI+ VRM, ASUS 5X Protection III, LANGuard, ASUS SafeSlot Core+, Überspannungsschutz, ASUS Q-Design, AURA RGB Lighting Control

Verschiedenes

Zubehör im Lieferumfang
I/O-Abschirmung, M.2 Schraubenpaket, ACC Express Activation Key Card
Enthaltene Kabel
2 x Serial ATA-Kabel
Software inbegriffen
Armoury Crate, ASUS AURA Creator, ASUS Fan Xpert 2+, ASUS AI Suite III, ASUS TurboV EVO Utility, PC Cleaner, ASUS CPU-Z, Norton 360 Deluxe (60-Tage-Testversion), WinRAR
Breite
22.6 cm
Tiefe
22.1 cm
