Waren-Nr.: 2952157

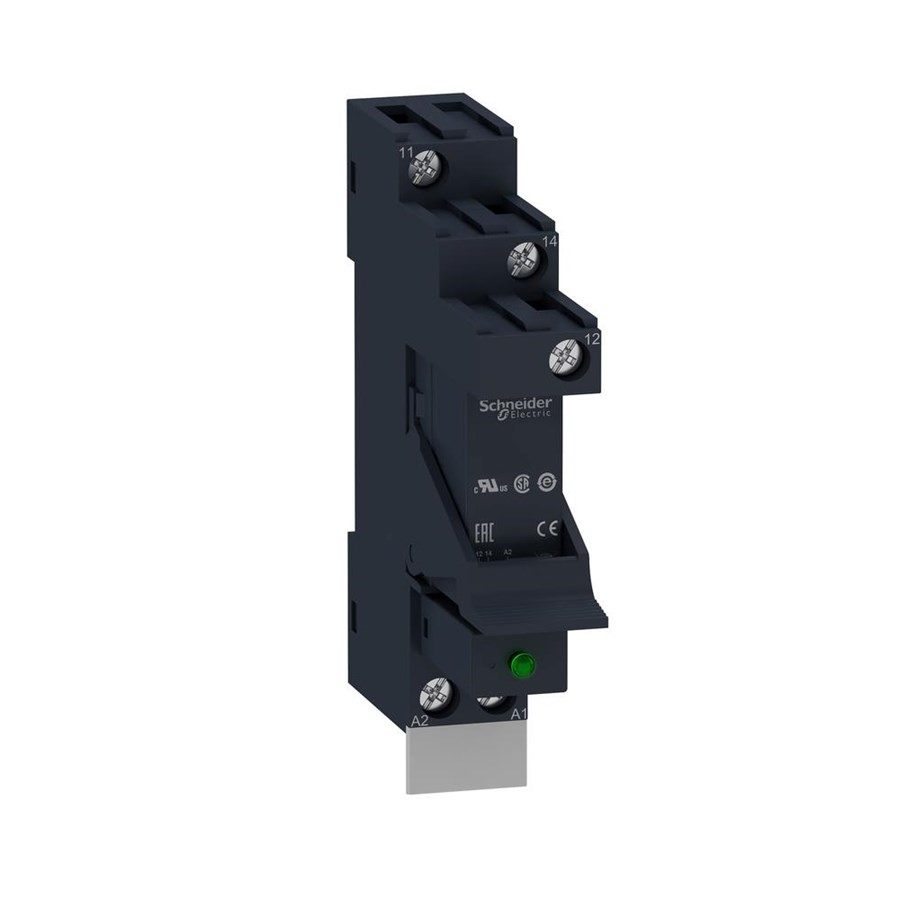

Schneider Electric Zelio rsb plug-in relay premounted in socket with diode and legend 1 c/o 12a contact and 24vdc supply

Zelio RSB are a series of compact plug-in relays with a width of only 16 mm.The relays are available with 1 C/O with either 12 and 16A or 2 C/O contacts with 8A maximum load.It is possible to insert a protection module (diode, varistor or RC-circuit) into the relay socket if needed.The sockets RSZE1S35M and RSZE1S48M has separate terminals for supply and load which simplify troubleshooting and mounting of the relays.RSB1A120BDPV is a complete plug-in relay mounted into a RSZE1S35M socket with a maintaining clamp, which secure that the relay stays in the socket even in an environment with vibrations.The socket has a blocking diode for protection against reversed polarity.The diode module has also a build-in LED for indication of supply to the relay.RSB1A120BDPV has a 1 C/O AgNI contact with a maximum load of 12A.The relay has a lifetime of 100.000 cycles (depending on load).Supply voltage to the RSB1A120BDPV is 24 VDC and average coil consumption is 0,45W.Minimum switching c

Lesen Sie mehr
15,78 € 13,26 € exkl. MwSt.
Günstigste Versandoption 4,99 €
Verfügbar - 2-4 Werktage Lieferzeit

Zelio RSB plug-in relay with diode and label, 1 C/O contact at 12A and 24VDC supply. Product description: Zelio RSB is a series of compact plug-in relays with a width of only 16 mm. The relays are available with either 1 C/O at 12 or 16A or two C/O contacts at 8A. There is the possibility of inserting a protection module (diode, varistor or RC-led) directly into the relay socket if required. The RSZE1S35M and RSZE1S48M sockets have separate terminals for supply and contact sets, making it easy to troubleshoot the relays. RSB1A120BDPV is a complete plug-in relay mounted in an RSZE1S35M relay socket with a retaining clip that ensures that the relay remains securely in place even under vibrating conditions. A blocking diode for rectifying DC voltage is mounted in the socket as well as an LED indicating when there is power to the relay.RSB1A120BDPV has one AgNI C/O contact with maximum load capacity of12 A.The life span of this Relay depends on load level and type but it can handle up to100,000 switching cycles.The power supply for RSB1A120BDPVis24 VDCand its own consumption onthe Relayis0.45W.Minimum switch-on current onthecontact setis100mA.It's possibleto connect up to8relayswiththeloopbarRGZS08whichisasaccessorytothesockets.RSBserieshasULandCSAgoodapprovalforuseintheUSAandCanada

Hersteller
Waren-Nr.
2952157
Modell
RSB1A120BDPV
EAN
3606489562687
