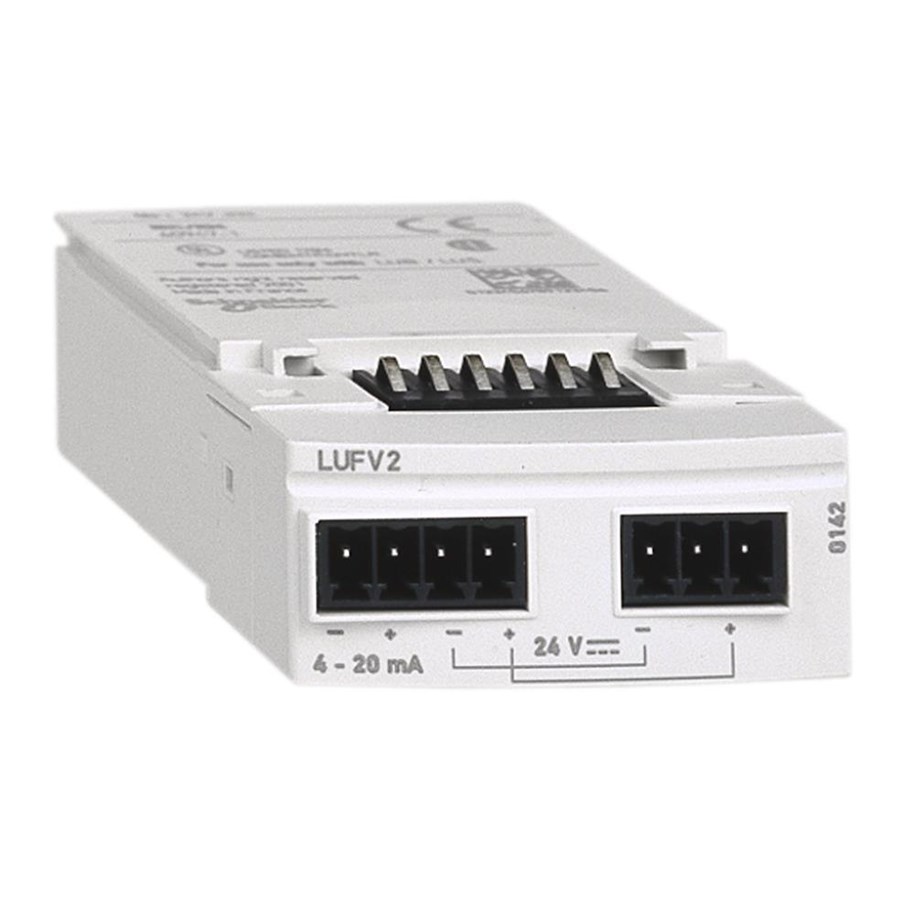

Schneider Electric Alarm module with screw cla

Motor Load Module 4-20MA Product Description: TeSys U - Motor starters up to 15 kW With a capacity of up to 32 A/15 kW, TeSys U consists of: •A 45 mm base module (1): with two nominal current ratings, reversing or non-reversing, breaker function and built-in interference suppression •One of three possible control units that can be clipped on: Standard-CU: overload and short-circuit protection/CU which can be expanded: + alarm and fault differentiation/multifunction-CU (2): real-time control of motor load, local or remote diagnostics and parameter setup •One of three possible automation modules that can be clipped on:(3): Modbus, CANopen, AS-Interface and Profibus DP, Ethernet, DeviceNet,Fipio , Interbus S via Advantys STB le-module or a simple parallel link•Two optional 45 mm power modules : current limiter(4)and changeover relay(5) Benefits A simple and compact motor starter We are introducing the first intelligent starter that can integrate motor control,-control,and switching functions into a single 45mm wide unit! It is compact,simple,and modular,and can be adapted to all applications.
