Waren-Nr.: 3021130

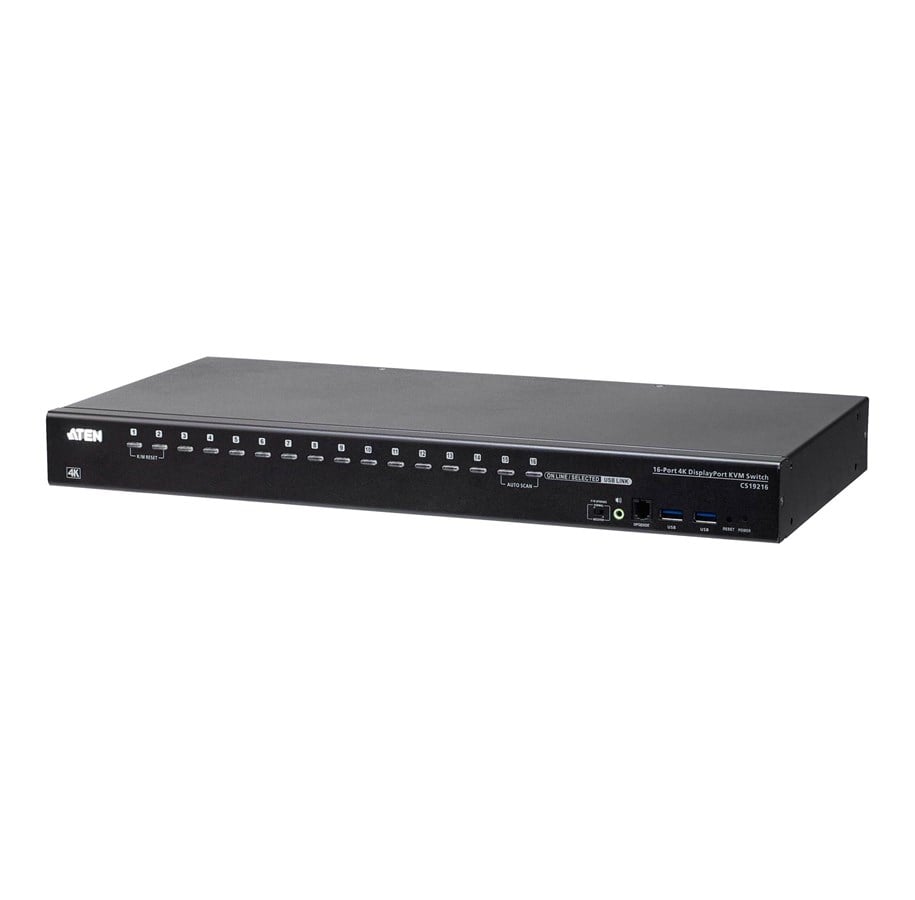

ATEN 16-Port USB True 4K DisplayPort KVM Switch wi

KVM-/Audio-/USB-Switch, 16 x KVM/Audio/USB, 1 lokaler Benutzer, Desktop, an Rack montierbar

1.773,02 € 1.489,93 € exkl. MwSt.
Günstigste Versandoption 4,99 €
Verfügbar - 3-5 Werktage Lieferzeit

The ATEN CS19216 16-port USB 3.0 4K DisplayPort KVM switch can effectively access and control up to 16 DisplayPort computers from a single USB keyboard, USB mouse, and monitor console. With its dual interface console, users can choose between DisplayPort/HDMI video output supporting high video quality up to 4K DCI (4096 x 2160 @ 60Hz), presenting crystal-clear visuals.To meet the needs of easy expansion and flexibility, the CS19216 can be cascaded to two levels to control up to 256 computers from a single console. Furthermore, the CS19216 supports multi-display function by stacking up to eight CS19216 units to compare and analyze information on 8 monitors at most, which substantially streamlines the working environment.With two patented ATEN technology - Video DynaSync and EDID Expert, the CS19216 can optimize display resolution, accelerate switching between ports and power up smoothly while eliminating boot-up display problems.Besides, the CS19216 comes with a built-in USB 3.1 Gen 1 hub delivering data transfer rates up to 5 Gbps, allowing users to speed up operations and share USB peripherals instantly. For user-friendly port selection methods, the C19216 offers pushbuttons, hotkeys, RS-232 commands, and OSD with UI, bringing effortless and intuitive operations.

Hersteller
Waren-Nr.
3021130
Modell
CS19216-AT-G
EAN
4719264649264
Zum Hersteller:
Produktbeschreibung
ATEN CS19216 - KVM-/Audio-/USB-Switch - 16 Anschlüsse - an Rack montierbar
Gerätetyp
KVM-/Audio-/USB-Switch - 16 Anschlüsse - kaskadierbar
Gehäusetyp
An Rack montierbar
Untertyp
DisplayPort
Ports
16 x KVM/Audio/USB
Anz. KVM-Benutzer
1 lokaler Benutzer
Leistungsmerkmale
Firmware aktualisierbar, Metallgehäuse, EDID Expert, Passwortschutz
Produktzertifizierungen
USB 3.1 Gen 1
Stromversorgung
DC 12 V
Abmessungen (Breite x Tiefe x Höhe)
43.24 cm x 21.43 cm x 4.4 cm
Gewicht
3.54 kg

Allgemein

Gerätetyp
KVM-/Audio-/USB-Switch - 16 Anschlüsse - kaskadierbar
Gehäusetyp
Desktop, an Rack montierbar
Untertyp
DisplayPort
Ports
16 x KVM/Audio/USB
Anz. lokale KVM-Benutzer
1 lokaler Benutzer
Tastatur-/Mausschnittstelle
USB
Max Auflösung
4096 x 2160 @ 60 Hz
Leistungsmerkmale
Firmware aktualisierbar, Metallgehäuse, EDID Expert, Passwortschutz, Übertragungsmodus, ATEN Video DynaSync, Auto Scan-Modus
Produktzertifizierungen
USB 3.1 Gen 1
Integrierte Peripheriegeräte
2-Port USB 3.1 Gen 1 Hub
Statusanzeiger
Stromversorgung, Auswahl, USB, Online

Erweiterung/Konnektivität

Schnittstellen
1 x Tastatur (USB) Type A Konsole
1 x Maus (USB) Type A Konsole
1 x DisplayPort Konsole
1 x HDMI Konsole
2 x Audio Mini-Klinkenstecker Konsole
16 x DisplayPort
16 x USB 3.1 Gen 1 Type B
16 x Audio Mini-Klinkenstecker
1 x Verwaltung RJ-11
2 x USB 3.1 Gen 1 Type A

Stromversorgung

Stromversorgungsgerät
Externer Netzadapter
Erforderliche Netzspannung
DC 12 V
Leistungsaufnahme im Betrieb
26.66 Watt

Verschiedenes

Enthaltene Kabel
2 x DisplayPort-Kabel
2 x SuperSpeed-USB-Kabel
2 x Audiokabel
1 x Kabel für Firmware-Upgrade
Rackmontagesatz
Mitgeliefert
Produktzertifizierungen
RoHS, DisplayPort 1.4, HDCP 2.2

Maße und Gewicht

Breite
43.24 cm
Tiefe
21.43 cm
Höhe
4.4 cm
Gewicht
3.54 kg

Umgebungsbedingungen

Min Betriebstemperatur
0 °C
Max. Betriebstemperatur
40 °C
Zulässige Luftfeuchtigkeit im Betrieb
0 - 80% (nicht kondensierend)
Min. Lagertemperatur
-20 °C
Max. Lagertemperatur
60 °C
