Waren-Nr.: 3362031

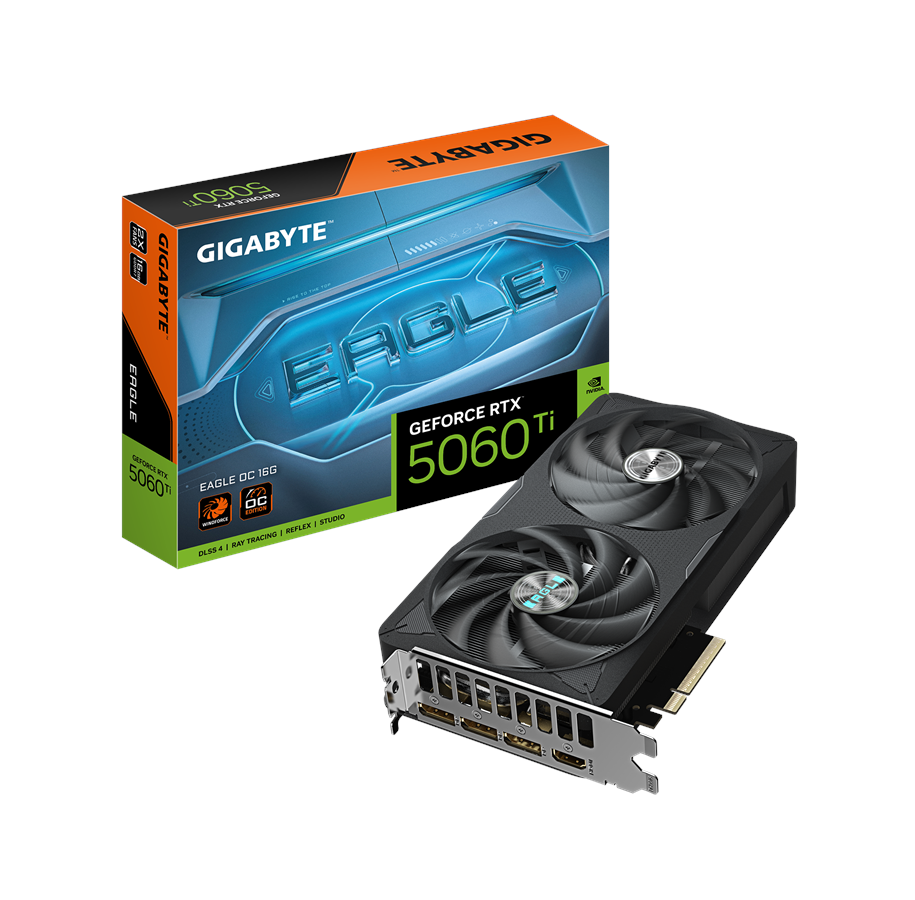

GIGABYTE GeForce RTX 5060 Ti EAGLE OC - 16GB GDDR7 RAM - Grafikkarte

Grafikkarte, NVIDIA GeForce RTX 5060 Ti Overclocked (Core clock 2241 MHz / Boost clock 2617 MHz), 4608 CUDA Kerne, unterstützt NVIDIA DLSS 4, 16GB GDDR7 (Memory clock 28 GHz) - 128-bit, PCI-Express 5.0 x16 (x8 mode), 3 x DisplayPort 2.1a / 1 x HDMI 2.1b Verbindungen, Stützen NVIDIA G-Sync, 1 x 8-Pins Netzanschluss, empfohlenes Netzteil: 650 Watt, kurze Länge: 215mm, PCI-Port-Breite: 2 slots, Gigabyte WindForce 2X low noise kühler - mit Lüftermodus mit Null U/min (bei niedriger Temperatur), modell-Nr: GV-N506TEAGLE OC-16GD

Die Ware ist leider nicht mehr verfügbar.

The GIGABYTE GeForce RTX 5060 Ti EAGLE OC 16G is designed for high-performance gaming and content creation, featuring a powerful NVIDIA GeForce RTX 5060 Ti graphics processor. With a 16 GB capacity of GDDR7 SDRAM, this graphics card ensures smooth gameplay and stunning visuals at resolutions up to 7680 x 4320. Users can take advantage of advanced technologies such as NVIDIA DLSS 4, 4th Gen Ray Tracing Cores, and 5th Gen Tensor Cores for lifelike graphics and optimal performance. The GIGABYTE WINDFORCE cooling design, coupled with a dual fan setup and metal backplate, enhances thermal efficiency while minimizing noise during intensive tasks.

The ease of connecting to multiple displays is supported by three DisplayPorts and one HDMI output, allowing a maximum of four monitors to be used simultaneously. With PCI Express 5.0 compatibility and DirectX 12 support, this graphics card is prepared for the demands of modern gaming and graphical applications. The EAGLE OC Edition features advanced cooling technologies like composite copper heat pipes and a screen cooling system to maintain optimal temperatures. Gamers can benefit from NVIDIA G-Sync readiness and NVIDIA Avatar Cloud Engine (ACE) for an enhanced gaming experience without stuttering or tearing.

Gehäusezubehör

Hersteller
Waren-Nr.
3362031
Modell
GV-N506TEAGLE OC-16GD
EAN
4719331356071
Produktbeschreibung
Gigabyte GeForce RTX 5060 Ti EAGLE OC 16G - OC Edition - Grafikkarte - GeForce RTX 5060 Ti - 16 GB
Gerätetyp
Grafikkarte
Bustyp
PCI Express 5.0
Grafikprozessor
NVIDIA GeForce RTX 5060 Ti
Arbeitsspeicher
16 GB GDDR7
Speichergeschwindigkeit
28 Gbps
Core Clock
2617 MHz
CUDA-Kerne
4608
Speicherschnittstelle
128-bit
Max Auflösung
7680 x 4320
Anzahl der max. unterstützten Bildschirme
4
Schnittstellendetails
3 x DisplayPort
HDMI
API-Unterstützung
OpenGL 4.6, DirectX 12
Abmessungen (Breite x Tiefe x Höhe)
4 cm x 21.5 cm x 12.2 cm

Allgemein

Gerätetyp
Grafikkarte
Bustyp
PCI Express 5.0
Grafikprozessor
NVIDIA GeForce RTX 5060 Ti
Core Clock
2617 MHz
CUDA-Kerne
4608
Max Auflösung
7680 x 4320
Anzahl der max. unterstützten Bildschirme
4
Schnittstellendetails
3 x DisplayPort
HDMI
API-Unterstützung
OpenGL 4.6, DirectX 12
Besonderheiten
Dual Fan Design, NVIDIA Blackwell GPU architecture, NVIDIA DLSS 4, NVIDIA G-Sync-fähig, NVIDIA Reflex 2, NVIDIA Multi Frame Generation, NVIDIA Frame Warp, NVIDIA Avatar Cloud Engine (ACE), 5. Generation Tensor Cores, 4. Generation Ray Tracing Cores, 9. Generation NVIDIA Encoder, Nvidia Broadcast, Nvidia Studio, GIGABYTE WINDFORCE-Kühlungsdesign, Hawk Fan Design, Server-Grade Wärmeleitpaste, komposite Kupfer-Wärrohre, Gigabyte Alternate Spinning, 3D Active Fan, Graphene Nano Lubricant, Bildschirmkühlung, Metallrückwand, Ultra Durable VGA

Arbeitsspeicher

Grösse
16 GB
Technologie
GDDR7 SDRAM
Speichergeschwindigkeit
28 Gbps
Busbreite
128-bit

Systemanforderungen

Erfoderliche Leistungsversorgung
650 W
Zusätzliche Anforderungen
8-poliger PCI Express-Stromversorgungsanschluss

Verschiedenes

Software inbegriffen
GeForce Game Ready Treiber, NVIDIA Studio-Treiber, Gigabyte Control Center
Kennzeichnung
DisplayPort 2.1b
Breite
4 cm
Tiefe
21.5 cm
Höhe
12.2 cm
