Thermaltake TR100 - Gehäuse - Weiß

Size Down, Power Up

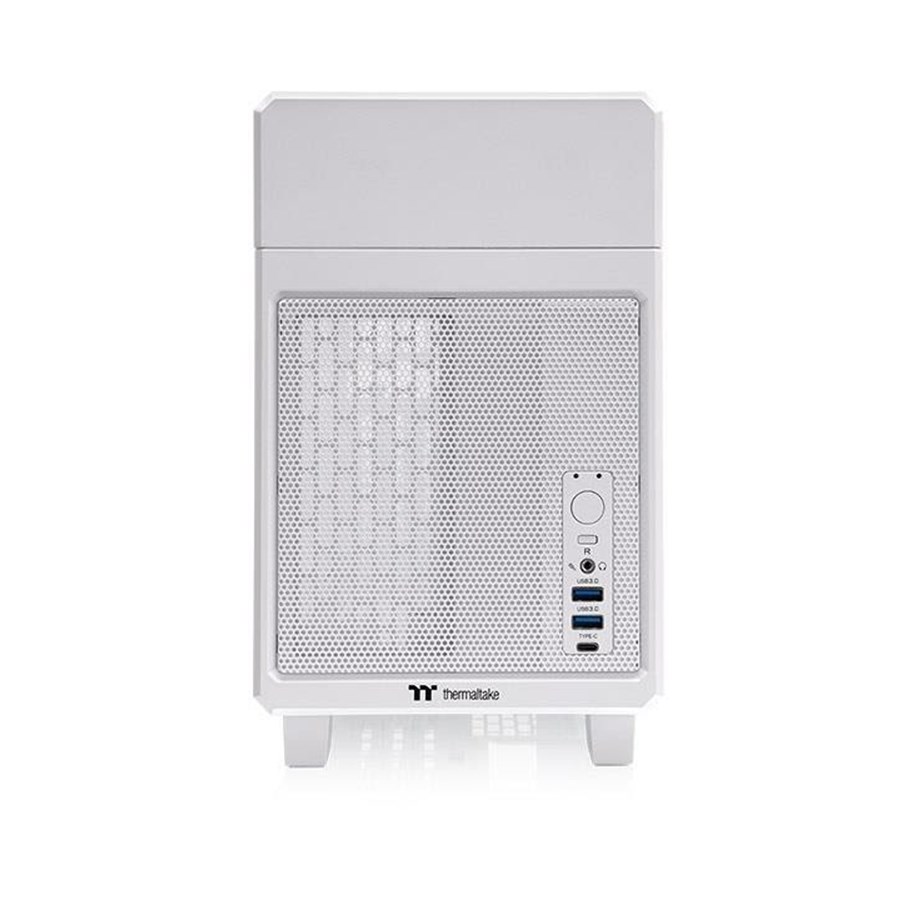

The TR100 Snow Mini Tower Chassis is a compact, dual-chamber, Mini-ITX case that is designed for those who demand performance and portability. The dual-chamber design positions the mini-ITX motherboard and SFX PSU in the right chamber, with the graphics card in the left, connected via a PCIe 4.0 riser cable. It supports two 120mm/140mm top fans and up to a 280mm AIO for cooling, plus two 2.5” SSDs, one in each chamber. All panels are removable and well-ventilated for optimal cooling and an easier build. To make it more visual appealing, a separately sold 3.9" LCD Screen Kit is also an option. Additionally, the separately sold suitcase allows users to carry the PC case and a complete gaming setup with them!

Compact Design
The TR100 Snow is an 18.4-liter SFF (Small Form Factor) chassis that offers a compact footprint, delivering exceptional flexibility for both work and gaming setups.

Superior GPU Support
The TR100 Snow supports graphics cards up to 360mm in length and 70mm in thickness. The detachable rear PCI-E panel and integrated GPU holder make it easy to install and secure large, thick GPUs in a portable gaming system.

Efficient Cooling Solutions
The TR100 Snow supports up to a 240/280mm radiator (max. thickness 53mm) on the top bracket for CPU cooling. For air cooling, it accommodates a CPU cooler up to 68mm in height and two 120/140mm fans on the top.

Redefining Portable Gaming
More than just a case, The TR100 Snow is a complete, travel-ready gaming solution. Whether you're traveling for business or pleasure, editing video or designing graphics, playing games or using VR, there's no need to sacrifice performance or leave your gaming experience behind!

TT Travel Trunk for TR100
The lightweight and durable luggage is designed to carry the PC case and a full gaming setup, including a VR headset, portable monitor, keyboard, and mouse.

Easy Access with Removable Panels
The TR100's modular design allows you detach almost every panel. The side panels are secured with magnets, while the top and bottom panels are held by spring-loaded captive screws.

SFX PSU Support
The TR100 Snow features a removable PSU bracket and two sets of screw holes, supporting both SFX and SFX-L PSUs for higher wattage needs.

Visually Pleasing, Totally Interactive
Maximize your TR100’s visual effects by upgrading it with our LCD Screen Kit.

The 3.9” LCD Display allows you to monitor real-time information and upload any images or GIFs to add extra flair using the TT RGB Plus software.

Personalize Your LCD Display
Through the TT RGB Plus, the 3.9'' LCD display presents real-time information and plays JPG and GIF files with 128*480 resolution. What’s more is users can even show the time and weather information on the display, bringing great visual aesthetics and highly customizable functions to your build.

Air Intake and Exhaust
Despite its compact size, The TR100 Snow still has well-designed cold air intakes and hot air exhausts to keep the internal temperature low at all times.

We've Tested Everything, So You Don’t Have To
At Thermaltake, we always stress test our products under harsh conditions to ensure product quality. The TR100 Snow products were tested at 100% full load for 30 minutes, with the most high-end CPU, GPU, and motherboard at the time of test, while paring with a consumer-style setup, allowing us to test how the chassis performs under real-world situations.

Massive Airflow & Incredible Performance
Thermal images taken during thermal testing. We can see that despite its compact design, The TR100 Snow still guarantees good cooling performance and a low internal temperature while using the highest quality components.

Perfect Dust Protection
There are filters at the top, front and side of the chassis to protect the system from dust.

Hardware Support and Cooling Solution
Despite its compact footprint, The TR100 Snow still has good hardware support. It can support a CPU cooler with a maximum height of 68mm, a GPU with a maximum length of 360mm (and up to 70mm in width), a power supply with a length of up to 130mm, and two 2.5" SSDs. For cooling support, up to two 120mm/140mm fans or a 280mm all-in-one CPU cooler can be placed on top of the chassis for effective cooling.

Storage Support
The TR100 Snow supports up to two 2.5" SSDs, one in each chamber.

DMD: Dismantlable Modular Design
No more unreachable screw corners or gaps, installation can be a breeze with our Dismantlable Modular Design.
