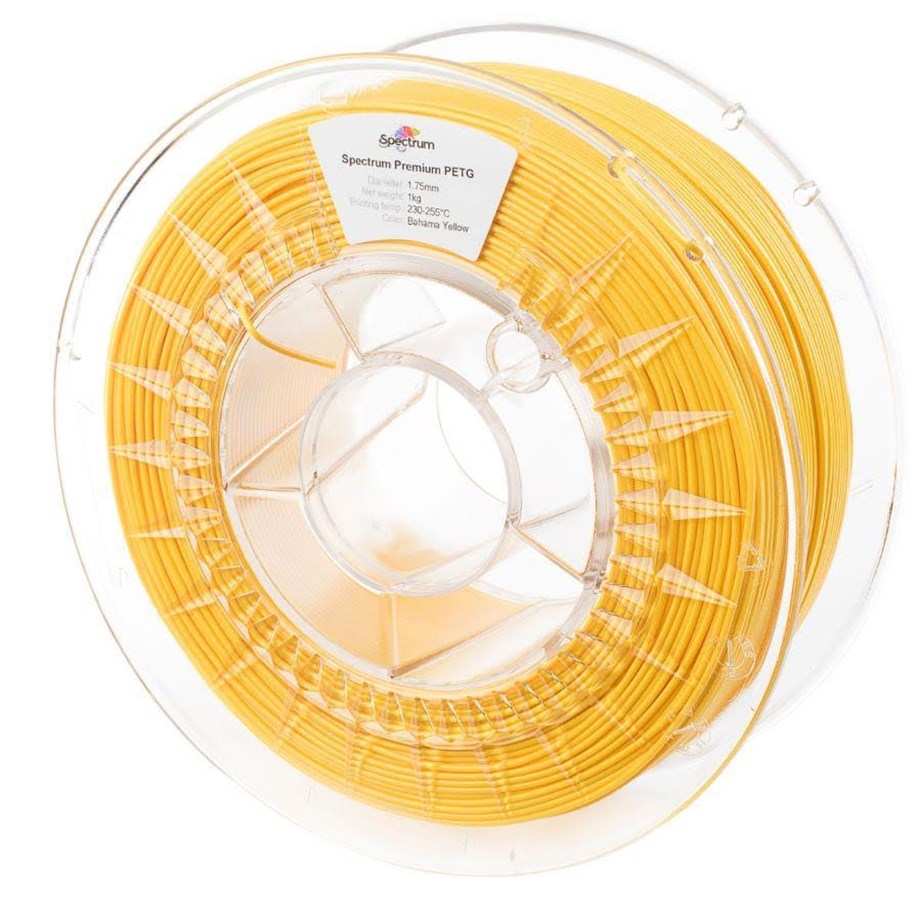

Spectrum 3D Filament / PETG Premium / ⌀ 1.75 mm / Bahama Yellow / 1 kg
PETG - gelb - Filament für 3D-Drucker
PETG (Polyethylenterephthalat-Glykol) ist ein Filamentmaterial, das die Stärke und Haltbarkeit von ABS mit der einfachen Druckbarkeit von PLA kombiniert. Es ist bekannt für seine hohe Schlagfestigkeit, gute Flexibilität und Beständigkeit gegen Chemikalien und Feuchtigkeit, was es ideal für funktionelle Teile und den Außeneinsatz macht. PETG hat eine höhere Schmelztemperatur als PLA und erfordert oft ein beheiztes Druckbett, um Verformungen zu vermeiden. Außerdem lässt es sich relativ leicht drucken und liefert glatte und stabile Druckoberflächen.
- Gewicht: 1 kg.
- Länge: 327,36 m.
- Durchmesser: 1,75 ± 0,05 mm.
Schmelztemperatur: 230 - 255 °C.
Druckbetttemperatur: 60 - 80 °C.
Druckgeschwindigkeit: 40-350 mm.
Dichte (bei 21,5 °C): 1,27 g/cm³.
Schlagfestigkeit: 12,6 KJ/m².
Zugfestigkeit: 48 %.
Temperaturbeständigkeit: 78 °C. vor Verformung
Fließspannung bei 50 mm/min: 26 MPa (3D-Druck)
- Spule: 200mm Außendurchmesser & 52mm Innendurchmesser & 67mm Höhe, in Plastik
High transparency and chemical resistance
Premium PETG is a material based on glycol-modified polyethylene terephthalate. Items printed using this material have a high content of the crystalline phase, which allows for the near transparency effect at a small number of outer perimeters of additive manufactured items. A major advantage provided by Premium PETG are the virtually zero shrinkage rate and low absorption of moisture as compared to other thermoplastics used for FDM/FFF 3D printing.
As regards other properties of Premium PETG, note the good creep resistance under constant load conditions. It results from the very good cohesion between the layers of the material applied.
Key features:
- High transparency as compared to other materials for additive manufacturing
- Very good mechanical properties as regards rigidity, hardness and impact resistance
- Chemical resistant
- High dimensional accuracy
- Combines the advantages of PLA and ABS
- Exceptional adhesion between layers
- Odour-free printing
- Highly durable and resilient
- A food-grade base material
Applications:
- Visual and functional prototyping
- Fit testing
- Concept models
- Manufacturing aids
- Manufacturing of semi-transparent enclosures and backlit sections of various boards and signs
- End-use parts
- Tooling
Packaging
Filament is reeled on the neat, transparent spool. Each spool contains information on the type of material, diameter and recommended printing temperature. Filament is vacuum-packed with a moisture absorber. Whole product packed in the original, Spectrum Filaments packaging.
