Waren-Nr.: 2759400

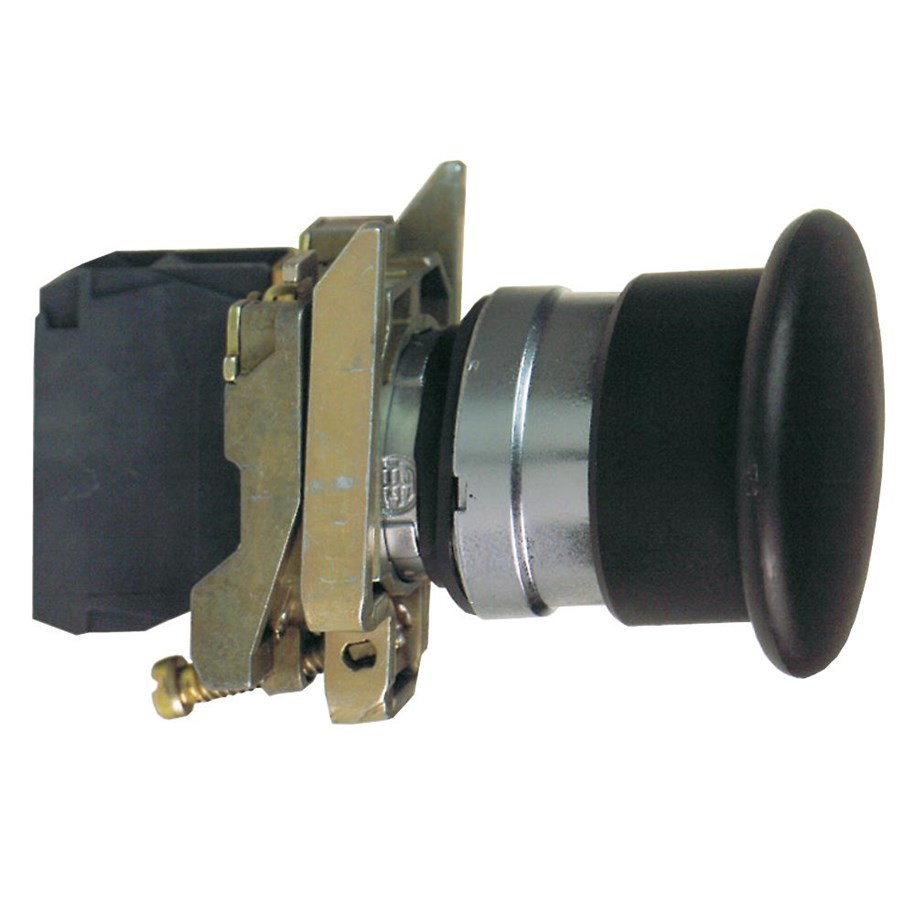

Schneider Electric Harmony toad print complete with ø40 mm toad head in black w

black Ø40 mushroom pushbutton Ø22 spring return 1NO

30,50 € 25,63 € exkl. MwSt.
Günstigste Versandoption 4,99 €
Verfügbar - 2-4 Werktage Lieferzeit

Harmony paddle switch complete with Ø40 mm black paddle head with spring return 1xNO, XB4BC21. Product description: Pushbuttons, switches and indicators with chrome-plated metal bezel, Ø 22 mm. Very wide range of products including pushbuttons (momentary), multi-function pushbuttons in the same Ø22 hole, switches and key-operated switches, indicators (LEDs or bulbs), combined functions such as contact + signal (illuminated pushbutton). Finished products (XB**) or components for customer assembly (ZB**). Connection to contact elements via screw terminals with self-clamping feature, plug-in connectors or pre-wired cables, spade connectors or spring terminals. High-power contacts rated at 10A but typically used at 6A; gold contacts available; early-make/late-break versions available. Robust and safe design certified to meet requirements on all continents: EN/IEC, UL CSA CCC Gost JIS NEMA... CE marked; up to IP66/IP69K protection rating against dust/water ingress; low-power/high-power electrical contacts available; vibration-resistant connection screws that do not require re-tightening are standard features. Also suitable for harsh environments where high-pressure cleaning is required along with resistance to dust and extreme temperatures - see More Links for more information on accessories designed specifically for these applications. Simple installation requires only one program setting using a single locking screw that prevents rotation of the device once installed - common accessories are also available

Hersteller
Waren-Nr.
2759400
Modell
XB4BC21
EAN
3389110118865
Zum Hersteller:
Produkttyp
Knopf
Produktfarbe
Schwarz
Internationale Schutzart (IP-Code)
IP66
IK-Kodex
IK06
Überspannungskategorie
Klasse I
Mechanische Lebensdauer (Zyklen)
5000000
Elektrische Lebensdauer (Zyklen)
1000000
Gewicht
122 g
Paketgewicht
126 g
Verpackungstiefe
45 mm
Verpackungsbreite
90 mm
Verpackungshöhe
54 mm
Menge pro Packung
1 Stück(e)
Betriebstemperatur
-40 - 70 °C
Temperaturbereich bei Lagerung
-40 - 70 °C

Merkmale

Produkttyp
Knopf
Produktfarbe
Schwarz
Internationale Schutzart (IP-Code)
IP66
IK-Kodex
IK06
Überspannungskategorie
Klasse I
Mechanische Lebensdauer (Zyklen)
5000000
Elektrische Lebensdauer (Zyklen)
1000000

Gewicht und Abmessungen

Gewicht
122 g
Paketgewicht
126 g
Verpackungstiefe
45 mm
Verpackungsbreite
90 mm
Verpackungshöhe
54 mm
Menge pro Packung
1 Stück(e)

Betriebsbedingungen

Betriebstemperatur
-40 - 70 °C
Temperaturbereich bei Lagerung
-40 - 70 °C
