Waren-Nr.: 3248839

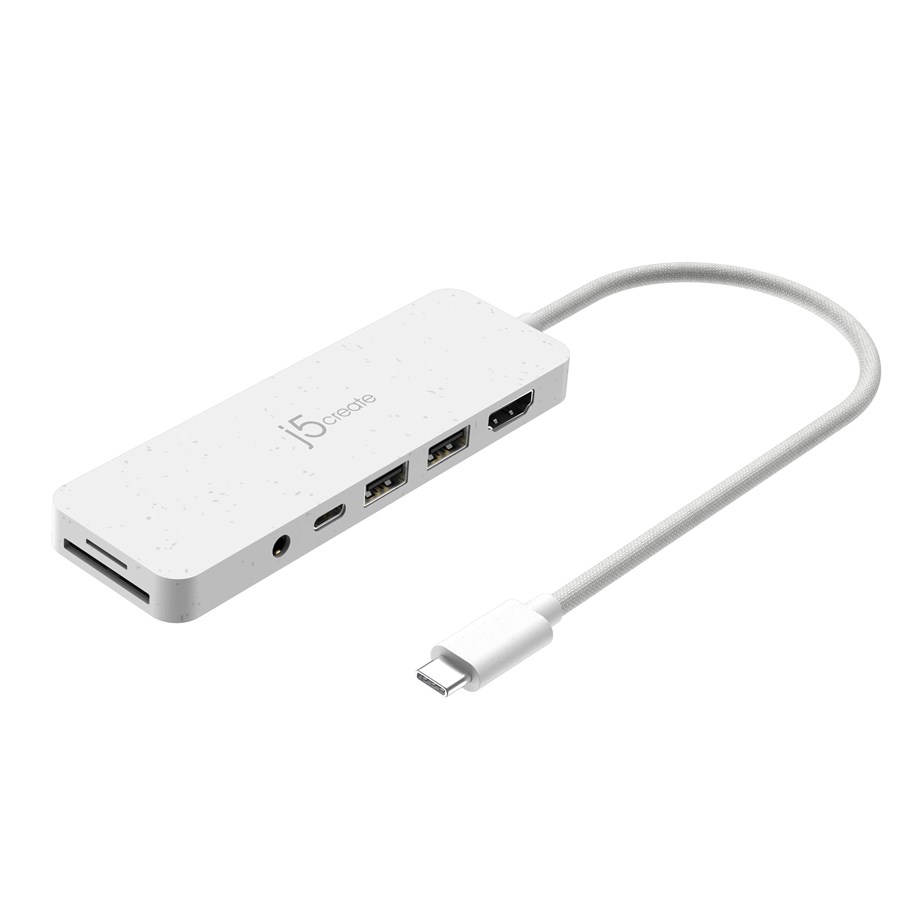

j5create JCD373EW-N - USB-C Multi-Port Hub (With PD)
Dockingstation, USB-C 3.2, HDMI
45,58 €
38,30 € exkl. MwSt.
Günstigste Versandoption 4,99 €
Verfügbar - 4-6 Werktage Lieferzeit
Das Gerät unterstützt USB PD-Schnellladung
USB PD
The j5create JCD373EW docking station is a comprehensive solution for expanding your device's connectivity. With its array of ports including USB 3.2 Gen 1, USB-C with Power Delivery 3.0, and HDMI, it caters to a variety of connection needs. The docking station supports high-resolution output up to 3840 x 2160 at 30 Hz, making it ideal for professionals who require high-quality video for presentations or extended displays.
Its compact design, featuring an integrated USB-C cable and durable ABS housing, ensures that it is not only portable but also built to last. The inclusion of SD and microSD slots adds to its versatility, allowing for easy access to memory without the need for additional adapters. Moreover, its eco-friendly and self-powered features mean it operates efficiently without an external power source, making it a smart choice for environmentally conscious users.
Its compact design, featuring an integrated USB-C cable and durable ABS housing, ensures that it is not only portable but also built to last. The inclusion of SD and microSD slots adds to its versatility, allowing for easy access to memory without the need for additional adapters. Moreover, its eco-friendly and self-powered features mean it operates efficiently without an external power source, making it a smart choice for environmentally conscious users.
Hersteller
Waren-Nr.
3248839
Modell
JCD373EW-N
EAN
4712795087536
Zum Hersteller:
Anzahl Anschlüsse
6
Hostschnittstelle
USB Typ-C
Hub-Schnittstellen
3.5mm, HDMI, USB 3.2 Gen 1 (3.1 Gen 1) Type-A, USB Typ-C
USB 3.2 Gen 1 (3.1 Gen 1) Anzahl der Anschlüsse vom Typ A
2
USB 3.2 Gen 1 (3.1 Gen 1) Anzahl der Anschlüsse vom Typ C
1
Anzahl HDMI-Anschlüsse
1
USB-Typ-C DisplayPort-Wechselmodus
Ja
Kartenleser-Slot
1
Kompatible Speicherkarten
MicroSD (TransFlash), SD
Datenübertragungsrate
5000 Mbit/s
Produktfarbe
Weiß
USB Power Delivery
Ja
USB-Stromversorgung bis zu
100 W
Anzahl der Display unterstützt
1
Kabellänge
0,17 m
Plug & Play
Ja
Kompatible Produkte
• Available DisplayPort™ Alt Mode over USB-C® port for video output
• Available USB™ Power Delivery over USB-C®
to support charging to a mobile device
Vollduplex
Nein
Auto MDI/MDI-X
Nein
Unterstützung Datenflusssteuerung
Nein
Eingangsspannung
20 V
Eingangsstrom
3 A
Ausgangsspannung
20 V
Ausgangsstrom
3 A
Unterstützt Windows-Betriebssysteme
Ja
Unterstützt Mac-Betriebssysteme
Ja
Unterstützung anderer Betriebsysteme
ChromeOS
Mindestsystemvoraussetzungen
• Available DisplayPort™ Alt Mode over USB-C® port for video output
• Available USB™ Power Delivery over USB-C® to support charging to a mobile device
Breite
39 mm
Tiefe
11 mm
Höhe
122 mm
Gewicht
51 g
Menge pro Packung
1 Stück(e)
Verpackungsbreite
189,9 mm
Verpackungstiefe
85 mm
Verpackungshöhe
17,5 mm
Paketgewicht
97,5 g
Verpackungsart
Box
Verpackungsinhalt
• 1 - JCD373E Eco-Friendly USB-C® Multi-Port Hub with Power Delivery
• 1 - Quick Installation Guide (QIG)
Betriebstemperatur
-1 - 41 °C
Temperaturbereich bei Lagerung
-17 - 68 °C
Relative Luftfeuchtigkeit in Betrieb
0 - 85%
Luftfeuchtigkeit bei Lagerung
0 - 85%
Anschlüsse und Schnittstellen
Anzahl Anschlüsse
6
Hostschnittstelle
USB Typ-C
Hub-Schnittstellen
3.5mm, HDMI, USB 3.2 Gen 1 (3.1 Gen 1) Type-A, USB Typ-C
USB 3.2 Gen 1 (3.1 Gen 1) Anzahl der Anschlüsse vom Typ A
2
USB 3.2 Gen 1 (3.1 Gen 1) Anzahl der Anschlüsse vom Typ C
1
Anzahl HDMI-Anschlüsse
1
USB-Typ-C DisplayPort-Wechselmodus
Ja
Kartenleser-Slot
1
Kompatible Speicherkarten
MicroSD (TransFlash), SD
Merkmale
Datenübertragungsrate
5000 Mbit/s
Produktfarbe
Weiß
USB Power Delivery
Ja
USB-Stromversorgung bis zu
100 W
Anzahl der Display unterstützt
1
Kabellänge
0,17 m
Plug & Play
Ja
Kompatible Produkte
• Available DisplayPort™ Alt Mode over USB-C® port for video output
• Available USB™ Power Delivery over USB-C®
to support charging to a mobile device
Netzwerk
Vollduplex
Nein
Auto MDI/MDI-X
Nein
Unterstützung Datenflusssteuerung
Nein
Energie
Eingangsspannung
20 V
Eingangsstrom
3 A
Ausgangsspannung
20 V
Ausgangsstrom
3 A
Systemanforderung
Unterstützt Windows-Betriebssysteme
Ja
Unterstützt Mac-Betriebssysteme
Ja
Unterstützung anderer Betriebsysteme
ChromeOS
Mindestsystemvoraussetzungen
• Available DisplayPort™ Alt Mode over USB-C® port for video output
• Available USB™ Power Delivery over USB-C® to support charging to a mobile device
Gewicht und Abmessungen
Breite
39 mm
Tiefe
11 mm
Höhe
122 mm
Gewicht
51 g
Verpackungsdaten
Menge pro Packung
1 Stück(e)
Verpackungsbreite
189,9 mm
Verpackungstiefe
85 mm
Verpackungshöhe
17,5 mm
Paketgewicht
97,5 g
Verpackungsart
Box
Lieferumfang
Verpackungsinhalt
• 1 - JCD373E Eco-Friendly USB-C® Multi-Port Hub with Power Delivery
• 1 - Quick Installation Guide (QIG)
Betriebsbedingungen
Betriebstemperatur
-1 - 41 °C
Temperaturbereich bei Lagerung
-17 - 68 °C
Relative Luftfeuchtigkeit in Betrieb
0 - 85%
Luftfeuchtigkeit bei Lagerung
0 - 85%
