Waren-Nr.: 3121056

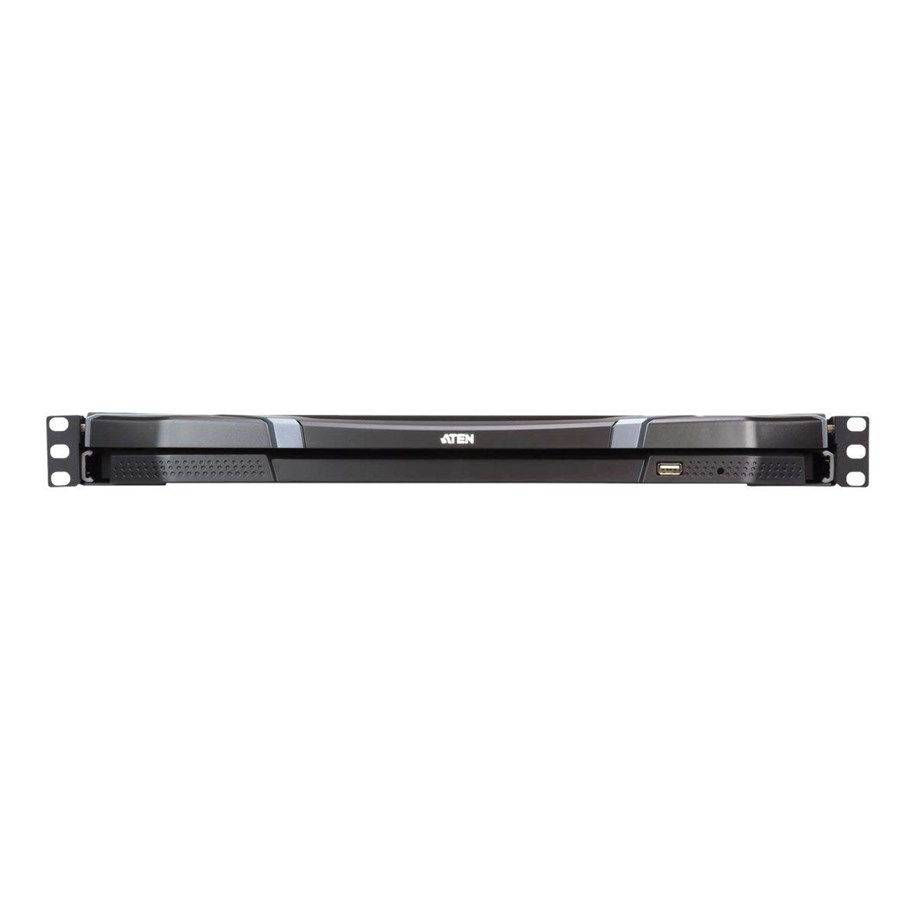

18" ATEN CL3800 - KVM console - Full HD (1080p) - 18.5"

KVM-Konsole, USB, 47 cm (18.5"), Rack, einbaufähig, 1920 x 1080 Full HD (1080p) @ 60 Hz, 350 cd/m², 1000:1, 20 ms, HDMI, DVI-D, VGA, 2xUSB, 1U

Die Ware ist leider nicht mehr verfügbar.

The CL3800 USB HDMI DVI VGA LCD Console is a short depth dual rail LCD KVM console featuring an LED-backlit widescreen LCD monitor with an integrated keyboard and touchpad. The CL3800 also provides a space-saving solution for special environments, such as outside broadcast vans (OB vans) and compact control rooms. The CL3800 supports three types of video input – HDMI, DVI, and VGA - and provides the ultimate in installation flexibility by allowing users to connect the console and the computer via any of the three types of video source. The CL3800’s full HD widescreen LCD monitor ensures excellent video quality and provides ample viewing area.Furthermore, the dual rail design enables the LCD monitor, keyboard and touchpad to operate independently of each other. To maximize space utilization, the keyboard and touchpad modules can slide back to "hideaway" when not in use, while the thin profile LCD monitor rotates back, flush against the rack, to allow the convenient monitoring of computer activity. For added convenience, users can choose to manage the computer from an external console. The CL3800 features a port for an external USB mouse on the unit’s front panel, while ports for the second KVM console (USB keyboard/mouse and HDMI, DVI, or VGA monitor) are provided on the rear panel. The CL3800 also includes two mini stereo ports for connecting audio speakers.With a rich feature set, the CL3800 is designed to exceed the requirements for space utility optimization, superior video quality, adaptive deployment, and operational versatility, and is ideal for applications such as mobile live streaming in the broadcasting sector or control rooms with limited space in any industry.

Hersteller
Waren-Nr.
3121056
Modell
CL3800NW-ATA-XG
EAN
4719264646430
Zum Hersteller:
Bildschirmdiagonale
47 cm (18.5")
Display
LCD
Rack-Kapazität
1U
Produktfarbe
Schwarz
Relative Luftfeuchtigkeit in Betrieb
0 - 80%
Maximale Auflösung
1920 x 1080 Pixel
Rack-Einbau
Ja
Anzahl der Computer
1
LED-Anzeigen
Status
Schaltknopf
Ja
Konformitätsbescheinigungen
RoHS
Nachhaltigkeitskonformität
Ja
Anzahl VGA (D-Sub) Anschlüsse
2
Tastatur Porttyp
USB
Maus-Porttyp
USB
Video Porttyp
HDMI
Anzahl USB 2.0 Ports Typ B
1
Tastatursprache
US Englisch
Tastaturaufbau
QWERTY
Kurzbefehle
Ja
Netzteiltyp
AC
Stromverbrauch (Standardbetrieb)
26,8 W
Eingangsstrom
1 A
Betriebstemperatur
0 - 40 °C
Temperaturbereich bei Lagerung
-20 - 60 °C
Breite
514,2 mm
Höhe
42,8 mm
Tiefe
480,6 mm
Gewicht
9,61 kg
Paketgewicht
12,9 kg
Verpackungsbreite
612 mm
Verpackungstiefe
658 mm
Verpackungshöhe
135 mm
Mitgelieferte Kabel
AC, KVM
Betriebsanleitung
Ja
Rackmontageset
Ja
Nettogewicht Hauptkarton
10,2 kg
Breite des Versandkartons
612 mm
Länge des Versandkartons
658 mm
Höhe des Versandkartons
135 mm
Gewicht Versandkarton
12,9 kg
Anzahl Produkte pro Versandkarton
1 Stück(e)

Bildschirm

Bildschirmdiagonale
47 cm (18.5")
Display
LCD

Technische Details

Rack-Kapazität
1U
Produktfarbe
Schwarz
Relative Luftfeuchtigkeit in Betrieb
0 - 80%
Maximale Auflösung
1920 x 1080 Pixel
Rack-Einbau
Ja
Anzahl der Computer
1
LED-Anzeigen
Status
Schaltknopf
Ja
Konformitätsbescheinigungen
RoHS
Nachhaltigkeitskonformität
Ja

Anschlüsse und Schnittstellen

Anzahl VGA (D-Sub) Anschlüsse
2
Tastatur Porttyp
USB
Maus-Porttyp
USB
Video Porttyp
HDMI
Anzahl USB 2.0 Ports Typ B
1

Tastatur

Tastatursprache
US Englisch
Tastaturaufbau
QWERTY
Kurzbefehle
Ja

Energie

Netzteiltyp
AC
Stromverbrauch (Standardbetrieb)
26,8 W
Eingangsstrom
1 A

Betriebsbedingungen

Betriebstemperatur
0 - 40 °C
Temperaturbereich bei Lagerung
-20 - 60 °C

Gewicht und Abmessungen

Breite
514,2 mm
Höhe
42,8 mm
Tiefe
480,6 mm
Gewicht
9,61 kg

Verpackungsdaten

Paketgewicht
12,9 kg
Verpackungsbreite
612 mm
Verpackungstiefe
658 mm
Verpackungshöhe
135 mm

Lieferumfang

Mitgelieferte Kabel
AC, KVM
Betriebsanleitung
Ja
Rackmontageset
Ja

Logistikdaten

Nettogewicht Hauptkarton
10,2 kg
Breite des Versandkartons
612 mm
Länge des Versandkartons
658 mm
Höhe des Versandkartons
135 mm
Gewicht Versandkarton
12,9 kg
Anzahl Produkte pro Versandkarton
1 Stück(e)
