Waren-Nr.: 3190562

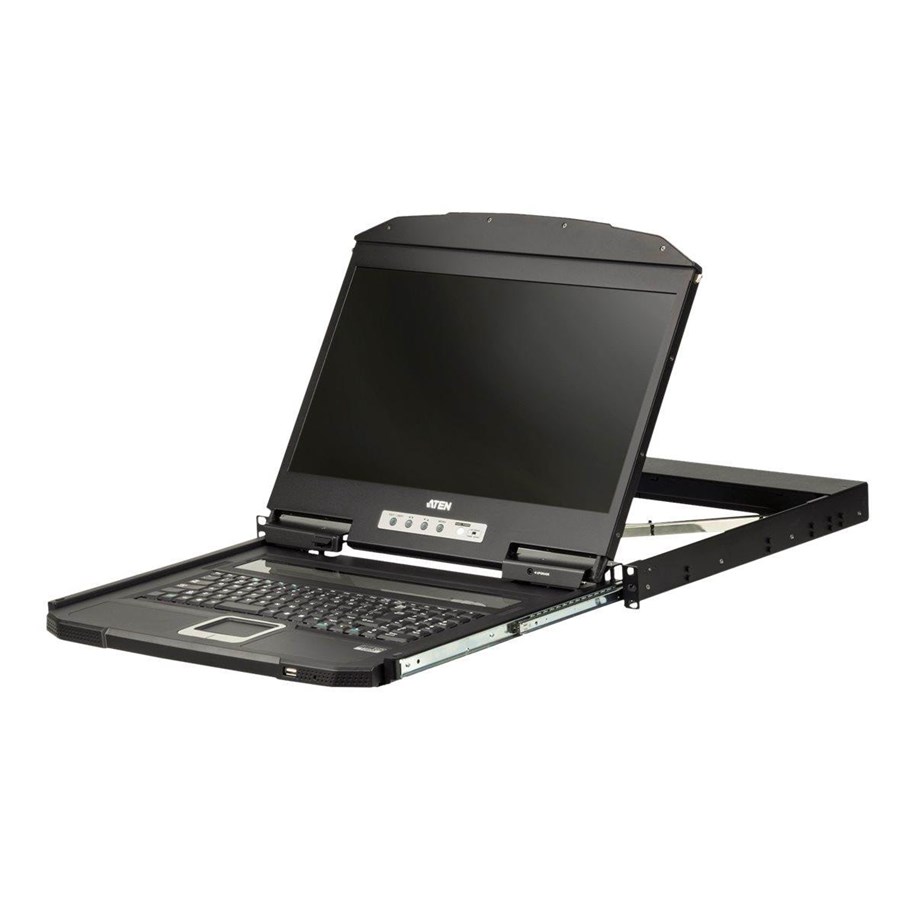

18" ATEN CL3700NW - KVM console - Full HD (1080p) - 18.5"

KVM-Konsole, USB, 47 cm (18.5"), Rack, einbaufähig, 1920 x 1080 Full HD (1080p) @ 60 Hz, 350 cd/m², 1000:1, 20 ms, HDMI, 2xUSB, Schwarz, 1U

1.469,77 € 1.235,10 € exkl. MwSt.
Günstigste Versandoption 4,99 €
Bestellware - 2-4 Tage Lieferzeit

The CL3700 USB HDMI LCD console is a short-depth single-rail LCD KVM console featuring an 18.5" LED-backlit widescreen LCD monitor with an integrated keyboard and touchpad. The short-depth design fits all 19" equipment cabinets and is especially suitable for shallow racks. The CL3700 provides an ideal space-saving solution for special environments such as outside broadcast vans (OB vans) and compact control rooms.The CL3700 is a dedicated front end sliding console for compatible HDMI KVM switches. The CL3700NW's Full HD widescreen LCD monitor ensures excellent video quality and provides ample viewing area. For added convenience, users can choose to manage the computer from an external console. The CL3700 features a port for an external USB mouse on the unit's front panel, while ports for the second KVM console (USB keyboard/mouse and HDMI monitor) are provided on the rear panel.With a rich feature set, the CL3700 is designed to exceed the requirements for space utility optimization, superior video quality, adaptive deployment, and operational versatility and is ideal for applications such as mobile live streaming in the broadcasting sector or control rooms with limited space in any industry.

Hersteller
Waren-Nr.
3190562
Modell
CL3700NW-ATA-XG
EAN
4719264647284
Zum Hersteller:
Bildschirmdiagonale
47 cm (18.5")
Display-Auflösung
1920 x 1080 Pixel
Display
TFT-LCD
Helligkeit
350 cd/m²
Kontrastverhältnis
1000:1
Bildwinkel, horizontal
178°
Bildwinkel, vertikal
178°
Pixel Abstand
0,213 x 0,213 mm
Seitenverhältnis
16:9
Display-Typ
TFT
Reaktionszeit
20 ms
Anzahl der Farben des Displays
16,78 Millionen Farben
Rack-Kapazität
1U
Material
Metall, Kunststoff
Produktfarbe
Schwarz
Relative Luftfeuchtigkeit in Betrieb
0 - 80%
Maximale Auflösung
1920 x 1200 Pixel
Rack-Einbau
Ja
Anzahl der Computer
1
Schaltknopf
Ja
Konformitätsbescheinigungen
RoHS
3,5 mm (1/8-inch) in
Ja
Schnittstelle
HDMI
Tastatur Porttyp
USB
Maus-Porttyp
USB
Video Porttyp
HDMI
Menge USB 2.0-Anschlüsse
3
Anzahl USB 2.0 Ports Typ B
1
Tastatursprache
US Englisch
Tastaturaufbau
QWERTY
Stromverbrauch (Standardbetrieb)
23,9 W
Netzteil Eingansgsspannung
100 - 240 V
Netzteilfrequenz
50/60 Hz
Eingangsstrom
1 A
Betriebstemperatur
0 - 40 °C
Temperaturbereich bei Lagerung
-20 - 60 °C
Breite
480,6 mm
Höhe
477 mm
Tiefe
42,8 mm
Gewicht
10,1 kg
Paketgewicht
11,9 kg
Verpackungsbreite
612 mm
Verpackungstiefe
658 mm
Verpackungshöhe
135 mm
Nettogewicht Hauptkarton
10,1 kg
Breite des Versandkartons
612 mm
Länge des Versandkartons
658 mm
Höhe des Versandkartons
135 mm
Gewicht Versandkarton
12,6 kg
Anzahl Produkte pro Versandkarton
1 Stück(e)

Bildschirm

Bildschirmdiagonale
47 cm (18.5")
Display-Auflösung
1920 x 1080 Pixel
Display
TFT-LCD
Helligkeit
350 cd/m²
Kontrastverhältnis
1000:1
Bildwinkel, horizontal
178°
Bildwinkel, vertikal
178°
Pixel Abstand
0,213 x 0,213 mm
Seitenverhältnis
16:9
Display-Typ
TFT
Reaktionszeit
20 ms
Anzahl der Farben des Displays
16,78 Millionen Farben

Technische Details

Rack-Kapazität
1U
Material
Metall, Kunststoff
Produktfarbe
Schwarz
Relative Luftfeuchtigkeit in Betrieb
0 - 80%
Maximale Auflösung
1920 x 1200 Pixel
Rack-Einbau
Ja
Anzahl der Computer
1
Schaltknopf
Ja
Konformitätsbescheinigungen
RoHS

Anschlüsse und Schnittstellen

3,5 mm (1/8-inch) in
Ja
Schnittstelle
HDMI
Tastatur Porttyp
USB
Maus-Porttyp
USB
Video Porttyp
HDMI
Menge USB 2.0-Anschlüsse
3
Anzahl USB 2.0 Ports Typ B
1

Tastatur

Tastatursprache
US Englisch
Tastaturaufbau
QWERTY

Energie

Stromverbrauch (Standardbetrieb)
23,9 W
Netzteil Eingansgsspannung
100 - 240 V
Netzteilfrequenz
50/60 Hz
Eingangsstrom
1 A

Betriebsbedingungen

Betriebstemperatur
0 - 40 °C
Temperaturbereich bei Lagerung
-20 - 60 °C

Gewicht und Abmessungen

Breite
480,6 mm
Höhe
477 mm
Tiefe
42,8 mm
Gewicht
10,1 kg

Verpackungsdaten

Paketgewicht
11,9 kg
Verpackungsbreite
612 mm
Verpackungstiefe
658 mm
Verpackungshöhe
135 mm

Logistikdaten

Nettogewicht Hauptkarton
10,1 kg
Breite des Versandkartons
612 mm
Länge des Versandkartons
658 mm
Höhe des Versandkartons
135 mm
Gewicht Versandkarton
12,6 kg
Anzahl Produkte pro Versandkarton
1 Stück(e)
