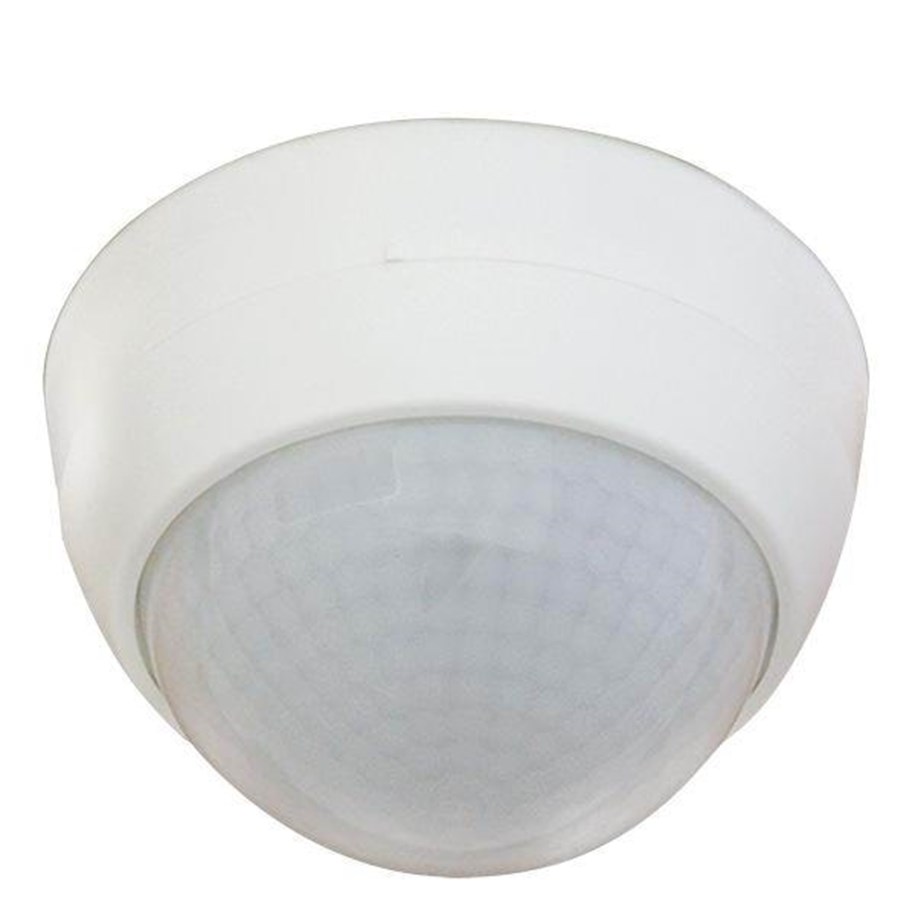

B.E.G. Occupancy detector pd4/s-sm
Product: PD4-S-P (92142) Presence detector LUXOMAT® PD4-S, Slave and the range for mounting in fixed ceiling or PL can. Large energy savings potential especially in large spaces and in monitoring of large surfaces. It requires only a Master of ignition of light and ventilation. Possibility of detection of movement in all local segments with slaves pulse signal to the Master of detected movement. Detection of movement independent of the ambient brightness. Application examples: monitoring of large redundant surfaces, for example. parking garages, gyms, warehouses, loading ramps, halls etc. Power supply voltage: 230V ~ ± 10%. Detection range: 360 °. Range (around) m: - sitting Ø 6.40 m - across Ø 24.00 m - head Ø 8.00 m Protection: IP20 / Class II / CE. Dimensions: Ø 97 x H 103 mm. Ambient temperature: -25 ° C to + 50 ° C Housing: UV-resistant polycarbonate high-quality. Pulse function: Pulse spacing 2 sec. or 9 sec. Slave output Slave device: 230 V. Power consumption:> 0.5W.
